Eaton's general purpose ventilated and encapsulated dry-type transformers are of the two-winding type, self-cooled and are available in a wide variety of primary and secondary voltage combinations. General purpose transformers are designed, manufactured and tested in accordance with all of the latest applicable ANSI, NEMA and IEEE standards and are designed for continuous operation at rated kVA.

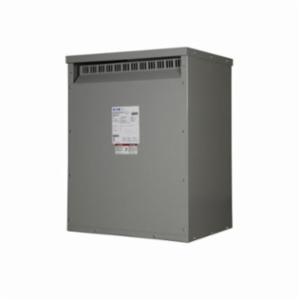

Cutler-Hammer Distribution Transformer, Type DT-3 Dry, 208 VAC Primary, 480Y/277 VAC Secondary, 15 kVA, 60 Hz, 3, 2/4 Taps, 150 deg C, 16.5 in L x 23 in W x 30 in H

• IDW ITEM DOCUMENTS https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1503488148916.pdf

• Primary taps allow compensation for source voltage variations
• Transformer core is constructed using high-grade, non-aging, silicon steel to provide high magnetic permeability
• Maximum magnetic flux densities are substantially below the saturation point, allowing for more efficient operation
• All insulation materials are flame-retardant and do not support combustion for added safety
• Core and coil assembly is impregnated with non-hygroscopic, thermosetting varnish and cured to reduce hot spots and seal out moisture
• Audible sound levels are lower than IEEE requirements when properly installed
• Aluminum windings coil material
• 912B frame
• WS38 weathershield
• 2 at +2.5% FCAN, 4 at -2.5% FCBN full capacity taps
