Eaton’s CH 3/4-inch loadcenters enclose CH circuit breakers for power distribution and circuit protection in residential and light commercial applications. Also called a breaker box, electrical box or even a fuse box, the main function is to take electricity supplied by the utility and distribute it throughout the home to feed lights and receptacles. Covers are typically packaged separately and available as surface or flush mount.

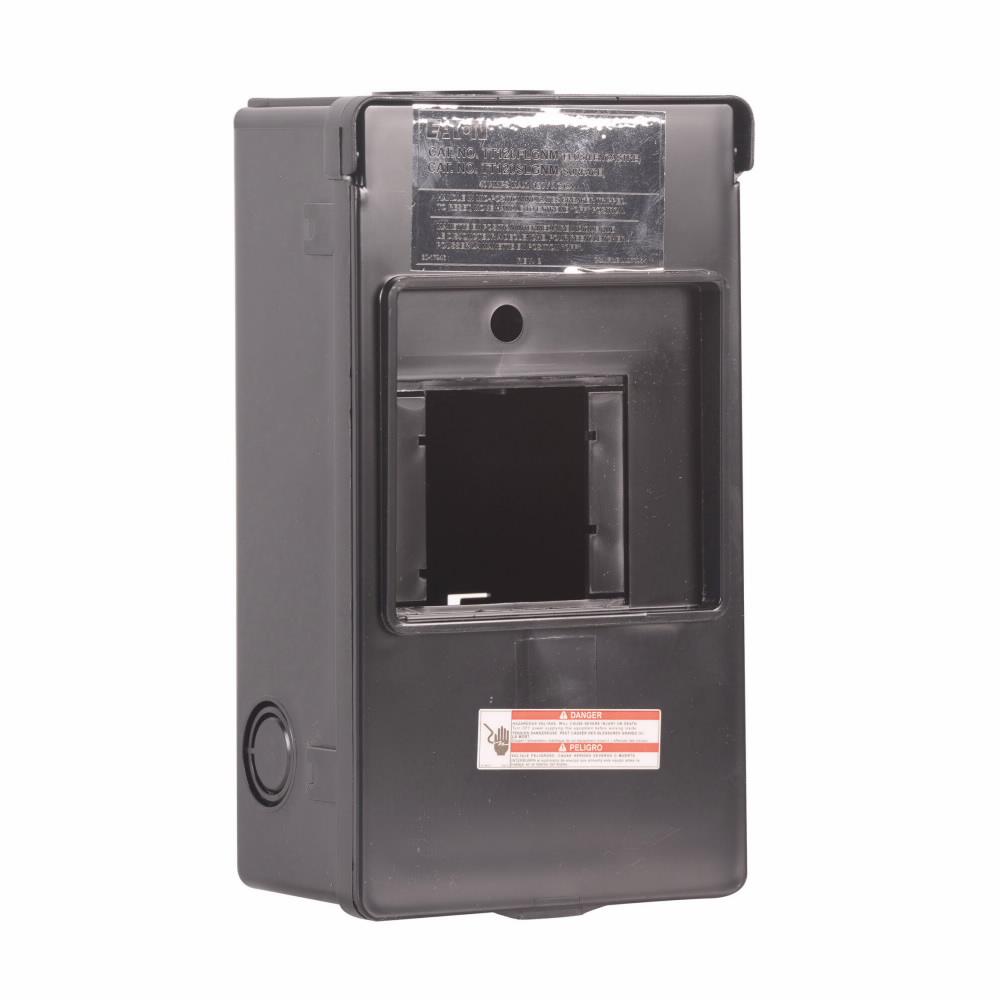

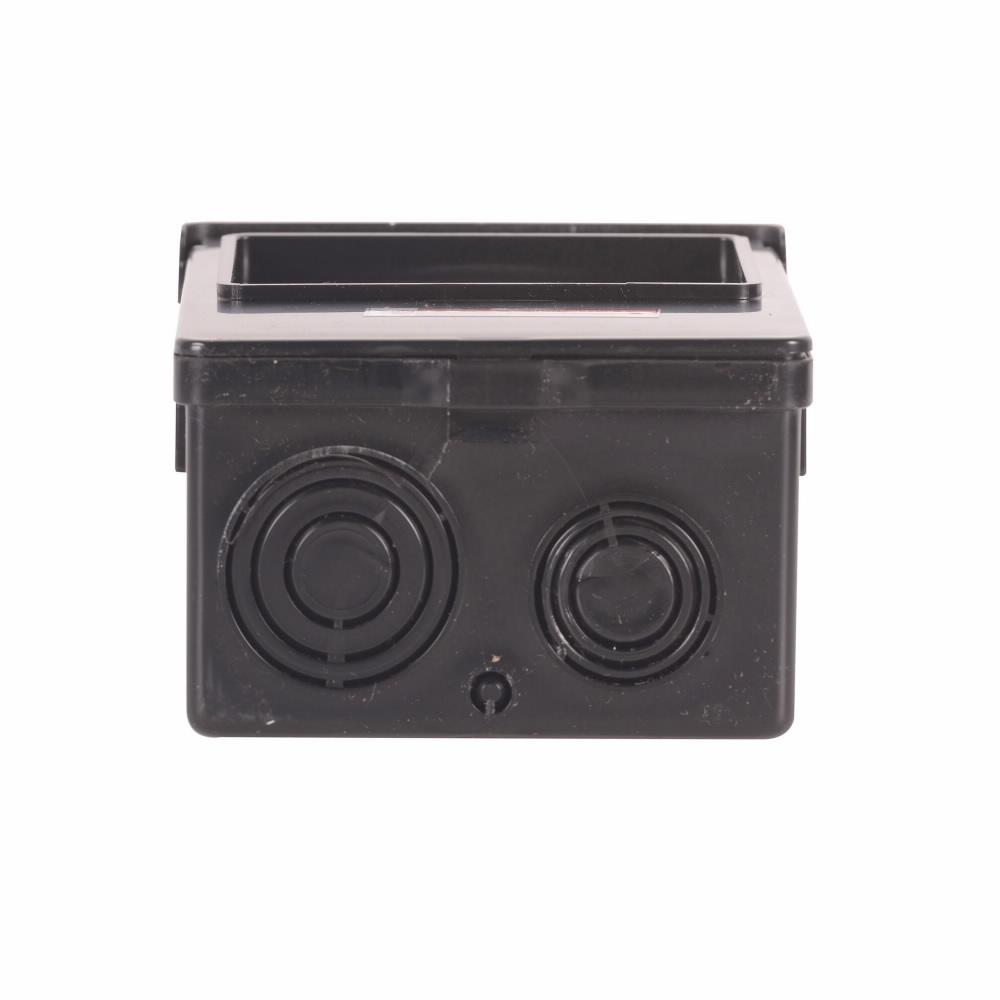

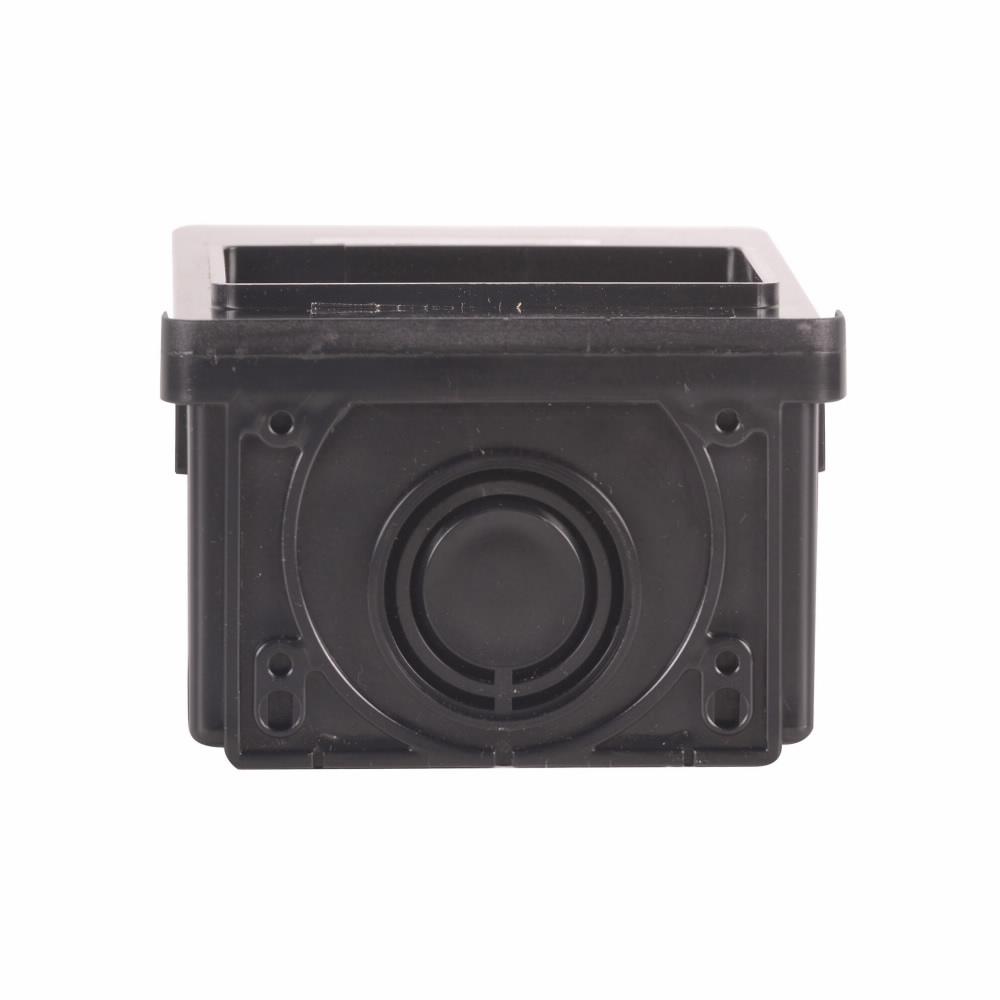

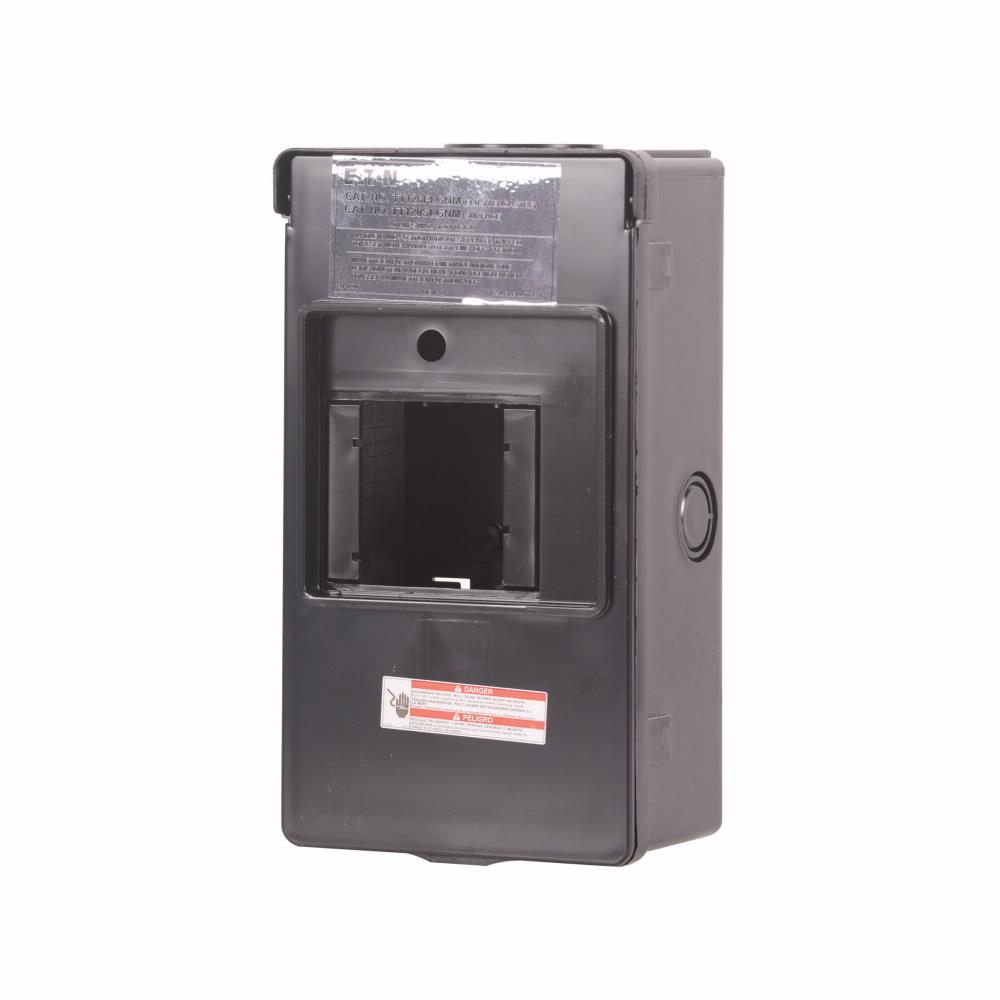

EATON Main Lug Load Center, 1-Phase Insulated/Bondable, 120/240 VAC, 40 A, 10 kA Interrupt, 5 Circuits, CH Breaker, 3-Wire Wiring Configuration, 2 Spaces, Surface Mounting, NEMA 1 Enclosure, NEMA 2 Enclosure Box, 10 in L x 6 in W x 3-1/2 in H Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/CMBE22P125BTFR_Catalog.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/CMBE22P125BTFR_Catalog.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/CHF230_User_Manual_01.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/CHF230_User_Manual_01.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/TT120SLGNM_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/TT120SLGNM_Specification_Sheet.pdf
• VIDEO LINK https://www.youtube.com/watch?v=1Z5-U-A4frU

• One-piece silver flash plated copper bus provides superior conductivity throughout the entire product line
• Steel backpan provides positive, reliable mounting
• CH 150 to 225 a main breakers are rated 25 kA providing contractors with the highest interrupting rating main breaker in the industry
• Unique sandalwood finish provides an esthetically appealing, scratch resistant powder-coating
• Type CH breakers include an industry exclusive "trip to Off" feature that allows a homeowner to easily identify a tripped circuit breaker
• New mechanical flag feature on CH breakers for easy trip indication
