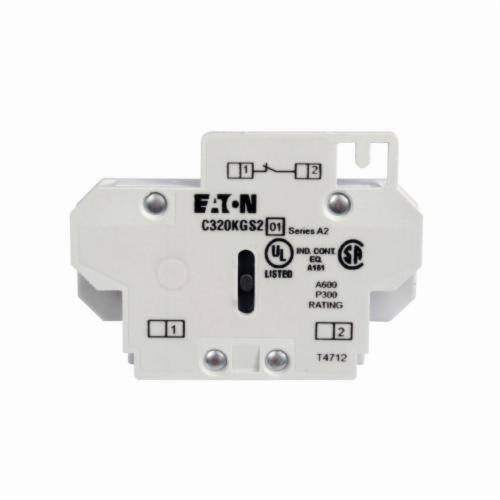

Cutler-Hammer C320KGS2

Share Print

Cutler-Hammer Freedom Auxiliary Contact, 120/600 VAC, 10 to 60 A, 1NC Contacts

  • MPN: C320KGS2

  • IESPN: 121857

  • UPC: 78211341349

  • Min Order Qty: 1

  • Quantity Interval: 1

    • Availability: loading

    • Branch Availability
Cutler-Hammer C320KGS2

Cutler-Hammer Auxiliary Contact, Series: Freedom, 120/600 VAC, 10 to 60 A, 1NC Contacts, NEMA 0 to 2/IEC A to K, 2 Maximum Contact Block, Side Mount, For Use With: Starters and Contactors, 4 in L x 2.5 in W x 1.1 in H

Series      Freedom
Voltage Rating      120/600 VAC
Amperage Rating      10 to 60 A
Number of Contacts      1NC
Size      NEMA 0 to 2/IEC A to K
Maximum Contact Block      2
Mounting Type      Side
Suitable For Use With      Starters and Contactors
Dimensions      4 in L x 2.5 in W x 1.1 in H
Warranty      1 Year
  • pdfCatalog https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/Cutler_Hammer_2018A40G03_Catalog.pdf
  • pdfSpecification Sheet-1 https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/Cutler_Hammer_C320KGS2_Datasheet.pdf
  • videoVideo Link https://www.youtube.com/watch?v=Pe9a1PmqYoU
  • 1NC contact configuration
