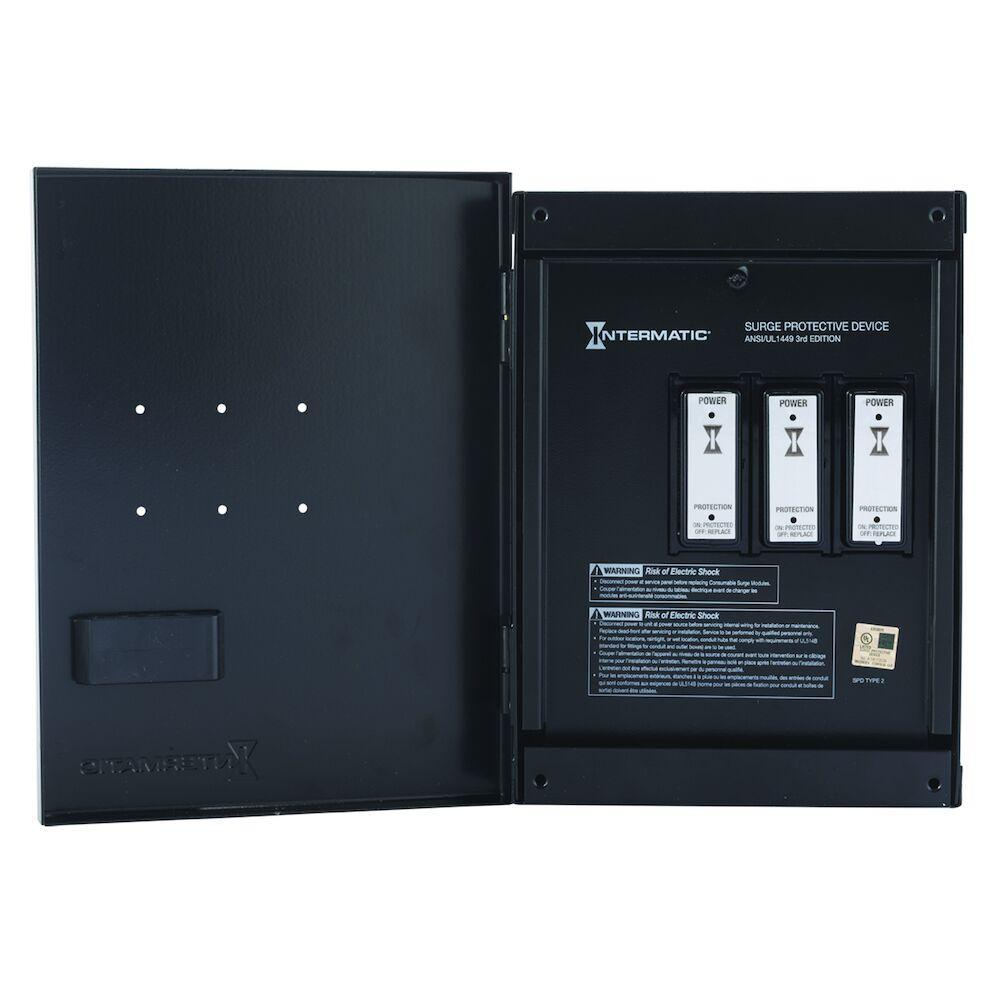

Intermatic's SMART GUARD® provides coverage of your customer’s big investment equipment, from appliances and computers to HVAC equipment and TVs. This innovative Surge Protective Device uses IMODULE® with LED lights for quick and easy status indication. A blue light indicates the Surge Protective Device unit is ON and a green light indicates surge protection is active. Trusted, state-of-the-art TPMOV® (Thermally Protected Metal Oxide Varistor) surge protection technology eliminates the potentially hazardous failure modes that are commonly associated with standard MOV technology. Type 1 applications include outdoor installations before service entrances and utility meter cabinets. Type 2 applications include installations after service entrances. UL Listed to ANSI/UL 1449, 4th Edition.

Intermatic® Surge Protective Device, Rainproof, Series: IG2200, 120 to 240 VAC Electrical Rating, 50/60 Hz Frequency, 100 kA Short Circuit, 20 kA Nominal Discharge, Modes of Protection: L1-N/L2-N/L1-G/L2-G/N-G/L1-L2, LED Indicator, 1 ph, Environmental Conditions: -35 to 85 deg C, NEMA 1 Enclosure, Flush Mounting, Lead Wire Terminal, Steel

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Intermatic_IG2280-IM_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Intermatic_IG2280-IM_Specification_Sheet.pdf

• IMODULES replace quickly and easily, eliminating the need to install a new SPD unit
• Tamper-proof IMODULE doors, will only open when IMODULE is being inserted
