Leviton® current transformers (CTs) support our full line of VerifEye™ revenue grade meters and help meet all measurement and verification based opportunities including smart metering and LEED rating achievement. Designed as part of a simple and effective process for accurately capturing measurements of power consumption, CTs are easy to specify and install for new construction and retrofits. The better the equipment, the better the measurement. Leviton® meters utilize highly accurate current transformers for revenue grade performance certified to ANSI standards. Competing products use current sensors that do not provide the same level of performance. CTs come as solid core standard for high quality, long-term accuracy and reliability. Solid core CTs deliver +/-0.3% accuracy. Split core and Rogowki coil CTs deliver +/-1% accuracy. For added safety, all Leviton® current transformers come with built-in voltage suppression devices that prevent hazardous voltages from developing on CT secondary's should they become disconnected from a meter with load current present. Leviton® CTs are UL and cUL listed devices.

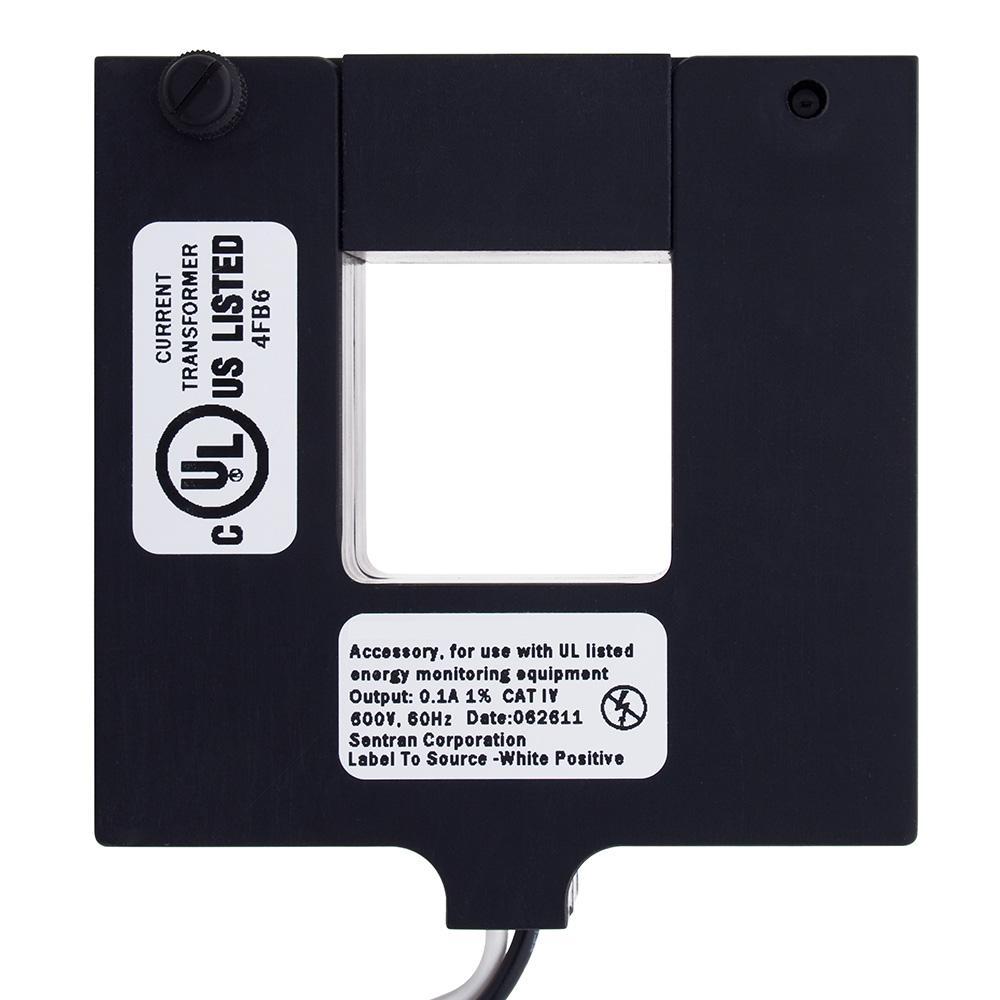

Leviton® VerifEye™ Current Transformer, Solid Core Sub-Metering, 800:0.1 Current Ratio, 800 A Primary Current, 0.1 A Secondary Current, 0.1 % Accuracy, 3.5 in ID x 5.39 in L x 1.25 in W x 3 in H Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_ac7ef9962473b85b503b4e7495cf657a097d76e9ddf46a066c23ab66ebca71f6.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_ac7ef9962473b85b503b4e7495cf657a097d76e9ddf46a066c23ab66ebca71f6.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_CTC08-K46_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_CTC08-K46_Specification_Sheet.pdf

• Split core current transformers can be disassembled or split in to halves eliminating the need to turn power off and open the circuit during installation
• This time-saving installation is ideal for critical loads that cannot be disconnected
• Solid core current transformers are cost-effective and less susceptible to damage during installation
• The current transformer secondary wires connect to the meter facilitating power
• Solid core current transformers slip over power lines to measure the electrical current flowing through the line
