Eaton's series C molded case circuit breakers are used in panel board, switchboard, motor control center and busway applications for dependable branch circuit protection. They have proven user acceptance for over 20 years and meet or exceed North American standards. Available for systems up to 600 VAC or 250 VDC with current ratings up to 2500 A.

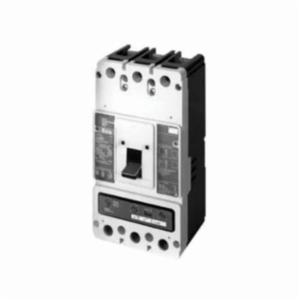

Cutler-Hammer Molded Case Circuit Breaker, Type CKD, Series: C Series, 600 VAC/250 VDC, 400 A, 50/60 Hz, 35 kA at 480 VAC Interrupt, K Frame, Electronic/Interchangeable Trip, 3 Pole, 40 deg C, 6 in L x 15 in W x 24 in H

• Catalog https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/Cutler_Hammer_1376D96G02_Catalog.pdf
• Installation Instructions https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/Cutler_Hammer_CHKD3400F_Installation_Sheet.pdf
• Specification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/Cutler_Hammer_CKD3400F_Data_Sheet.pdf
• Video Link http://videos.eaton.com/detail/videos/circuit-protection/video/3629323087001/series-c-circuit-breakers-laser-marker?autoStart=true&page=1

• Patented contact design features high speed "blow open" action, resulting in superior performance
• Suitable for reverse feed application
• All Eaton's K-Frame circuit breakers are HACR rated
• 100% rated
