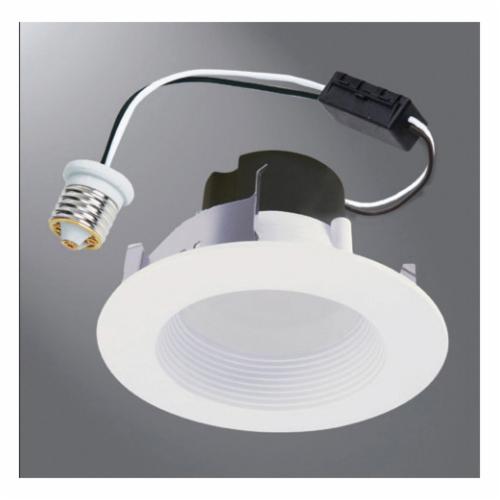

The Halo® RL4 series is a retrofit LED baffle-trim module for 4 in aperture recessed downlights. The RL4 is designed for use with compatible 4 in housings. The RL4 integral LED driver is dimmable at 120 V. The RL4 lens provides uniform illumination and wet location listing. Precision construction makes any housing Air-Tite™ for added HVAC savings and code compliance. Compliant with NFPA® 70, NEC section 410.16 (A)(1) and 410.16 (C)(3).

Halo Retrofit LED Module, All Purpose Adjustable Gimbal Dimmable, Series: RL4, 120 VAC, 7.3 W Fixture, 0.075 to 0.0875 A, Driver-On-Board Electronic, LED Lamp, 40/50/60 W Lamp, E26 Medium Screw Lamp Base, 4 in Ceiling Opening, Baffle Recessed Trim, 50000 hr Average Life, Matte White Light, 3500 K Color, 80 CRI, LED Driver Ballast, Diffusing/Regressed Lens, 611 Lumens, Recessed Mount, Aluminum Housing, 6 in L x 6 in W x 4-1/4 in H

• Brochure https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/Halo_RA406930NFLWH_Brochure_1.pdf
• Brochure https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1515128152610.pdf
• Brochure https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://www.ideadigitalcontent.com/files/11143/ID-BRO-v1-halo-retrofit-takeone-br518002en-bro.pdf
• Installation Instructions https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1515127798468.pdf
• Installation Instructions https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://www.ideadigitalcontent.com/files/11143/ID-INS-v1-halo-rl4-ib518008en-ins.pdf
• Specification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/Halo_RL460SN827PK_Specification_Sheet.pdf
• Specification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1515127228608.pdf
• Specification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1537661867948.pdf
• Specification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://www.ideadigitalcontent.com/files/11143/ID-SPE-v1-halo-td518011en-rl4-sss.pdf
• Specification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://www.ideadigitalcontent.com/files/11143/ID-SPE-v2-halo-td518011en-rl4-sss.pdf
• Warranty https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1511873502812.pdf
• Warranty https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/http://www.ideadigitalcontent.com/files/11143/StockGuide_Warranty_Page.pdf

• Push-N-Twist universal installation clips
• Use with Halo 4 in LED housings new construction and remodel
• Compatible with most 4 in recessed housings
• Dimmable to 5% with select dimmers
• Damp and wet location listed
