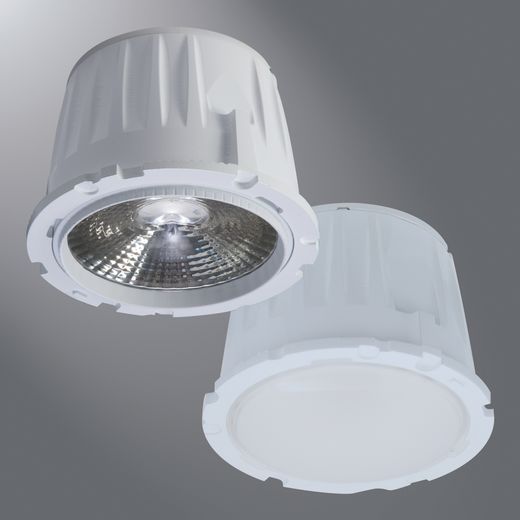

The Halo® ML56 LED downlighting system is a series of modular LED light modules for use with designated 5 in or 6 in ML56 LED trims in new construction, remodel and retrofit installation. Compatible with Halo 5 in H550 and 6 in H750, H2750 series LED housings. And in retrofit of existing housings the ML56 series fits 5 in or 6 in Halo, All-Pro® and others. ML56 system offers shallow trims for installation in Halo, All-Pro® and others shallow housings. ML56 light modules are offered in 600 series, 900 series and 1200 series, 80 CRI or 90 CRI and four color temperatures 2700 K, 3000 K, 3500 K, 4000 K. ML56 light modules are universal voltage 120 V 277 V and dimmable at 120 V. The ML56 lens provides uniform diffuse illumination standard.

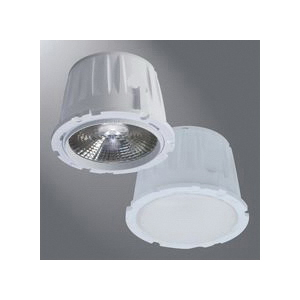

Halo LED Module, Universal, Series: 1200 ML56, 120 to 277 VAC, 17.5 W Fixture, 0.14/0.07 A, LED Lamp, E26 Medium Screw Lamp Base, 5, 6 in Ceiling Opening, Baffle/Shallow Recessed Trim, 50000 hr Average Life, 3000 K Color, 80 CRI, LED Driver Ballast, Convex Glass Lens, 1200 Lumens, Recessed Mount, Die Cast Aluminum Housing, 6.938 in L x 6.375 in W x 6.125 in H

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1515128525002.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1515128525002.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1511873502812.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1511873502812.pdf

• Designed for interchangeable trim choices of 5 or 6 in LED trims
• Dimmable on 120 VAC phase control dimmers
• UNV integral, thermally protected electronic LED driver
• A tight chromaticity specification ensures LED color uniformity, sustainable color rendering index (CRI) and correlated color temperature (CCT) over the useful life of the LED
• Impact resistant polycarbonate, high lumen transmission
• Diffusing lens for uniform illumination
