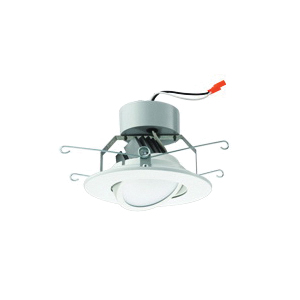

Lithonia Lighting® 5G1MW-LED-M6

Lithonia Lighting® 5G1MW-LED-M6 Dimmable IC/Non-IC Retrofit LED Module, LED Lamp, 120 VAC, Aluminum Housing

  • MPN: 5G1MW-LED-M6

  • IESPN: 216857

  • UPC: 753573720232

  • Min Order Qty: 1

  • Quantity Interval: 1

    • Availability: loading

    • Branch Availability
Lithonia Lighting® 5G1MW-LED-M6

Lithonia Lighting® Retrofit LED Module, Dimmable IC/Non-IC, Series: 5G1, 120 VAC, LED Lamp, 7.9 W Lamp, E26 Lamp Base, 1 Lamps, Gimbal Recessed Trim, 35000 hr Average Life, Matte White Light, 3000 K Color Temperature, 85 CRI, Diffused Glass Lens, 435 Lumens, Ceiling Mounting, Aluminum Housing Material, 5-1/4 in H x 3-7/8 in W Dimensions

Type      Dimmable IC/Non-IC
Series      5G1
Voltage Rating      120 VAC
Lamp Type      LED
Lamp Wattage      7.9 W
Lamp Base Type      E26
Number of Lamps      1
Recessed Trim Type      Gimbal
Average Life      35000 hr
Light Color      Matte White
Color Temperature      3000 K
Color Rendering Index (CRI)      85
Lens Type      Diffused Glass
Lumens      435 Lumens
Mounting Type      Ceiling
Housing Material      Aluminum
Dimensions      5-1/4 in H x 3-7/8 in W
  • The adjustable LED gimbal downlighting module is 80% more efficient than incandescent luminaries, performing for 35000 hr or more with exceptional energy efficiency and near zero maintenance
  • Multiple trim finish options are available to pick the style that matches the decor for any office or home
  • The LED gimbal is intended for sloped ceiling applications, grazing textured surfaces, wall washing, and highlighting artwork or other architectural features
  • Retrofits into most existing recessed downlighting installations or new construction and remodel applications
  • Spun steel gimbal reflectors with 180 deg of rotation and at least 35 deg of adjustable tilt in both directions
  • Driver affixed to a static yoke to allow maximization of LED light engine rotation and pivot movements
  • Diffused lens at end of mixing chamber to provide even light distribution for general illumination, equivalent to 50W incandescent flood lamp
  • Wide flood beam angle at >90 deg CRI >90 equivalent to 50 W incandescent
  • The LED module maintains at least 70% light output for 35000 hr
  • Primary power disconnect provided for simple connection to a dedicated LED connector in the housing
  • Dimming down to 15%
  • Suitable for installation in standard-height rough-in sections
  • E26 socket adapter and splice kit ships standard
  • This enables easy installation or permanent conversion to an LED source for title 24 compliance
  • Includes three friction clips to ensure easy installation
