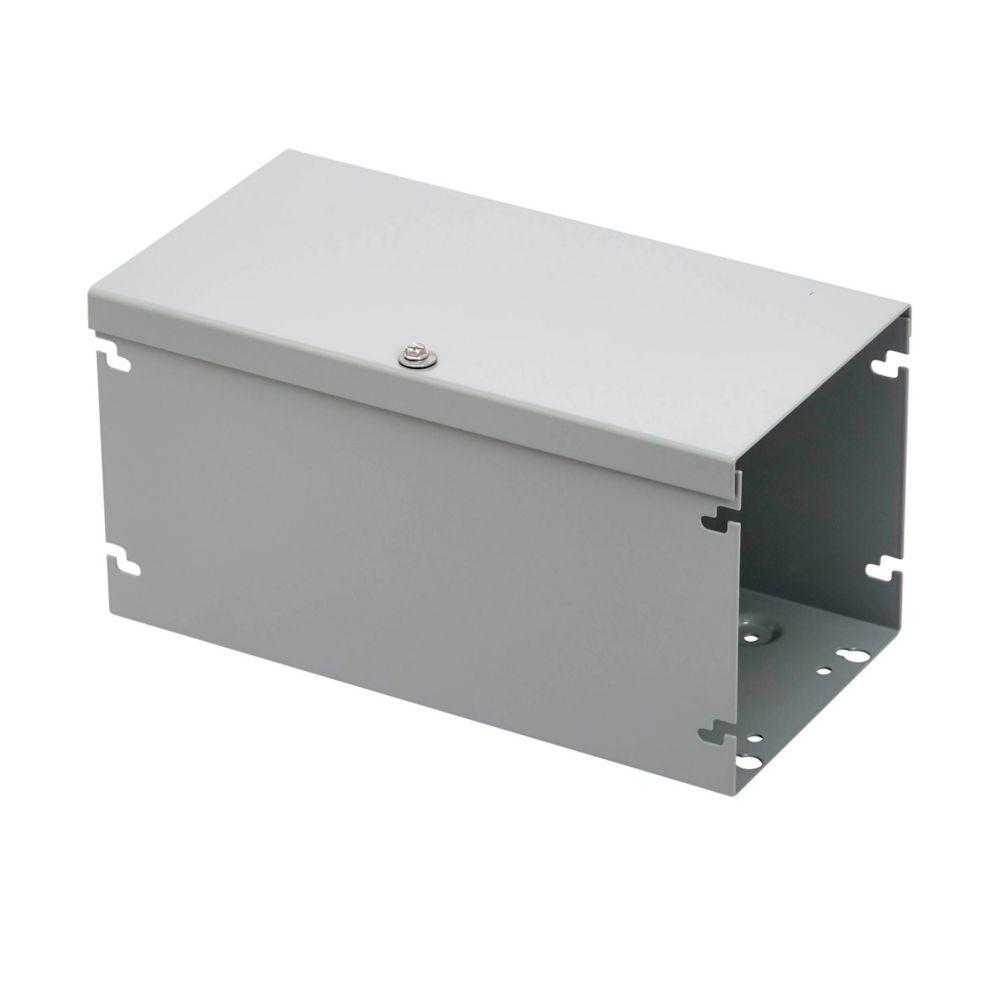

B-Line EnviroShield™ Wireway, Through Hole, Series: 3RHS NK, 120 in Length, 4 in Width, 4 in Height, Hinged Cover, NEMA 3R/IP32 NEMA Rating, Steel, Gray, Galvanneal

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/44120_HS_Catalog.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/44120_HS_Catalog.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/B-Line_44120-3RHS_NK_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/B-Line_44120-3RHS_NK_Specification_Sheet.pdf

• Wireway body and cover are fabricated from code gauge steel or brushed aluminum
• Wireway body has embossed mounting holes on the back
• Cover is secured to the body with gasketed retaining screw
• Variety of fitting allow runs which can change direction, size, junction and terminate, as well as, expansion and contraction
• Wireway connector (sold separately) have a gate feature which can swing completely open allowing for lay-in of wire and cable
• Wireway connector have a locking feature for optional pad locking
• Removable hinge cover construction
• Z-slots for quick-connect connection method
• Wireways 120 in L has two overlapping covers
• Galvannealed steel with ANSI 61 gray acrylic electro coat finish and zinc plated hardware
• Aluminum with stainless steel hardware
• RHS subclass
• Without knockout
