GE Transformer, Type QL Dry Standard Vented, Series: 9T10A, 480 VAC Primary, 208Y/120 VAC Secondary, 75 kVA, 60 Hz, 3, UY74A Frame, NEMA 2 Enclosure, 40 deg C, DOE 2016 Efficiency, 31.8 in W x 24 in D x 35.7 in H

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/GE_9T10A1004G31_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/GE_9T10A1004G31_Specification_Sheet.pdf

• Quiet performance
• Outward facing mounting feet
• Core and coil assemblies are mounted on rubber isolation pads to reduce noise
• Bolted coil terminations
• 1-piece front/back is easily removable for service
• NEMA 2 drip proof enclosure is standard, weather shield kits are available for conversion to NEMA 3R outdoor configuration
• Aluminum or copper windings and utilize a UL recognized 220 deg C insulation system
• Copper ground strap

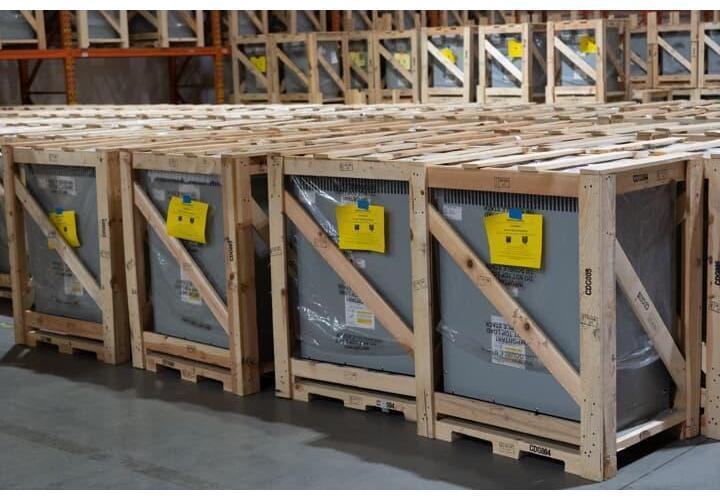

• Robust packaging with top and side protection protects against shipping damage
• Accessible mounting flanges with front/back slotted mounting holes make installation easier
• 100% factory tested for shorts and coil integrity current and loss impedance and noise voltage
• Clear comprehensive documentation and labeling
• 6.1 % impedance
• Aluminum coil material
• +2, -4 2.5% taps
• 115 deg C temperature rise
• K1 K-factor
