Eaton’s BR circuit breakers are used in indoor and outdoor BR loadcenters, spa panels, meter breakers and sub panels. They are designed for a wide range of applications such as high short-circuit interrupt, series rating combinations with upstream main breakers, thermal magnetic, AFCI, GFCI, equipment protection and dual function AF/GF.

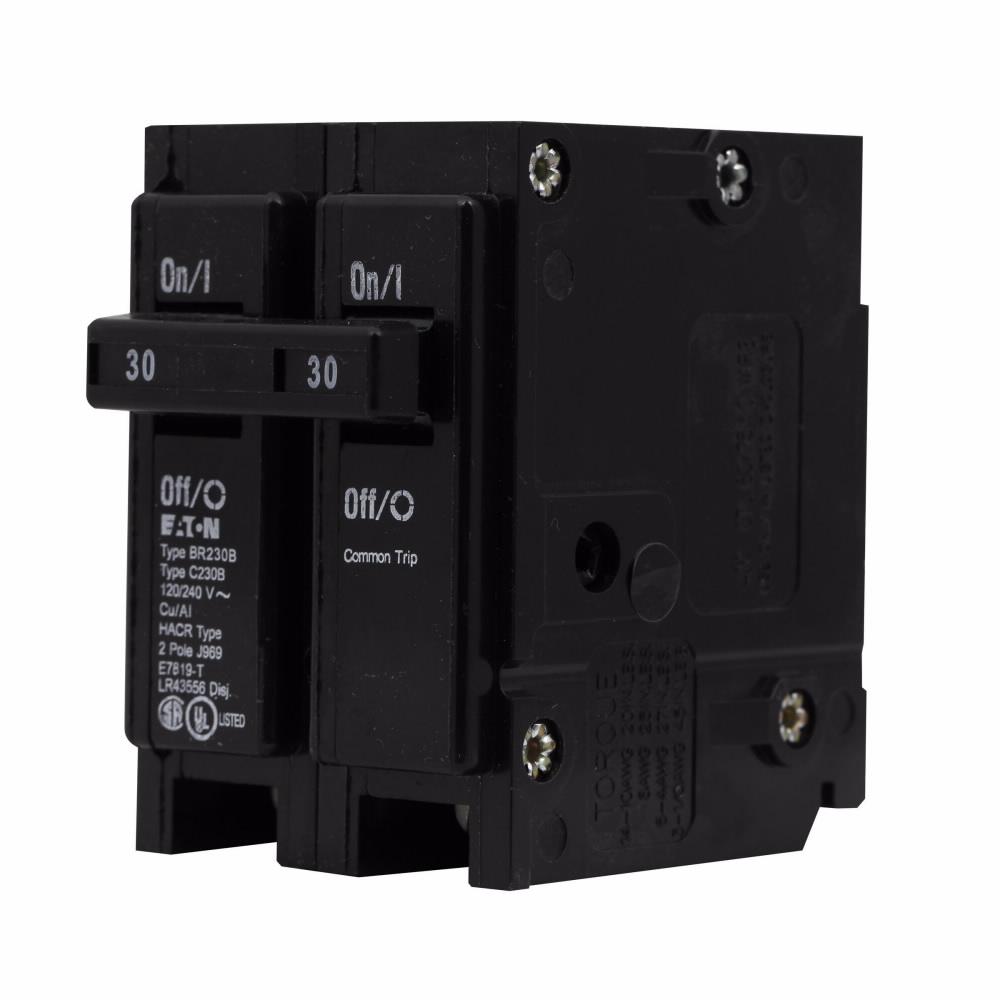

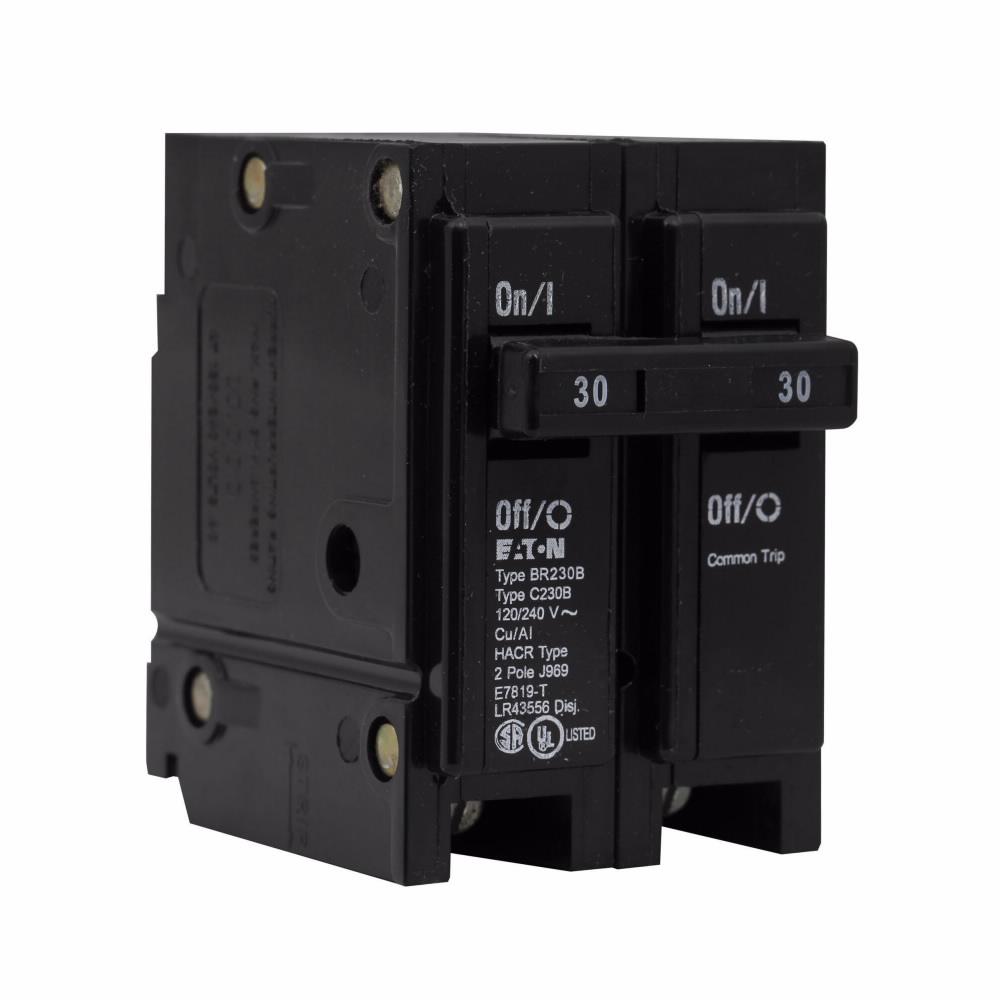

EATON Thermal Magnetic Circuit Breaker, Type BR, 120/240 VAC, 30 A, 60 Hz, 10 kAIC Interrupt, 2 Pole, 1 ph, Toggle Handle Actuator, Box Lug/Clamp, 14 to 4 AWG Copper/Aluminum Wire, Plug-On Mount, 40 deg C, 3 in L x 2 in W x 3 in H, Thermoset

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/CMBE22P125BTFR_Catalog.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/CMBE22P125BTFR_Catalog.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/CHF230_User_Manual_01.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/CHF230_User_Manual_01.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/BR230B_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/BR230B_Specification_Sheet.pdf

• All terminals shall be listed for use with copper or aluminum conductors
• All are type IC (interchangeable) devices, several ratings are SWD and HARC approved
• The circuit breaker calibration shall not be affected by environmental changes in relative humidity
• All circuit breakers shall be operated by a toggle type handle and multipole circuit breakers shall have an internal common trip mechanism
• Contacts shall be of non-welding silver alloy
• All circuit breakers shall have the trip rating inscribed on the handle on each circuit breaker pole
• Circuit breakers shall be completely enclosed in a molded case of thermoset material
• Terminals shall be of the box lug or clamp type design
• The terminals shall meet UL 486B requirements and shall be suitable for use with either 60 or 75 deg C wire
• Tapped molded opening, special application
