Standard and illuminated pushbuttons and selector switches are available as both key and conventional operators. The CR104P line also includes push to test and standard pilot lights, mushroom head pushbuttons , joysticks and push-pull and push-push operators. Chrome plated octagonal mounting rings project an attractive, high quality appearance. Positive feel selector switches offer a quality touch in all illuminated and non-illuminated, maintained and spring return units.

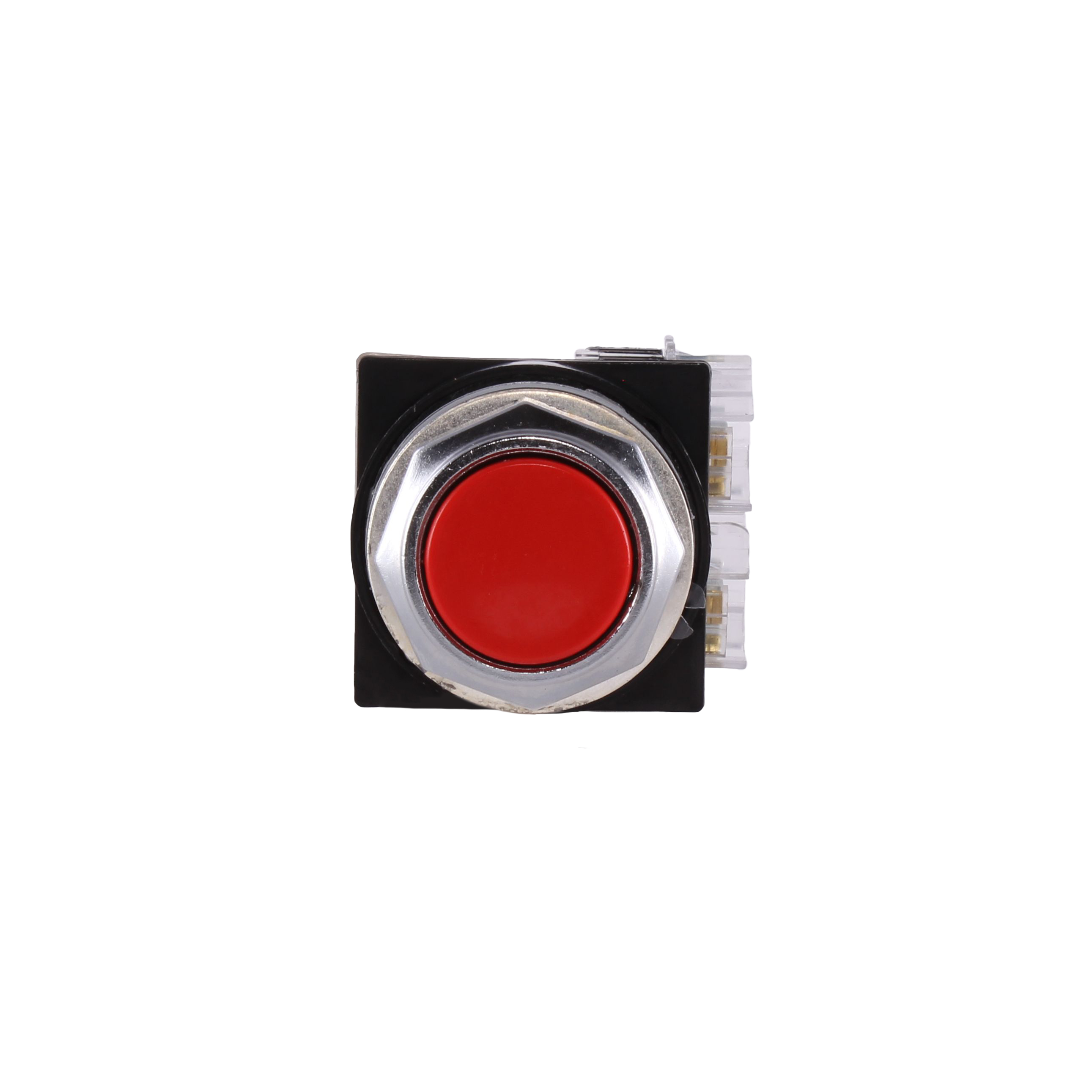

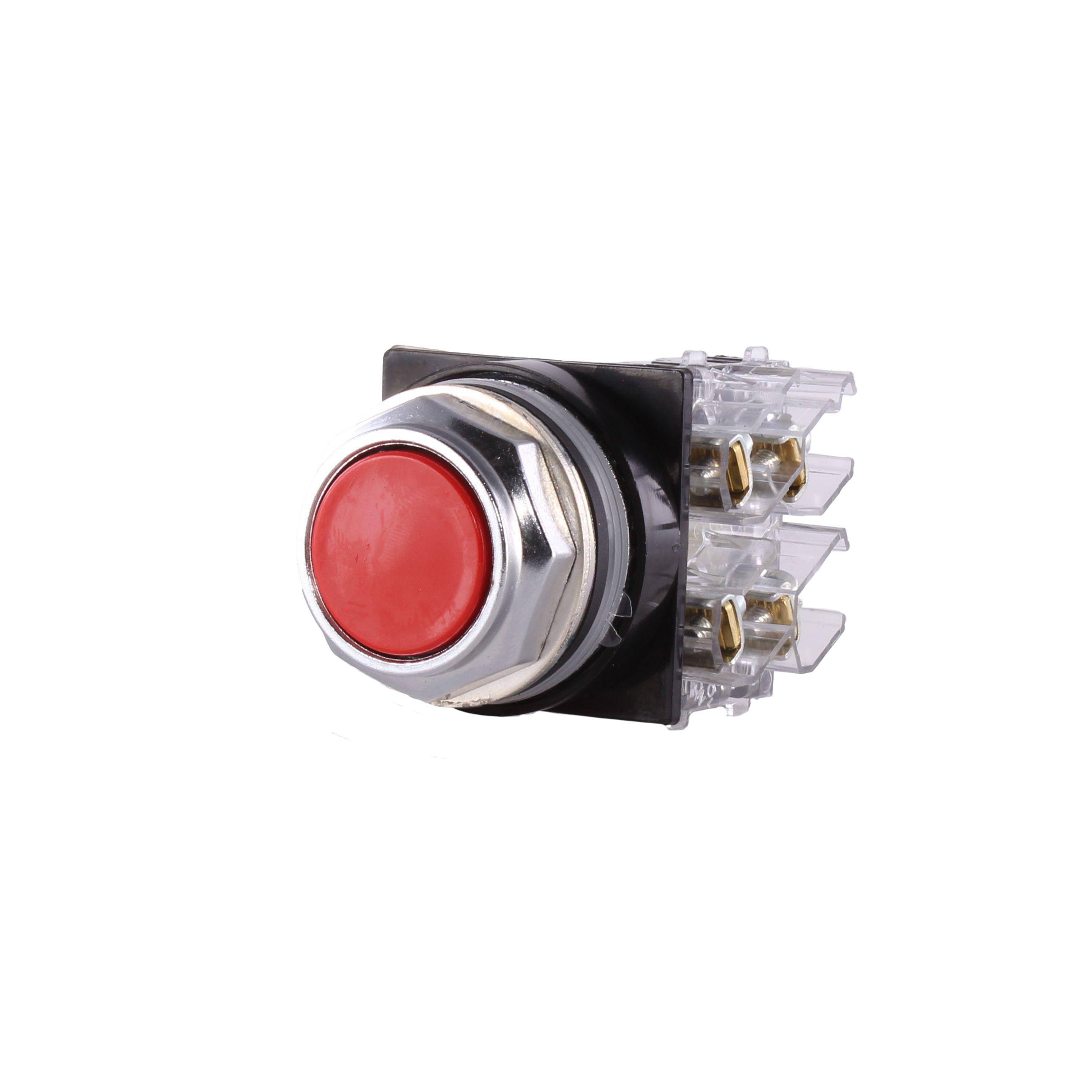

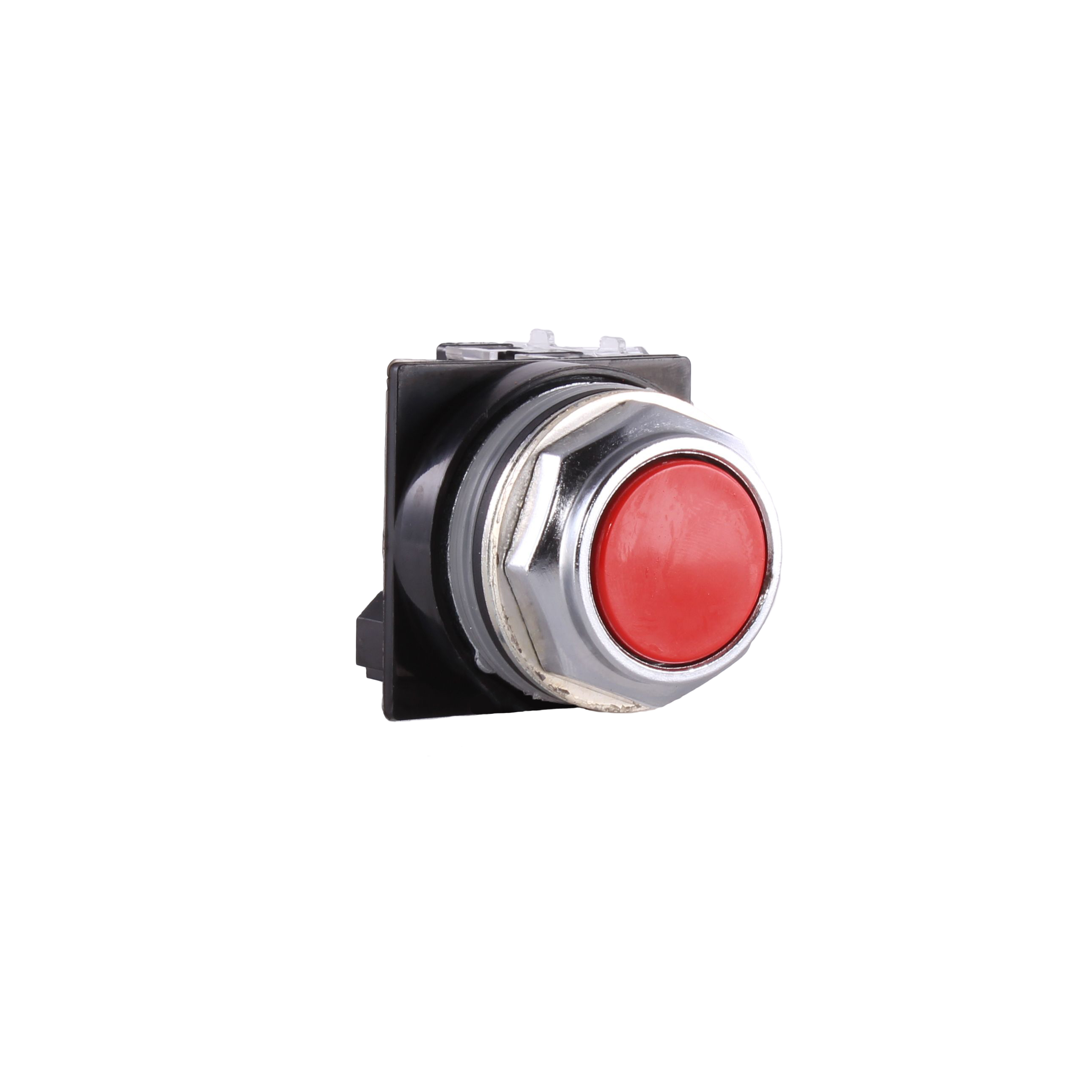

GE Non-Illuminated Pushbutton, Heavy Duty Oiltight/Watertight Standard, Series: CR104P, 30.5 mm Size, 1NO-1NC Contact Configuration, Momentary Contact Mode, 10 A at 600 VAC Contact, Bezel/Housing: Chromium Plated Zinc Ingot, Button/Flush Actuator, Screw Terminal, NEMA 1/3/3R/4/4X/12/13 Enclosure, Nylon, Red, Environmental Conditions: -13 to 158 deg F Operating Temperature

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/GE_CR104PBL11A1S8_Catalog.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/GE_CR104PBL11A1S8_Catalog.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_79718df9172009bff07562fc4a2c3158ec74ed943a742e2b40df1604ed4a306d.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_79718df9172009bff07562fc4a2c3158ec74ed943a742e2b40df1604ed4a306d.pdf

• Suitable for use in NEMA 1/3/3R/4/4X/12/13 applications when mounted in enclosures rated for those same applications
• For some NEMA type 4X applications, protective caps will improve corrosion resistance
