The CM family of ceiling mount occupancy sensors provide a range sensor solutions for applications with finished ceilings (e.g. Ceiling tiles, sheetrock, plaster). CM family sensors utilize 100% digital Passive Infrared (PIR) detection and are available with several lens options, providing flexibility for multiple mounting height and coverage pattern requirements, Dual technology (PDT) occupancy detection can also be added as an option for applications where occupants are stationary for long periods of time.

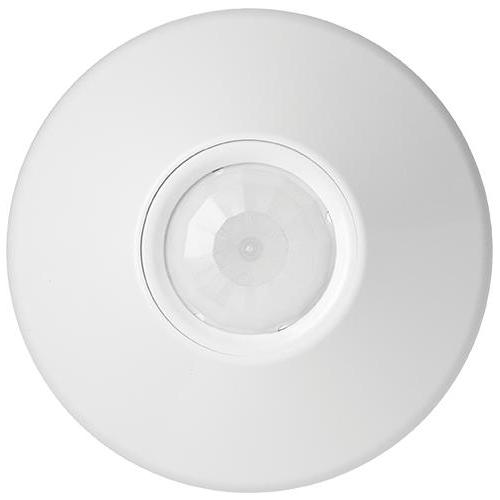

Sensor Switch™, CM PDT 10 R, Occupancy Sensor, Low Voltage, Series: CM PDT, 12 to 24 VAC/VDC, 4 to 16 mA, PDT Sensor, 12 ft Coverage, 360 deg Viewing, 30 s to 20 min Time Delay, -10 to 71 deg C, Plastic, White, 4.55 in Dia x 1.55 in D Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sensor_Switch_CM_10_Installation_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sensor_Switch_CM_10_Installation_Manual.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sensor_Switch_CM_10_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sensor_Switch_CM_10_Specification_Sheet.pdf

• Detection range improves when walking across beams compared to into beams
• 1 A at 24 VAC/VDC relay rating
• PP20 recommended power pack
• Dual technology
• Large motion 360 deg coverage pattern
• Push button programmable, adjustable time delays and multiple operating modes
• 100 hr lamp burn-in timer mode
• Convenient test mode
• Green LED indicator
• Standard temperature range and humidity
• 40 ballasts at 0.5 mA dimming load
• The Sensor Switch CM PDT 10 R large motion ceiling mount sensor combines a low voltage sensor into a low profile design, making it perfect to mount directly to a ceiling tile or metallic grid
