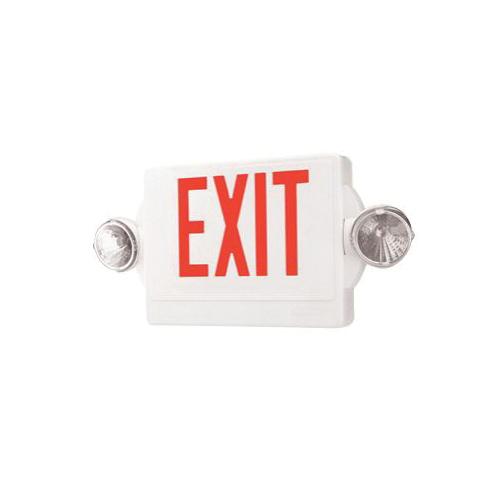

Lithonia Lighting® QUANTUM® Exit/Unit Combo Fixture, Series: LHQM, 120/277 VAC, 0.23 A, LED/Krypton Lamp, Wedge Lamp Base, 5.4 W Lamp, 2 Lamps, 2 Heads, Legend: EXIT, Red Legend, 6 in H Legend, Surface Mounting, Ni-Cd Battery Power Source, Thermoplastic Housing Material, White Housing Finish, 9-7/8 in H x 21-1/4 in W x 4-7/8 in D Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lithonia_Lighting_LHQM_S_3_R_Specification_Sheet_1.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lithonia_Lighting_LHQM_S_3_R_Specification_Sheet_1.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1518582693191.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1518582693191.pdf

• Suitable for applications requiring both exit sign and unit equipment
• Attractive, less than 10 in tall, streamlined design is great for above-the-door applications and other tight fits
• High output version with remote lamps are Ideal for outdoor emergency egress lighting
• Engineering-grade thermoplastic housing is impact-resistant, scratch-resistant and corrosion proof
• UL94V-O flame rating
• UV-stable white resin resists discoloration from natural and man-made light sources
• Rugged unibody housing snaps together with no additional fasteners
• Faceplate and back cover are interchangeable on housing
• Positive snap-fit tabs hold faceplate securely, yet are easily removable for lamp compartment access
• Universal, directional chevron inserts are easily removed and reinserted
• Two 5.4 W T5 wedge-base krypton lamps with multi-faceted reflector and acrylic lenses to provide superior optical control
• Unique swivel-and-point arrangement permits full range adjustment in lamp head direction, typical life of the exit LED lamp is 10 years, based on continuous operation
• Uniform graphics illumination without shadows or hot spots, letters 6 in high with 3/4 in stroke with 100 ft viewing distance rating, based upon UL924 standards
• Sealed, maintenance free lead-acid (SLA) battery standard delivers 90 minutes capacity to emergency lamps two-rate regulated charger minimizes energy consumption and provides low operating costs
• Low energy consumption only 3.3 W, custom microchip charger, developed by emergency systems
• Provides increased reliability and maximizes battery life, AC/LVD reset allows battery connection before AC power is applied and prevents battery damage from deep discharge
• Filtered charger output minimizes charge voltage ripple and extends battery life
• Thermal protection senses circuitry temperature and maintenance, top, end or back mounting, housing snaps to canopy with four positive-locking tabs, cam locking pin secures housing to canopy, easily removed mounting knockouts
• Conduit entry knockout for 1/2 in flexible conduit, J-box pattern on back panel, stencil face, red letter
• Stencil face
