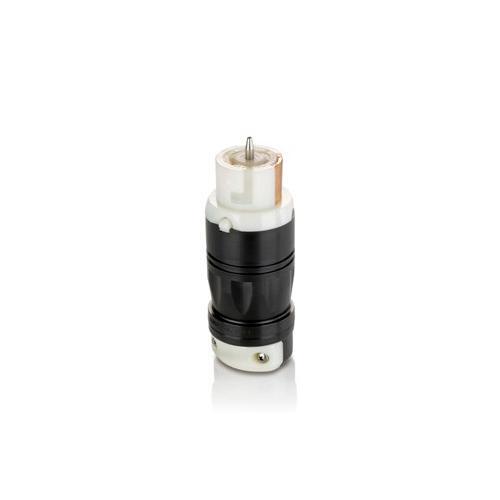

Leviton® CS8164C

Leviton® Black & White® CS8164C 3-Phase Grounding Locking Connector, 480 VAC, 50 A, 3 Poles, 4 Wires, Black/White

  • MPN: CS8164C

  • IESPN: 4509

  • UPC: 078477326350

  • Min Order Qty: 1

  • Quantity Interval: 1

  • Sold as: EACH
    • Availability: loading

    • Branch Availability
Leviton® CS8164C

Leviton® Black & White® 50 A non-NEMA line of industrial grade locking blade devices feature rugged construction that resists impact, sunlight, chemicals and rough use. All contacts and blades are solid 1-piece construction for superior conductivity. Corrosion resistant versions feature nickel plated contacts and blades, plus stainless steel shrouds and screws. The ergonomic, fluted-body design with radial gripping edge is ideal for gripping and pulling. The unique cord clamp accepts a wide range of cord sizes, providing a secure grip without damaging the cord. And, they are backed by a limited lifetime warranty.

Leviton® Black & White® Locking Connector, 3-Phase Grounding, 480 VAC, 50 A, 3 Poles, 4 Wires, Industrial Grade, 0.68 to 1.125 in Cord Dia, -40 to 75 deg C, Screw Terminal, Nylon, Black/White, 2.56 in Dia x 7.1 in H

Type      3-Phase Grounding
Voltage Rating      480 VAC
Amperage Rating      50 A
Number of Poles      3
Number of Wires      4
Grade      Industrial
Cord Diameter      0.68 to 1.125 in
Temperature Rating      -40 to 75 deg C
Terminal Type      Screw
Material      Nylon
Color      Black/White
Dimensions      2.56 in Dia x 7.1 in H
