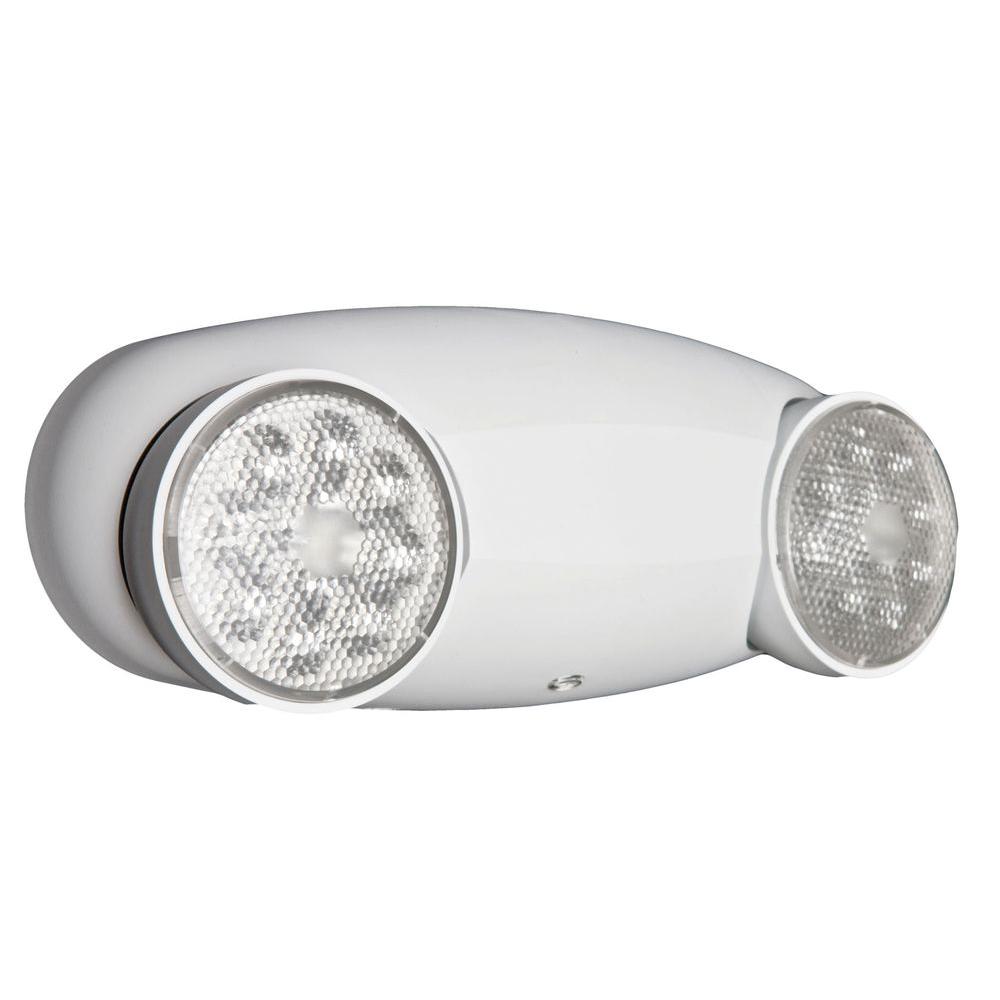

A compact, low profile emergency unit, Quantum® ELM2 LED advanced solid state technology provides excellent lumen output, superior spacing and requires little or no maintenance.

Lithonia Lighting® QUANTUM® Emergency Lighting Unit, Self-Contained, Series: ELM2, 120 to 277 VAC, 12 W Fixture, 0.04/0.03 A, Static LED Lamp, 1.5 W Lamp, 2 Heads, Fully Adjustable/Polycarbonate Lens, Ni-Cd Battery Power Source, Surface Mounting, 4-1/4 in H x 10-1/4 in W x 2-3/4 in D Dimensions, Thermoplastic, White

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lithonia_Lighting_ELM2_LED_Brochure.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lithonia_Lighting_ELM2_LED_Brochure.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lithonia_Lighting_ELM2_LED_Installation_Instructions.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lithonia_Lighting_ELM2_LED_Installation_Instructions.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_6ea45561feb782bc6d264995df19d3b0895a76f4a4d422b942f5694c1da6f71a.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_6ea45561feb782bc6d264995df19d3b0895a76f4a4d422b942f5694c1da6f71a.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_5f935439b3a1f6dc831ed9a47306380a6e0c852b96bfb2d191e3263e149499bb.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_5f935439b3a1f6dc831ed9a47306380a6e0c852b96bfb2d191e3263e149499bb.pdf

• Provides a minimum 90 min of illumination for the rated wattage upon loss of AC power
• White, compact, low profile contemporary design
• Engineering grade thermoplastic housing is impact-resistant, scratch-resistant and corrosion proof
• Two LED lamp heads with 12 parallel 3.6 VAC white LEDs in each
• The typical life of the exit LED lamp is 10 years
• Unique track and swivel arrangement permits full range of direction of lamp head adjustment, universal J-box mounting pattern, toolless access for maintenance, conduit entry position on top of unit
• UL94V-O flame rating, UV-stable resin resists discoloration from natural and man made light sources
• Low profile, integrated test switch/pilot light, easily visible bright red status indicator
• Current limiting charger maximizes battery life and minimizes energy consumption and provides low operating costs
• Short-circuit protection current limiting charger circuitry protects printed circuit board from shorts, thermal compensation adjusts charger output to provide optimum charge voltage relative to ambient temperature range
• Thermal compensation adjusts charger output to provide optimum charge voltage relative to ambient temperature range
• Regulated charge voltage maintains constant-charge voltage over a wide range of line voltages, prevents over/undercharging that shortens battery life and reduces capacity
• Filtered charger input minimizes charge voltage ripple and extends battery life
• AC/LVD reset allows battery connection before AC power is applied and prevents battery damage from deep discharge
• High output nickel cadmium battery for 6 W remote capacity
• Allows use with up to four LED lamp heads
