Eaton offers a wide variety of solutions for horizontal and vertical cable runs between racks and enclosures. All cable pathway devices are UL classified and meet or exceed TIA/ EIA standards for cable pathways.

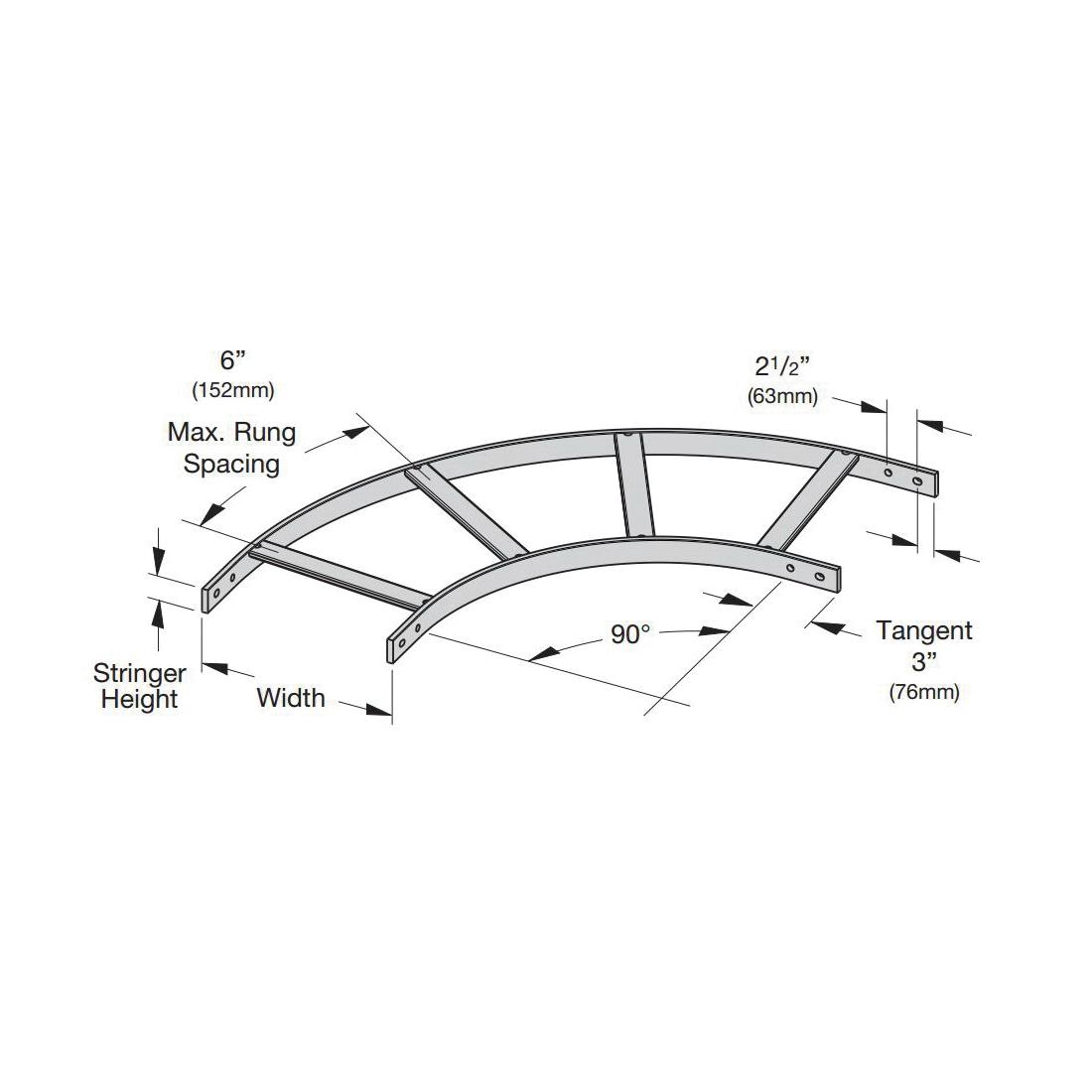

B-Line Runway Bend, Universal, 24 in Width, Horizontal Side Rail, 1-1/2 in Side Rail Height, 6 in Rung Spacing, 90 deg Bend, Surface Mounting, Structural Steel, Flat Black, Powder Coated

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/B-Line_SB2101ABZ_User_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/B-Line_SB2101ABZ_User_Manual.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/B-Line_SB17HRB24FB_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/B-Line_SB17HRB24FB_Specification_Sheet.pdf

• Made of 1-1/2 x 3/8 in ASTM A36 steel solid bar stringer and ASTM A513 grade 1008 structural steel tubing rungs
• Smooth 15 in inside radius
• Connects to runway sections using standard runway splices
• Attachment holes provided for use with SB2135 series heavy duty splice plate
• Provision for 1/4 in grounding bolt provided on each corner
• Compatible with "C"-channel, tubular and solid bar cable runway
• Designed to comply with requirements for category 5/5E/6 twisted pair and fiber optic cable bend radius
