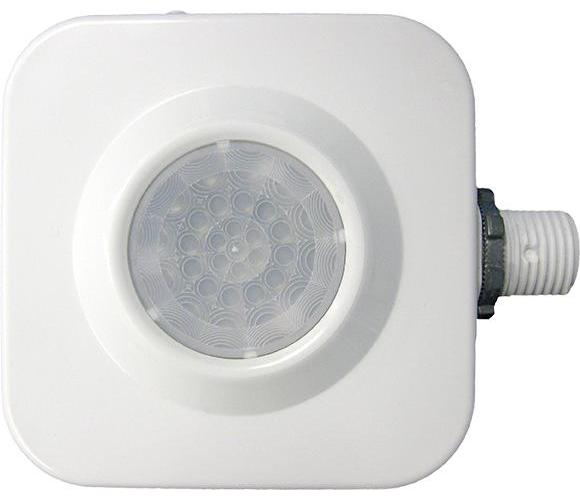

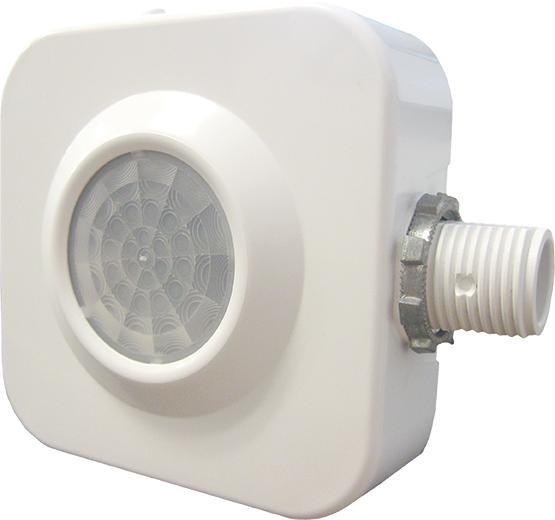

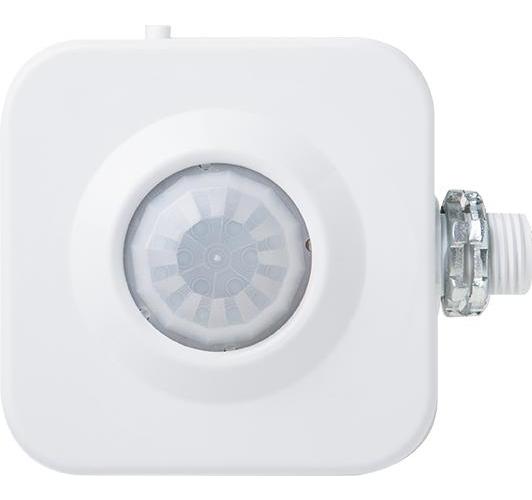

The CMRB Series Sensor incorporates the industry’s leading passive infrared (PIR) technology for excellent detection in areas with or without obstructions. The sensor protects lamp life while maximizing energy savings. Other features include push-button programming, green LED indicator, and adjustable time delays.

Sensor Switch™, CMRB 9, Occupancy Sensor, Line Voltage, Series: CMRB, 120/277 VAC, 1/4 hp Power, Passive Infrared Sensor, 360 deg Coverage, 67 deg Viewing, 30 s to 20 min Time Delay, 50/60 Hz Response, 100 % Accuracy, 14 to 160 deg F, White, 3.63 in W x 1.5 in D x 3.63 in H Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sensor_Switch_CMRB_ADC_Catalog.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sensor_Switch_CMRB_ADC_Catalog.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sensor_Switch_CMR_PDT_9_P_Installation_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sensor_Switch_CMR_PDT_9_P_Installation_Manual.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sensor_Switch_CMR_PDT_10_2P_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sensor_Switch_CMR_PDT_10_2P_Specification_Sheet.pdf

• The CMRB 9 Series Standard Range occupancy sensor mounts directly to the end of a luminaire and utilizes the industry's leading Passive Infrared (PIR) technology to provide amazing sensitivity to small motions and excellent payback
• The sensor is line powered and can switch loads directly without the need for a power pack
• A CMRB 9 is typically installed on each fixture when used in long corridors with concrete ceilings and pendant or surface fixtures spaced 10-20 ft (3.05-6.10 m) apart
