EATON B-Line series enclosure solutions are designed to meet our customer requirements. From standard stock product to modified enclosures, our enclosure experts are available to help you choose the enclosures you want, in the time you need them.

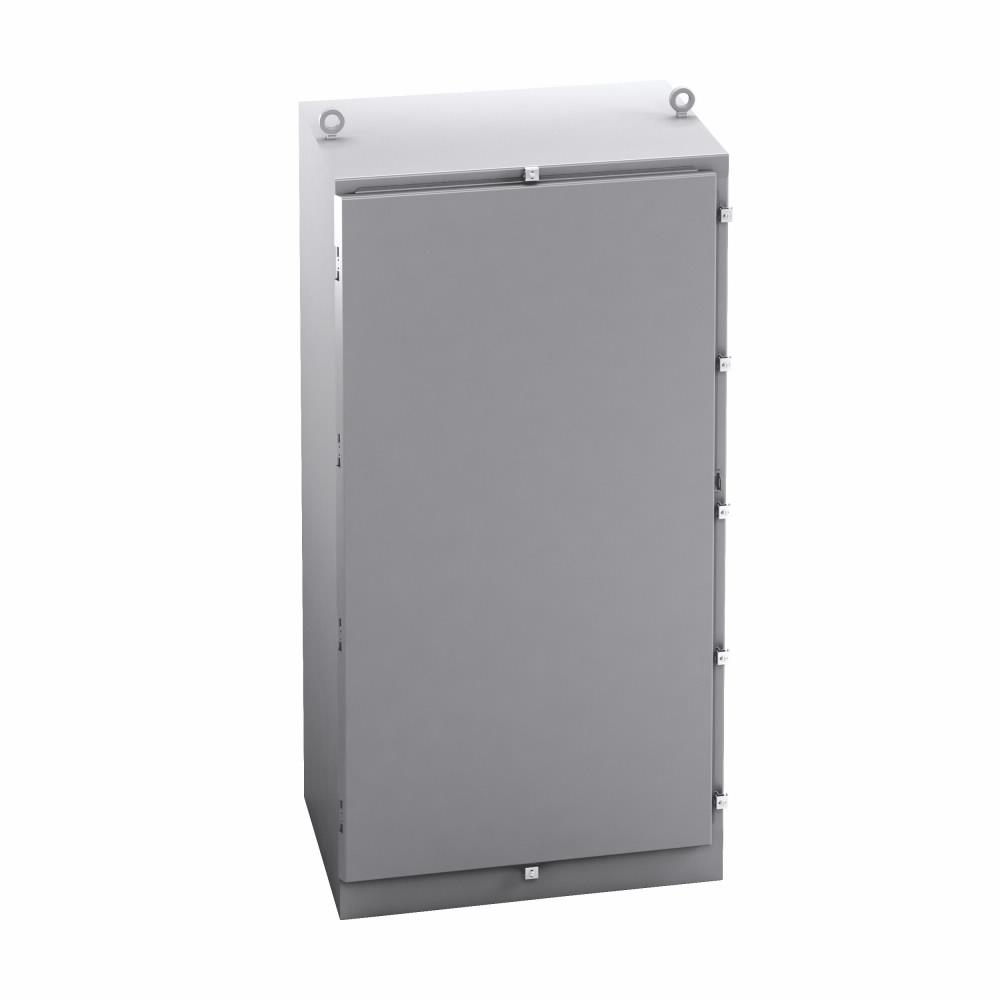

B-Line Ground Mount Enclosure, 1-Door, 37 in Width, 18 in D, 72 in Height, NEMA 4/IP66, Hinged Cover, Lock: Padlock Hasp, Floor/Freestanding Mount, Carbon steel, Polyester Powder Coated, Gray

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/1086_SDFQRCC_Catalog.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/1086_SDFQRCC_Catalog.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/B-Line_723718-4FS_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/B-Line_723718-4FS_Specification_Sheet.pdf

• Enclosure and door are fabricated from 12 ga steel
• All continuous welded seams are finished smooth
• Door is secured to the body with removable concealed hinges and easy to remove stainless steel door clamps on three sides
• Modern bevel profile on hinge side of enclosure door
• Door has a seamless poured in place gasket
• Ground stud provided on door and body
• Each door has a padlock hasp with sealing hole provision
• Print pocket is provided
• Large lifting eyebolts are supplied
• Mounting channels are welded inside for locating panels or rack mount equipment along enclosure depth
• Protects against windblown dust and rain, splashing water and hose directed water
• Wash and phosphate undercoat
• Stainless door clamps
