Cutler-Hammer CHB220

Share Print

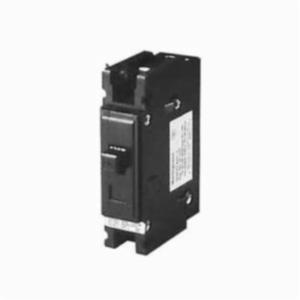

Cutler-Hammer CHB220 Type CHB Standard Thermal Magnetic Molded Case Circuit Breaker, 120 VAC/240 VDC, 20 A, 2 Poles

  • MPN: CHB220

  • IESPN: 52655

  • UPC: 782113112435

  • Min Order Qty: 1

  • Quantity Interval: 1

    • Availability: loading

    • Branch Availability
Cutler-Hammer CHB220

Cutler-Hammer Molded Case Circuit Breaker, Type CHB Standard Thermal Magnetic, 120 VAC/240 VDC, 20 A, 10 kA Interrupt, Long Time/Instantaneous Trip, 2 Pole, 1 Phase, Handle Actuator, Box Lug, 14 to 8 AWG Wire, Bolt-On Mount, 60/75 deg C, 3.7 in H x 1.5 in W x 3.4 in D

Type      Type CHB Standard Thermal Magnetic
Voltage Rating      120 VAC/240 VDC
Amperage Rating      20 A
Interrupt Rating      10 kA
Trip Type      Long Time/Instantaneous
Number of Poles      2
Phase      1
Actuator Type      Handle
Connection Type      Box Lug
Wire Size      14 to 8 AWG
Mounting Type      Bolt-On
Temperature Rating      60/75 deg C
Dimensions      3.7 in H x 1.5 in W x 3.4 in D
  • pdfCatalog https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/Cutler_Hammer_CHB115_Catalog.pdf
  • videoVideo Link https://www.youtube.com/watch?v=604tzYeG0r4
  • The CHB breaker continues to be available as a replacement breaker
  • When combined with the mounting base, CHB breakers were also used for surface and DIN rail mount cable-in/cable-out applications
  • Type CHB breaker handles trip to a position between ON and OFF and require movement to full OFF to reset the breaker
  • Contacts are sintered weld resistant silver tungsten
  • Inverse time element thermal element tripping
  • Cu/Al wire
