Designed for commercial and industrial applications where safety, high performance and continuity of service are essential. listed to UL standard 98 enclosed and dead front switches. suitable for use as service equipment when installed in accordance with the national electrical code certified to CSA standard 22.2 no 4-04 enclosed and dead front switches. meets or exceeds NEMA KS1 standard for enclosed switches, type HD. fusible and non-fusible switches available (consult BuyLog for interrupt ratings). quick-make, quick-break mechanism. 60/75 deg C conductor rating. full cover interlocks.

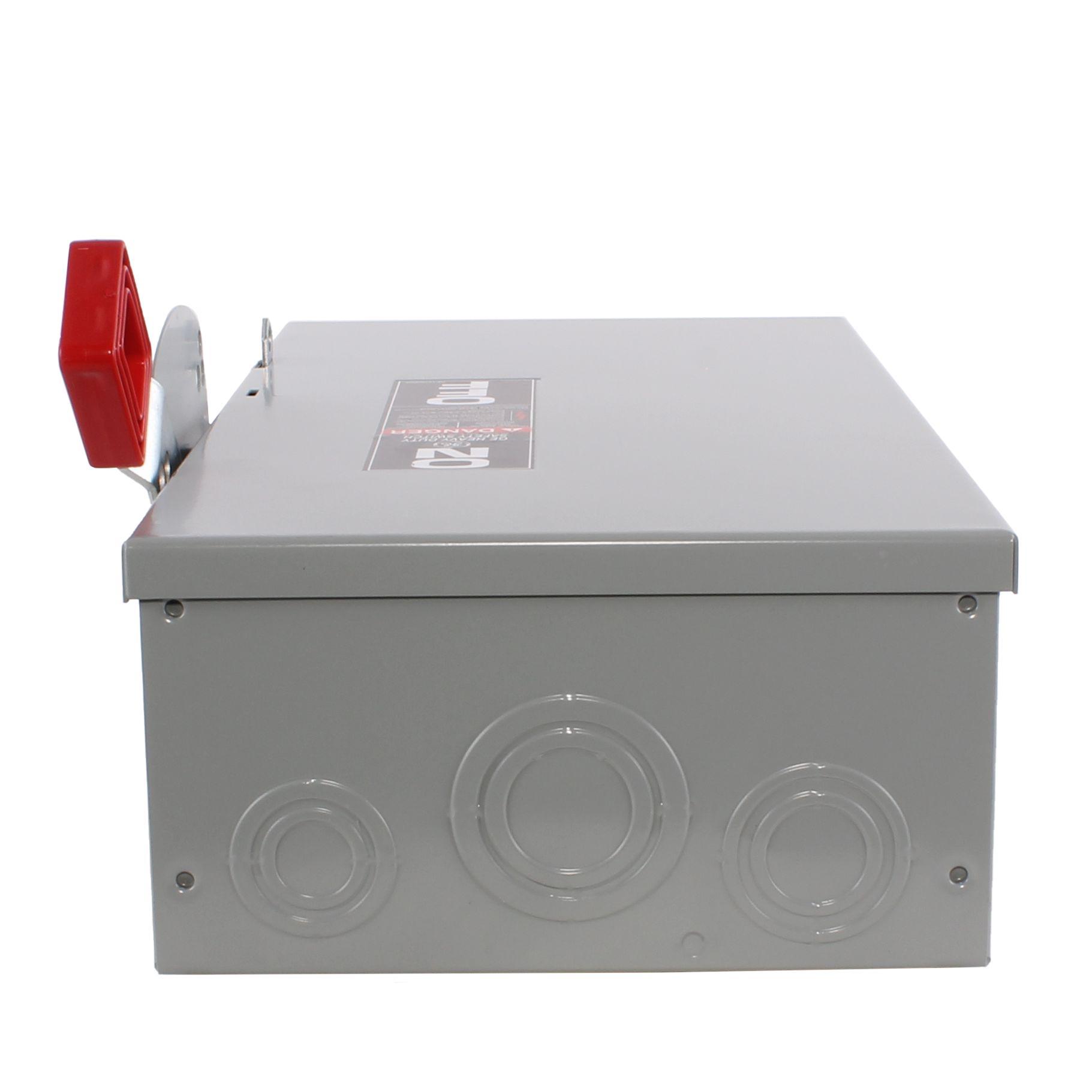

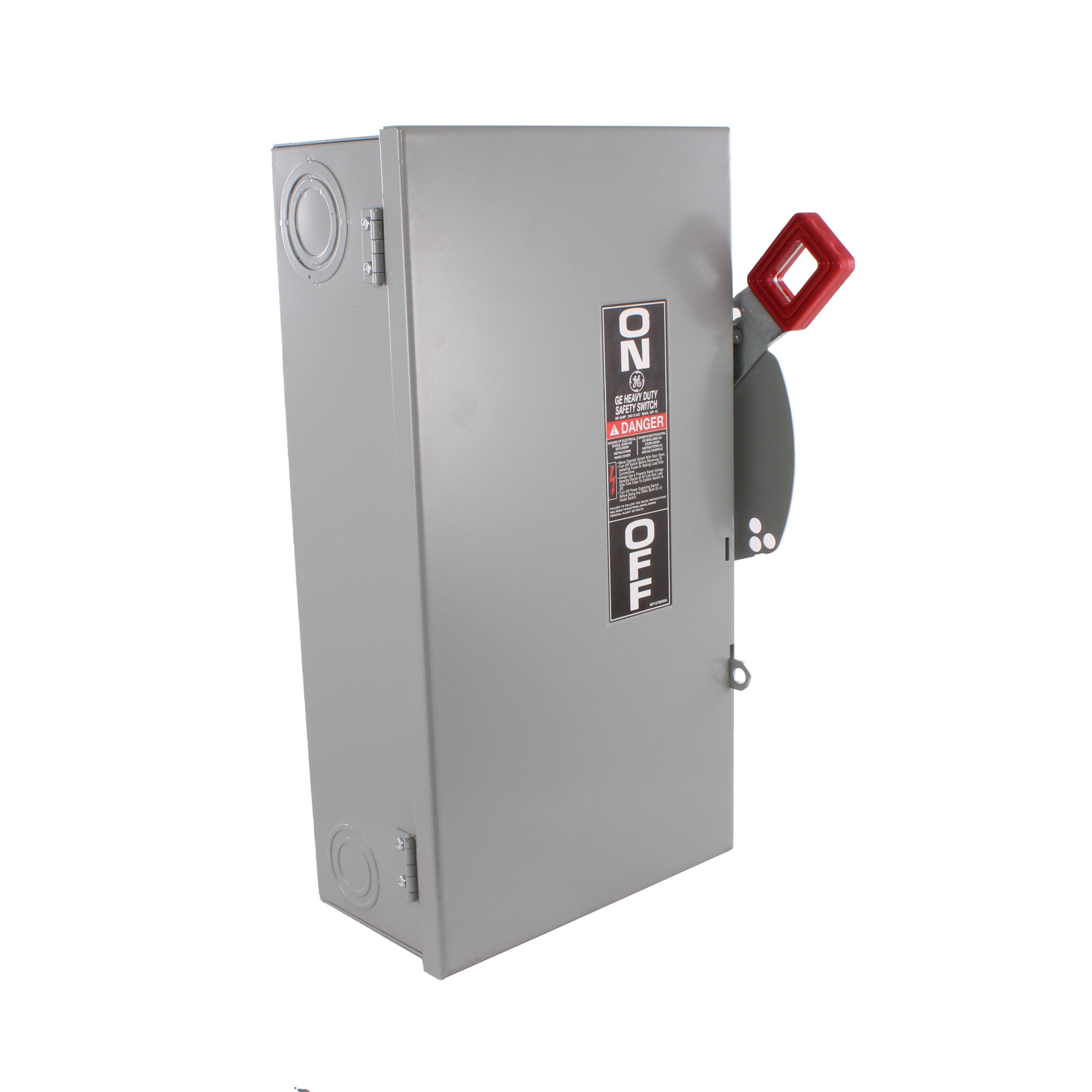

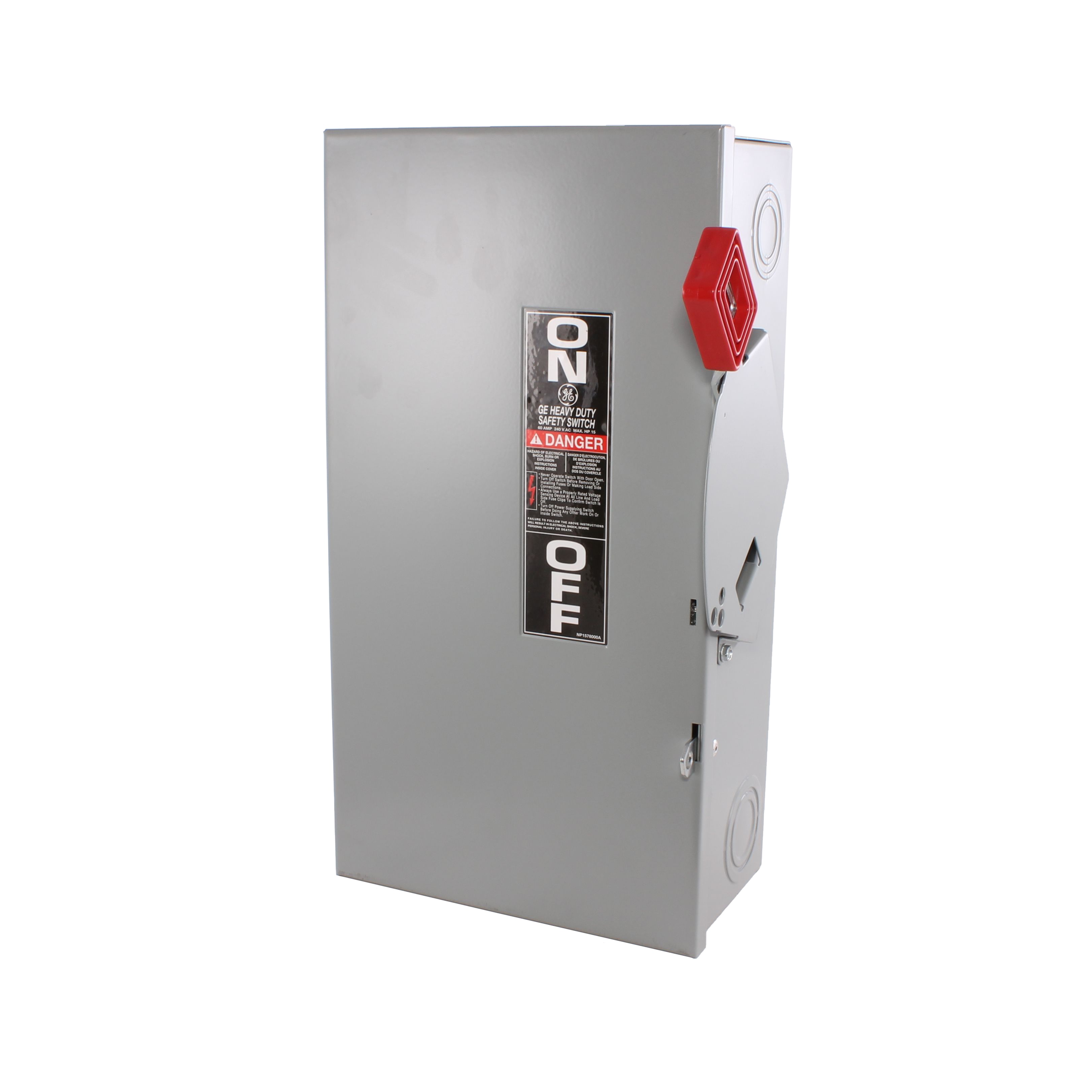

GE Spec-Setter™ Safety Switch, Fused Heavy Duty, 240 VAC, 60 A, 7-1/2 hp, 3 ph, 50/60 Hz Frequency, 3 Pole, 4 Wires, 200 kA Short Circuit, Handle Actuator, Class H/J/K/R Insulation, NEMA 1 Enclosure, 3-Point/Self-Leveling Mounting, Line/Load Lug Terminal, 60 to 75 deg C, 10.1 in W x 9 in D x 17.6 in H Dimensions, Stainless Steel, Hot Dipped Galvanized/Powder Coated

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/GE_TH4322_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/GE_TH4322_Specification_Sheet.pdf

• Highly visible ON/OFF label takes the guesswork out of safety and gives a clean, modern appearance
• Coin-proof, defeatable dual interlocks meet all safety inspection requirements
• Wide, unobstructed gutter and removable interior make wire pulling and lug connections quick and easy
• 3-point mounting pattern speeds installation and simplifies ganging in close quarters
• Clear line shield allows visual verification of blade position while guarding against accidental contact with live parts
• Plated blades provide visible confirmation of contact position
• Direct drive, quick-make, quick-break mechanism "snaps" the contacts open and closed, providing positive ON/OFF indication while prolonging switch life
• Spring reinforced fuse clips assure reliable contact for cool operation
• Suitable for class H, K, J or R fuses
• 3 hp at 240 VAC standard fuse, 7 hp at 240 VAC standard fuse, 10 hp at 240 VAC time delay, 15 hp at 240 VAC time delay, 5 hp at 125 VDC, 10 hp at 250 VDC horsepower rating
