Q line circuit-breakers are 1 in wide per pole, compact, thermal-magnetic devices designed for residential and commercial applications. The QB breakers are bolt-on versions of the Q line used for bolting to the bus connections of load centers and lighting panels. All Q line circuit-breakers feature quick-make / quick-break mechanisms, common trip bars and easy to spot trip indication to ensure safety and reliability. Q line breakers are available in 1, 2 and 3-pole versions, can be ordered with auxiliary contact and shunt trip accessories and can be ordered for use in HID applications.

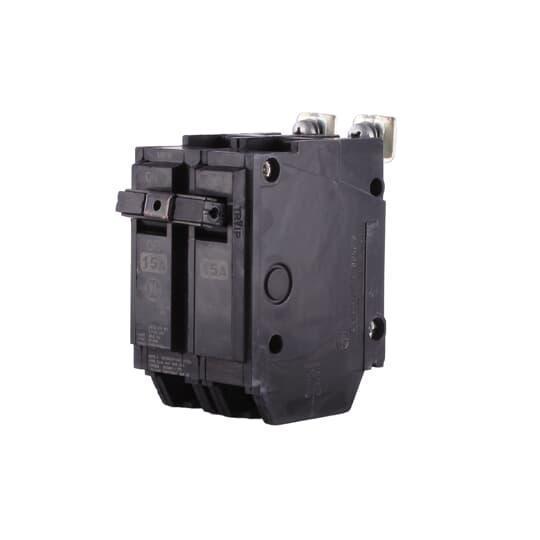

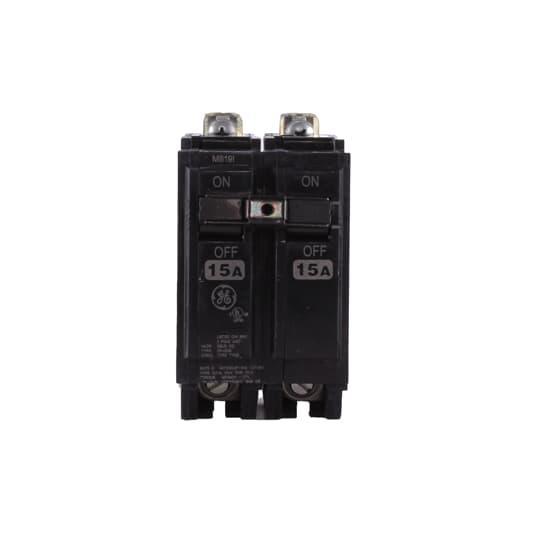

GE Molded Case Circuit Breaker, Type THQB, Series: Q-Line, 240 VAC, 20 A, 10 kA Interrupt, Non-Interchangeable/Long Instantaneous Trip, 2 Poles, 1-Phase, 14 to 8/12 to 8 AWG Wire, Bolt-On Mount, 3-9/32 in H x 2 in W x 2-3/8 in D

• Catalog https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/GE_TJK436F000_Catalog.pdf
• Specification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/GE_THQB22020_Datasheet.pdf
• Specification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1520593300038.pdf
• Specification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://www.ideadigitalcontent.com/files/10985/ID-SPE-THQB22020_product_details.pdf

• Suitable for reverse feed
• Standard continuous current rated
• Fixed long time
• Fixed instantaneous trip function
• Copper/aluminum wire
• 10 kA at 240 VAC interrupt rating
