Type IP transformers are core and coil units designed for machine tool, industrial control, panelboard and general purpose applications. These designs are now welded core and encapsulated to provide the highest quality electrical performance. The transformer coil is completely surrounded by epoxy, making the unit impervious to external elements. The lamination core is welded to provide superior quiet performance.

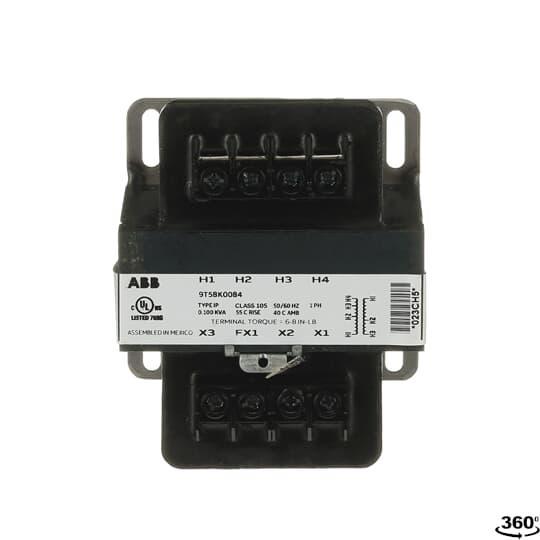

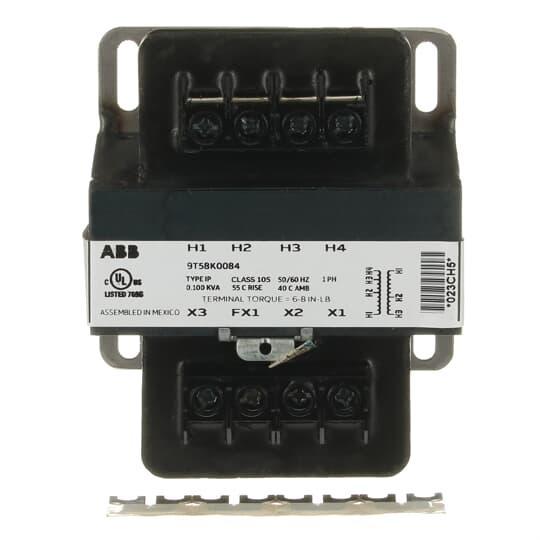

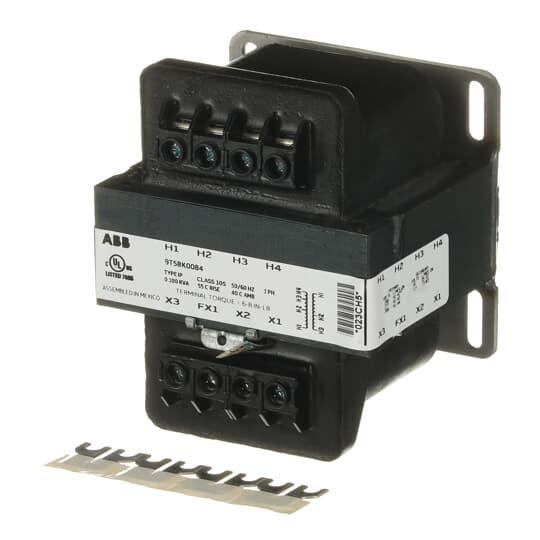

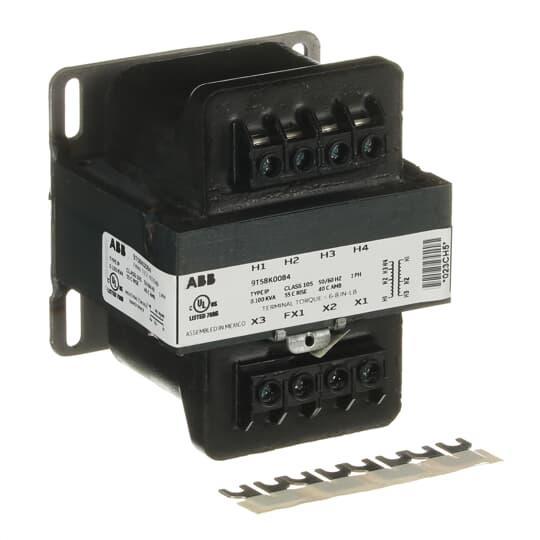

GE Power Transformer, Core/Coil Dry Fully Encapsulated Harmonic Mitigation, Series: 9T58K, 208/277/380 VAC Primary, 115/95 VAC Secondary, 0.1 kVA, 50 Hz, 1 ph, Pressure Plate, 8150 Frame, Class A, Open, 40 deg C, 3.81 in W x 3.28 in H

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/GE_9T58K0084_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/GE_9T58K0084_Specification_Sheet.pdf

• Core and coil transformers for machine tool applications are used to provide voltage to control devices in applications where regulation and minimum space are important
• Fully encapsulated coil is impervious to moisture
• Terminal board is anchored in the epoxy for greater reliability
• Wide variety of fusing options
• Rugged, high impact plastic terminal board
• Full head #8 brass screws assure quick, easy terminations with maximum connection integrity
• Flexible design allows input or output voltage to match any application
• Copper windings
• Pressure plate terminals ensure secure connections
• 55 deg C temperature rise
• Offer simple, low cost fusing with terminal block models and minimum space are important
• 105 deg C temperature class
• Fingersafe® terminals offer added protection and safety
