A power outlet panel (POP) is a device designed for outdoor service to meet temporary power requirements at construction sites and recreation vehicle (RV) parks. POPs provide a safe and reliable means for users to access electricity at such locations.

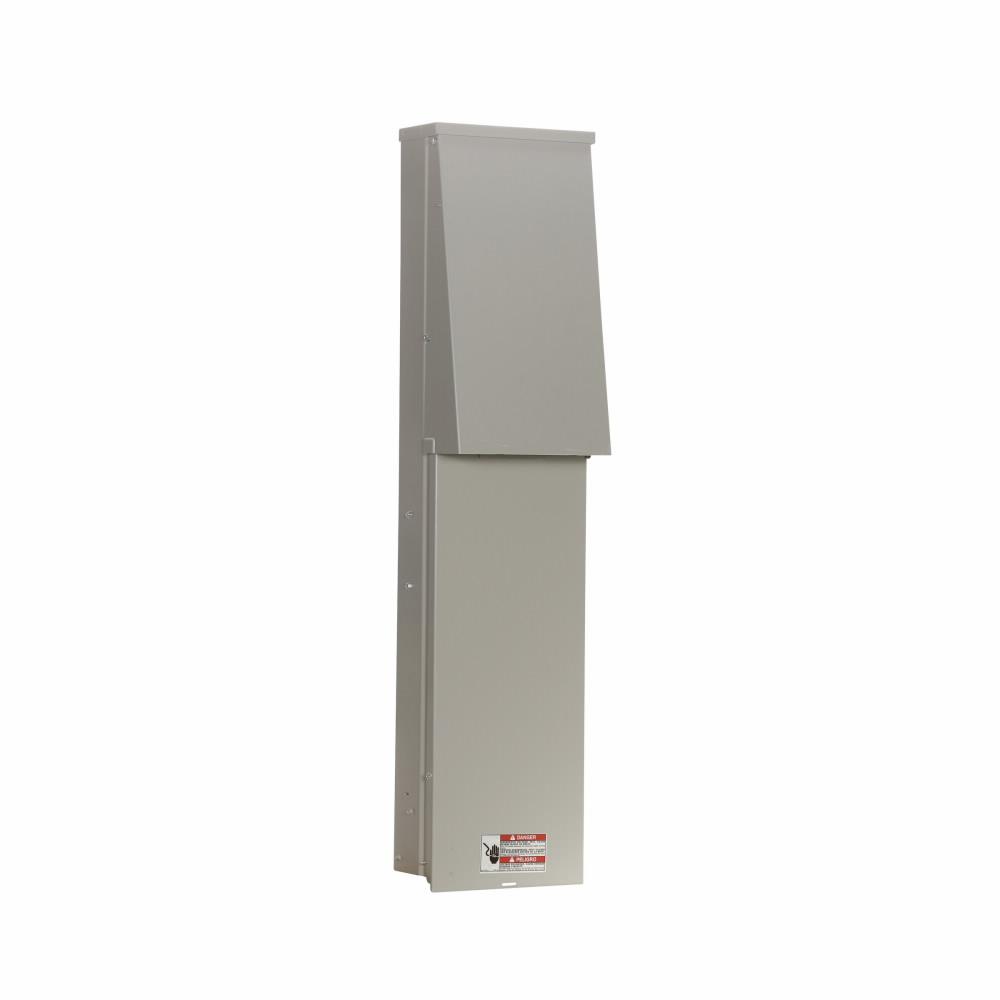

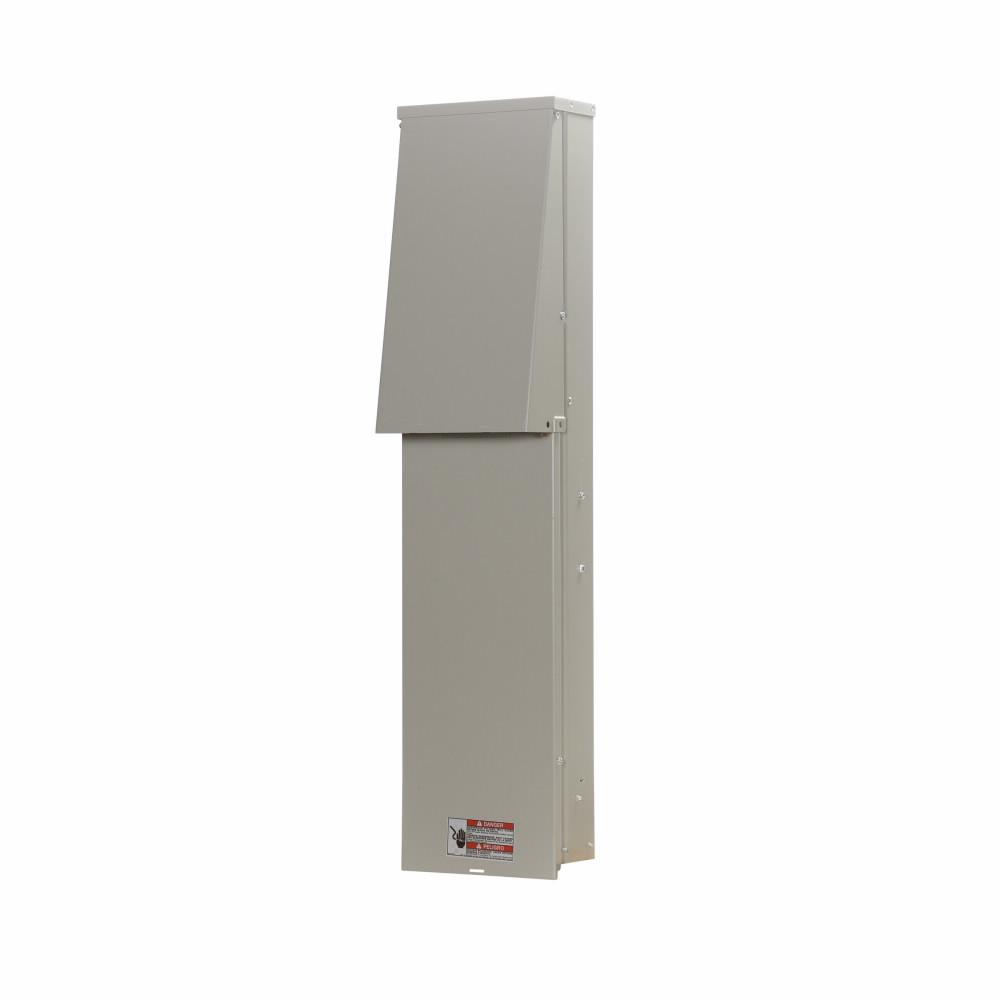

EATON Unmetered Power Outlet Pedestal, 6-Circuit, 125/250 VAC, 20/30/50 A, NEMA 14-50R/NEMA 5-20R2GFI/NEMA TT-30R Receptacle, Non-Ground Fault Circuit Breaker Type, Top Feed, NEMA 3R, Galvanized Steel, Surface Mount

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/CMBE22P125BTFR_Catalog.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/CMBE22P125BTFR_Catalog.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/CHU1N7N4NSX_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/CHU1N7N4NSX_Specification_Sheet.pdf

• Includes a factory installed insulated neutral bar with provisions for bonding when used for temporary service entrance applications
• 125 A rated meter socket
• 100% galvanized steel with baked on polyester powder coating
• Three point mounting
• 1-piece case back for metered and unmetered panels
• Unique steel barrier prevents unauthorized operation of breakers when door is closed and padlocked
• NEMA 3R construction for rainproof installation
• Door swings up when opening and allows cords to remain connected when closed
• Removable upper deadfront cover for easy incoming wire connections to breaker terminals
• Lower deadfront cover can be removed for easy routing of incoming wires or receptacle changeouts
• Padlock provisions to prevent unauthorized entry

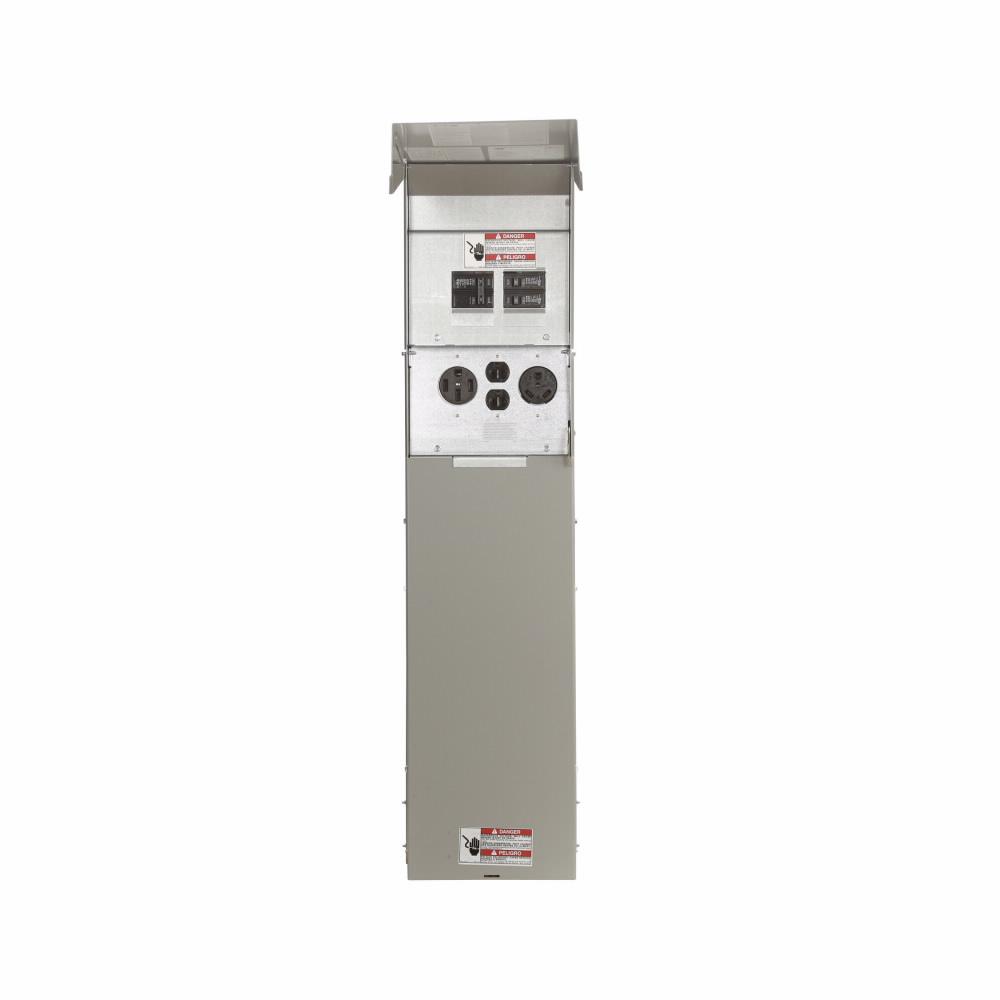

• 2-pole, 50 A breaker, 50 A at 125/250 VAC, 3-pole, 4-wire, NEMA 14-50R left position, 1-pole, 20 A breaker, 20 A at 125 VAC, 2-pole, 3-wire, NEMA 5-20R2GFI center position, 1-pole, 30 A breaker, 30 A at 125 VAC, 2-pole, 3-wire, NEMA TT-30R right position
