Experience the superior quality of the Eaton Series C Molded Case Circuit Breaker.  The Series C circuit breaker is ideal for panelboards, switchboards, motor control centers, and busway applications. Choose from a premier selection of trip units including thermal magnetic, electronic, and magnetic only switches. Available for systems up to 600 VAC or 250 VDC with current ratings up to 800A.

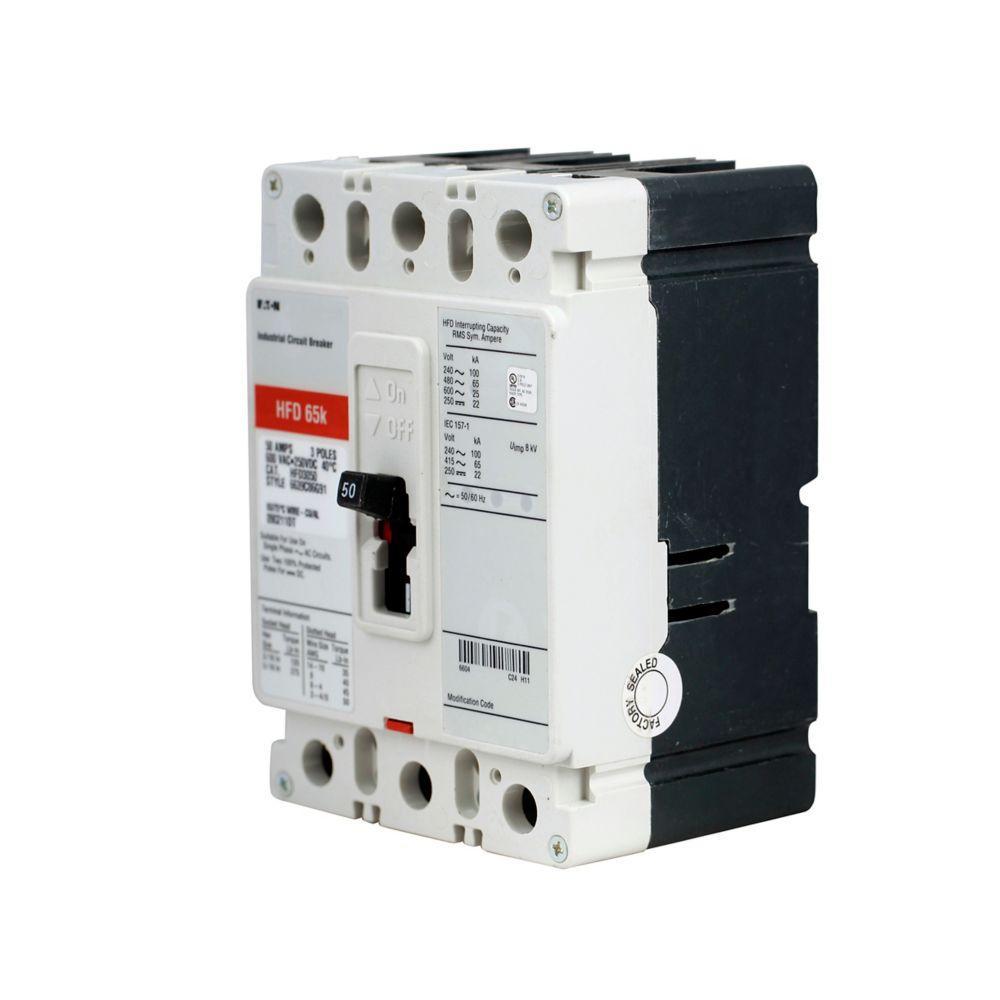

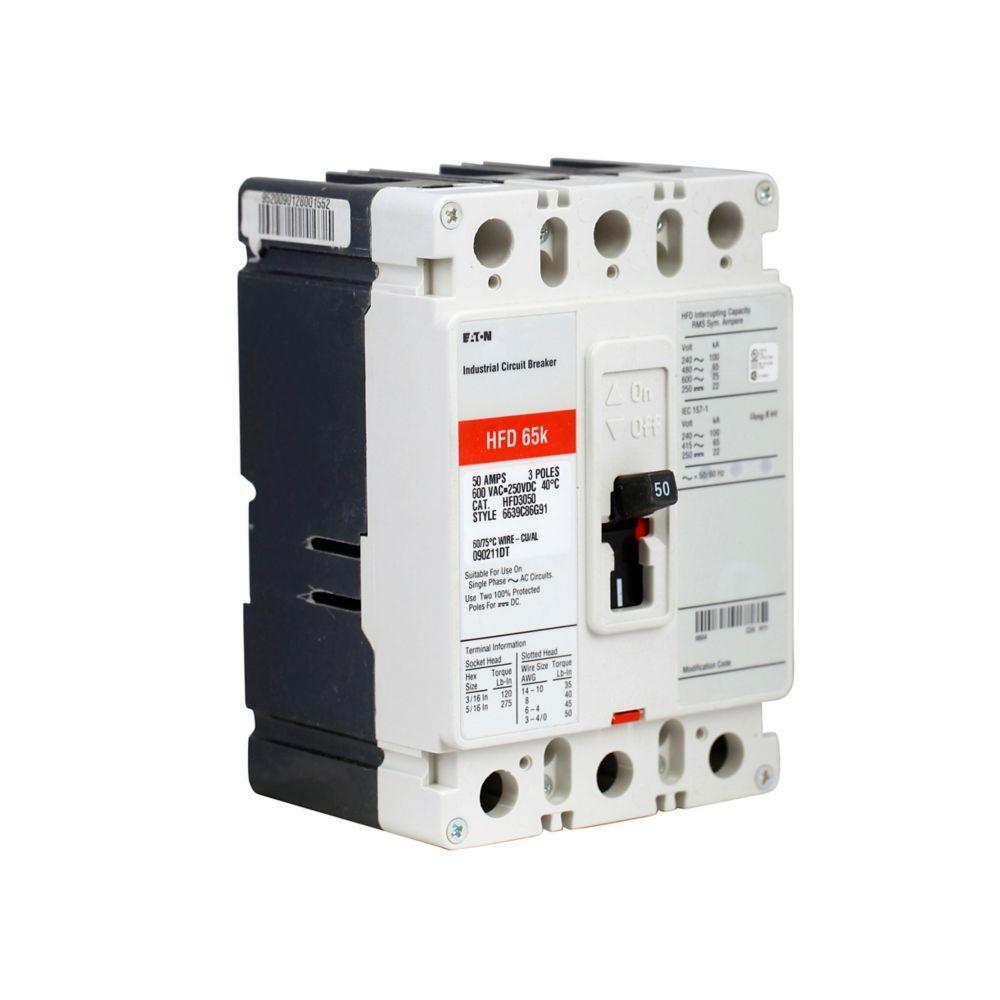

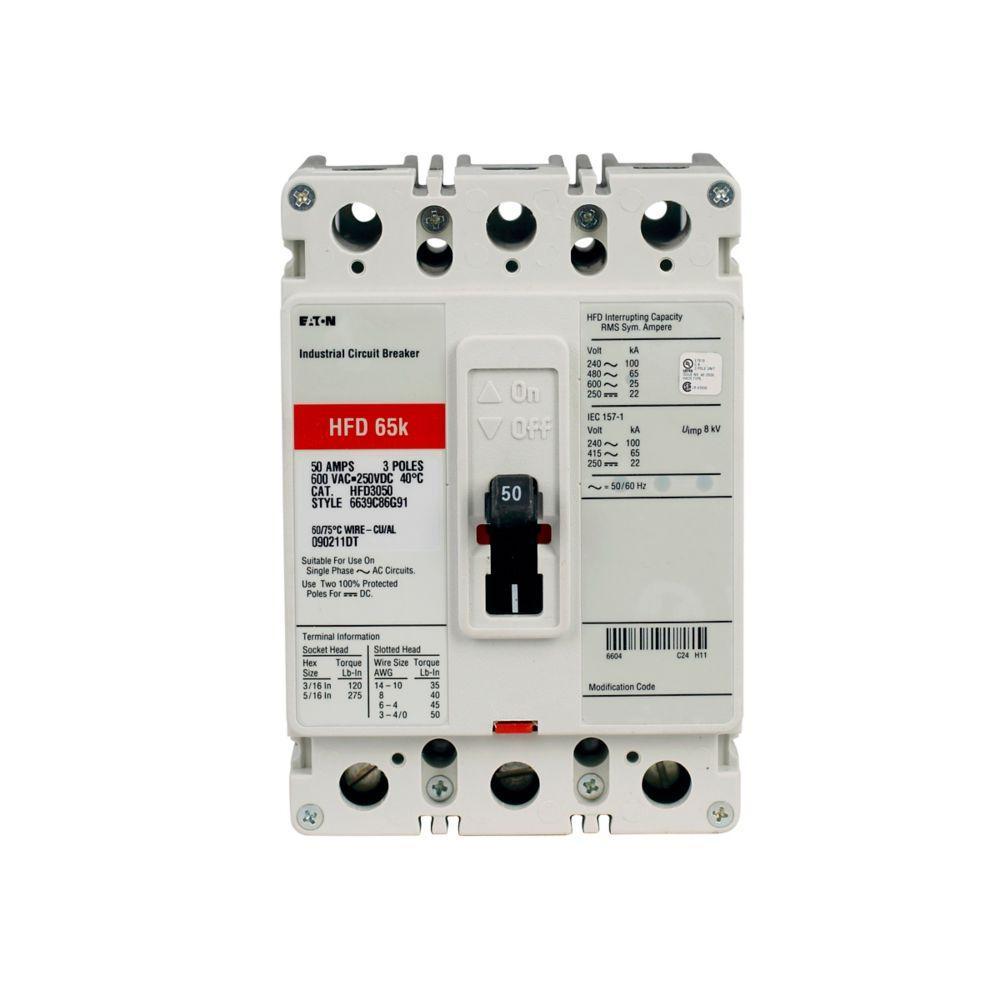

EATON Molded Case Circuit Breaker, Type HFD, Series: C Series, 600 VAC/250 VDC, 125 A, 50/60 Hz, 65 kAIC at 480 VAC/100 kAIC at 240 VAC Interrupt, F Frame, Thermal Magnetic Trip, 3 Pole, Line/Load, 1A-1B/1MK-1BK Auxiliary, Surface Mount, 40 deg C, 3.38 x 4.13 x 4.13 in, Glass Polyester

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/E2MM3800W_Catalog_02.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/E2MM3800W_Catalog_02.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/FD3200LW02_Installation_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/FD3200LW02_Installation_Manual.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/JDB3225XA06D03S10_User_Manual_05.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/JDB3225XA06D03S10_User_Manual_05.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/HFD3125LC06U14_Specification_Sheet_02.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/HFD3125LC06U14_Specification_Sheet_02.pdf
• VIDEO LINK https://www.youtube.com/watch?v=ZBPV2r7VTgw

• Patented contact design features high speed "blow-open" action, resulting in superior performance
• Same side right terminal block, 120 VAC under voltage release rear pigtail lead
• 100 kA at 240 VAC, 65 kA at 480 VAC interrupt rating
