Eaton's Freedom Series Adjustable Bimetallic Ambient Compensated Contactors are designed for use with CE or CN non-reversing and reversing contactors. They have interchangeable heater packs and are available in four sizes for overload protection up to 900 hp, reducing the number of different contactor/overload relay combinations that have to be stocked. They also feature a full line of snap-on accessories common to both IEC and NEMA devices.

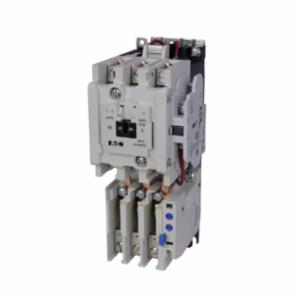

Cutler-Hammer NEMA Starter, Full Voltage Non-Reversing, Series: Freedom, 600 VAC, 45 A, 60 Hz, 25 hp Motor, 208 VAC Coil, 3 Poles, 3 Phase, C306 Bi-Metallic Overload Relay, NEMA 2/Open, 4.94 in L x 4.38 in W x 3.31 in H

• Catalog-1 https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/Cutler_Hammer_BA21JP_Catalog_1.pdf
• Specification Sheet-1 https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/Cutler_Hammer_AN16GN0EB_Data_Sheet.pdf
• Video Link https://www.youtube.com/watch?v=4Qg9iytqiF8

• Screw type power terminals have captive, backed out self lifting pressure plates with screws result in reduced wiring time
• Accessible terminals allow for ease of use and are convenient for simple wiring
• Top located contactor magnet coils have three terminals which permit either top or diagonal wiring and are readily accessible, for easy replacement without changing wiring layout
