GE THQL32020

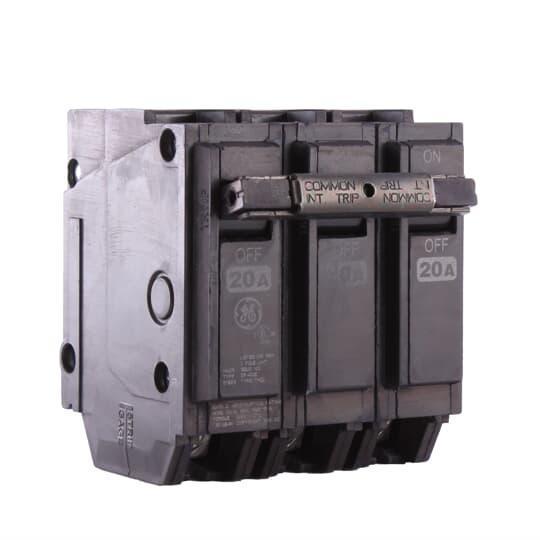

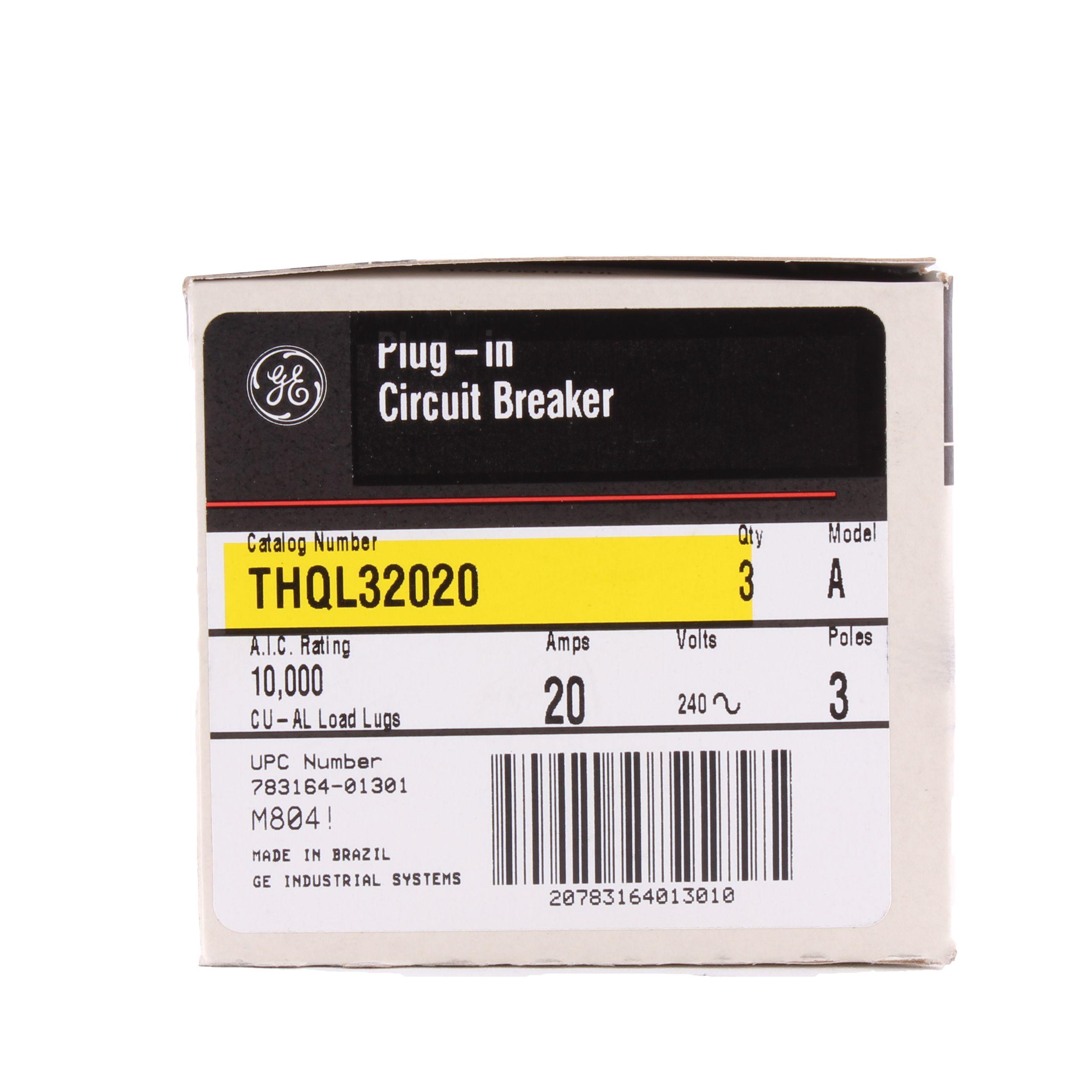

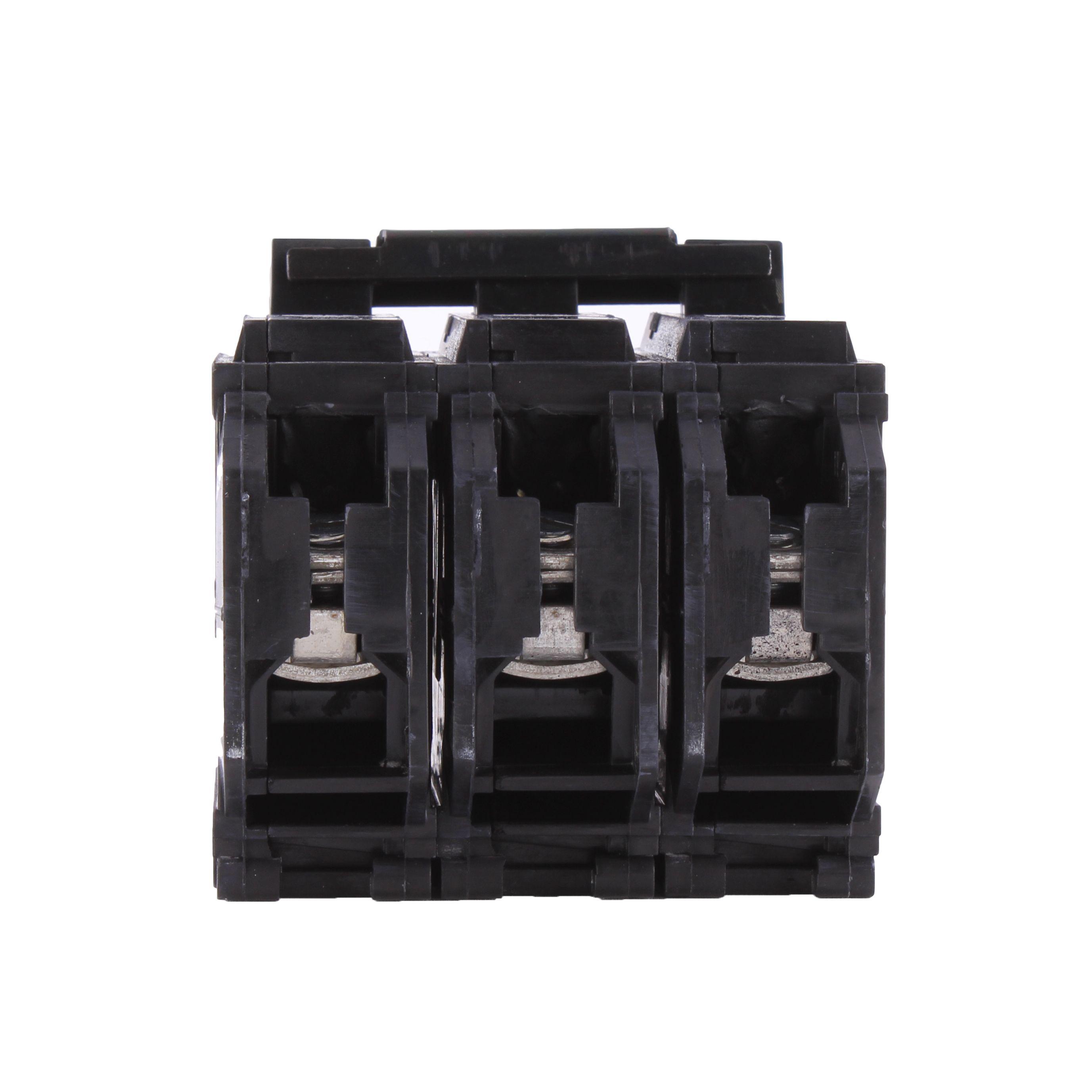

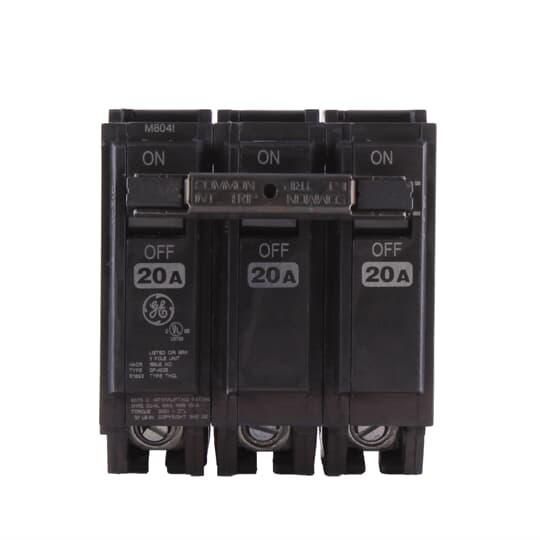

GE THQL32020 Type THQL Molded Case Circuit Breaker, 120/240 VAC, 20 A, 10 kA, 3 Poles, Non-Interchangeable Trip

  • MPN: THQL32020

  • IESPN: 73613

  • UPC: 783164013016

  • Min Order Qty: 1

  • Quantity Interval: 1

    • Availability: loading

    • Branch Availability
GE THQL32020

Q line circuit breakers are one-inch wide per pole, compact, thermal-magnetic devices designed for residential and commercial applications. The QL breakers are plug-in versions of the Q Line used for connection to load centers and lighting panels. All Q Line circuit breakers feature Quick-make / Quick-break mechanisms, common trip bars and easy to spot trip indication to ensure safety and reliability. Q Line breakers are available in 1, 2 and 3 pole versions, can be ordered with auxiliary contact and shunt trip accessories and can be ordered for use in HID applications.

GE Molded Case Circuit Breaker, Type THQL, 120/240 VAC, 20 A, 10 kA Interrupt, Q-Line Frame, Non-Interchangeable Trip, 3 Pole, 1, 12 to 8 AWG Wire, Plug-In Mount, 65 to 75 deg C, 2-3/8 in L x 1 in W x 3-9/32 in H

Type      Type THQL
Voltage Rating      120/240 VAC
Amperage Rating      20 A
Interrupt Rating      10 kA
Frame      Q-Line
Trip Type      Non-Interchangeable
Number of Poles      3
Phase      1
Wire Size      12 to 8 AWG
Mounting Type      Plug-In
Temperature Rating      65 to 75 deg C
Dimensions      2-3/8 in L x 1 in W x 3-9/32 in H
  • pdfData/Spec Sheet-1
  • pdfSpecification Sheet
  • pdfSpecification Sheet
  • LI trip function
  • R8 GO schedule
  • For heating, air conditioning and refrigeration
  • Incorporates internal common trip bar
  • 12 to 8 AWG aluminum and 14 to 8 AWG copper
  • Box lug load termina
