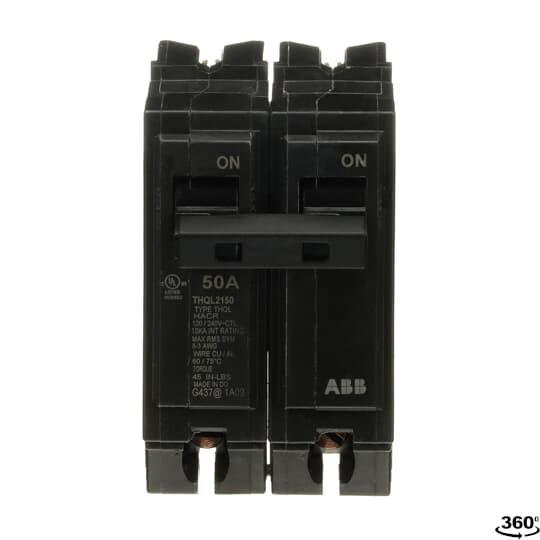

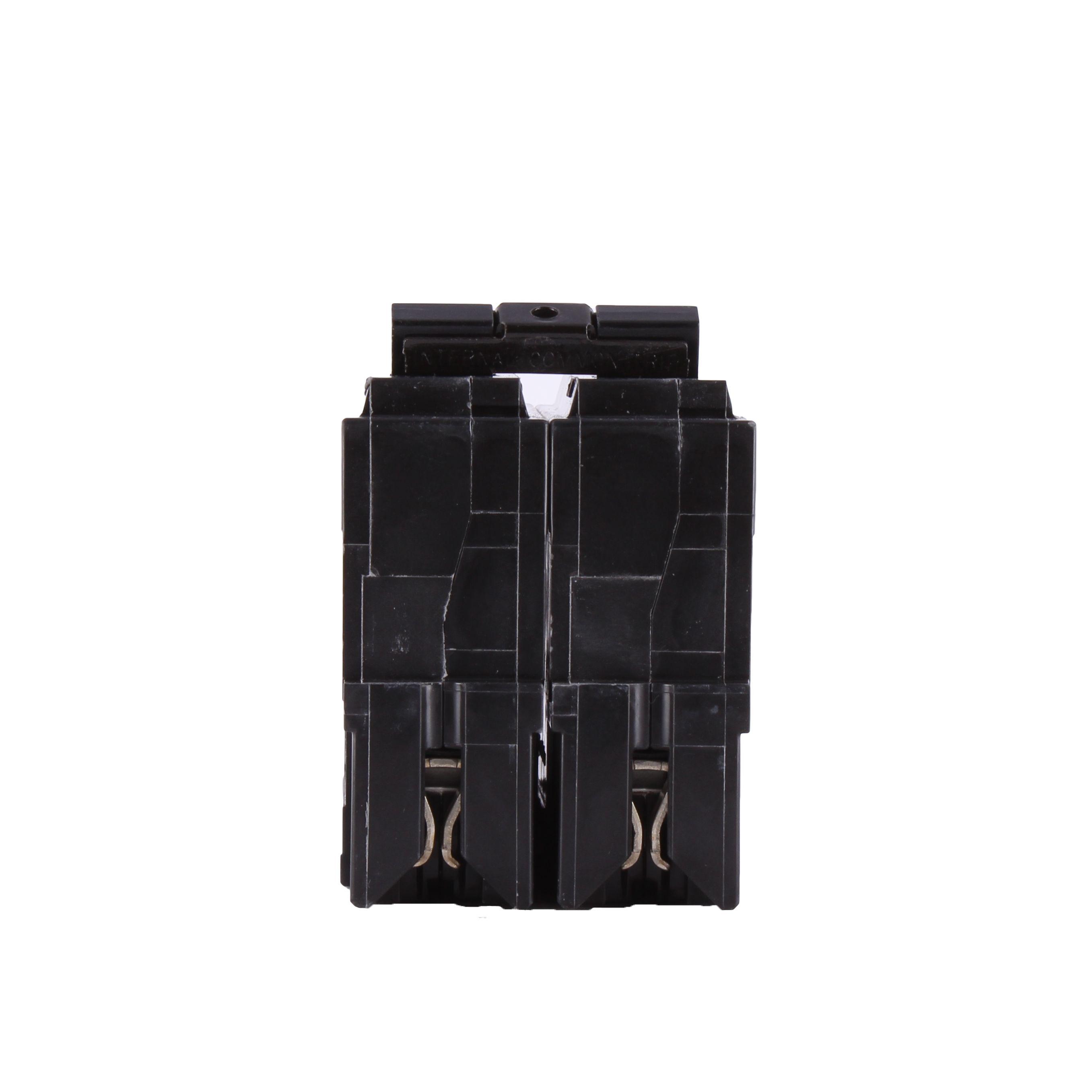

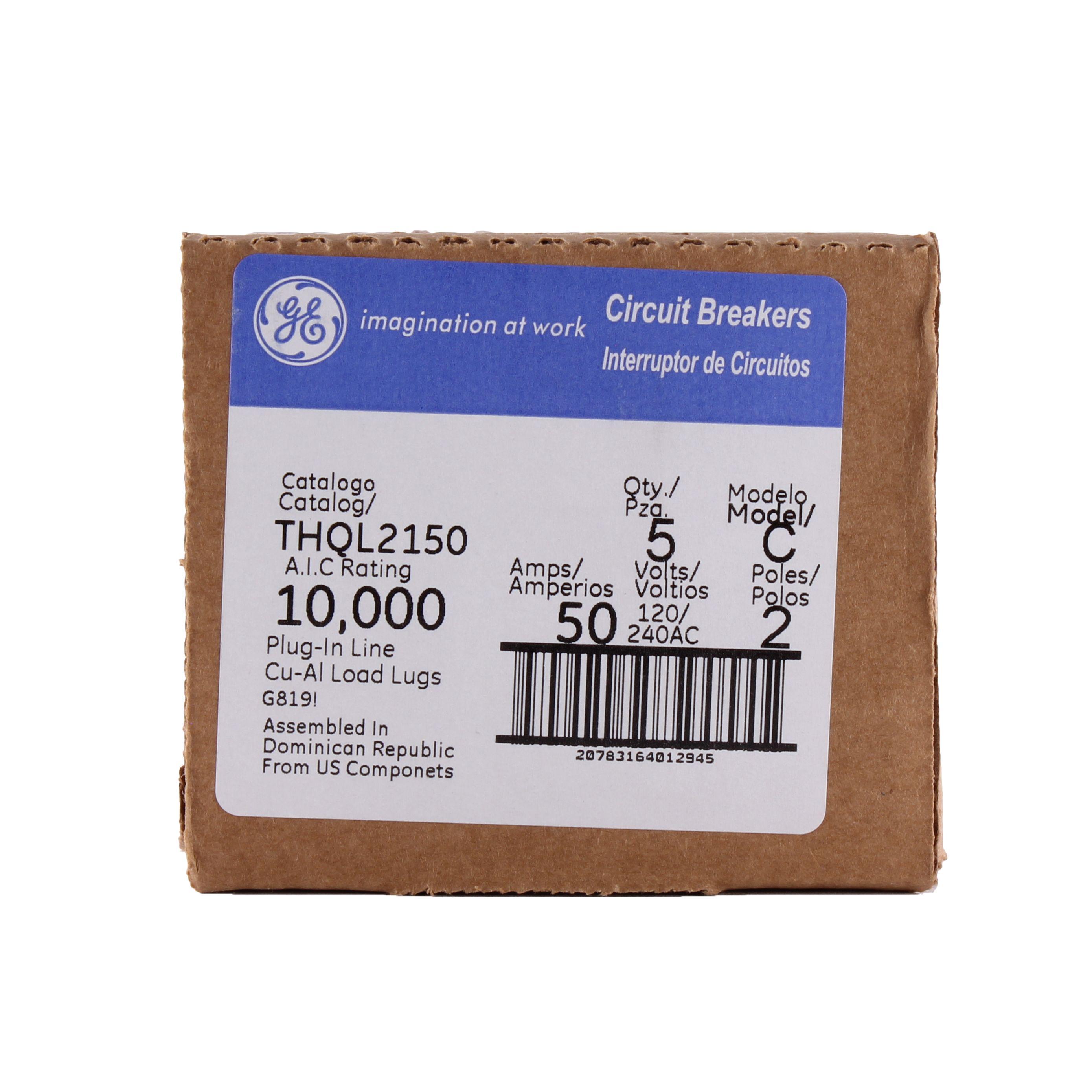

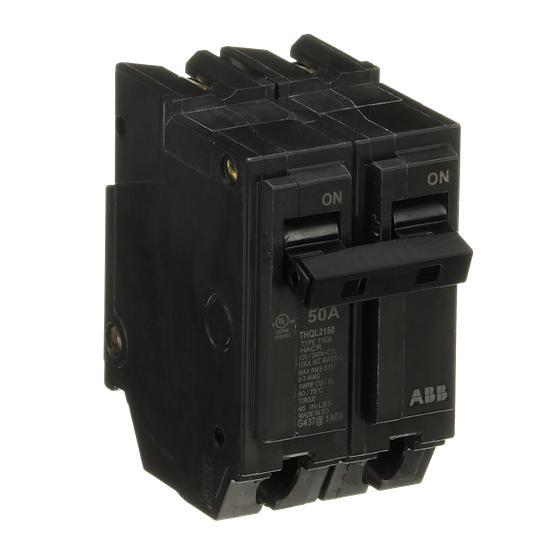

GE THQL2150

GE THQL2150 Type THQL Molded Case Circuit Breaker, 120/240 VAC, 50 A, 10 kA, 2 Poles, Non-Interchangeable Trip

  • MPN: THQL2150

  • IESPN: 40151

  • UPC: 783164012941

  • Min Order Qty: 1

  • Quantity Interval: 1

    • Availability: loading

    • Branch Availability
GE THQL2150

Q line circuit breakers are one-inch wide per pole, compact, thermal-magnetic devices designed for residential and commercial applications. The QL breakers are plug-in versions of the Q Line used for connection to load centers and lighting panels. All Q Line circuit breakers feature Quick-make / Quick-break mechanisms, common trip bars and easy to spot trip indication to ensure safety and reliability. Q Line breakers are available in 1, 2 and 3 pole versions, can be ordered with auxiliary contact and shunt trip accessories and can be ordered for use in HID applications.

GE Molded Case Circuit Breaker, Type THQL, 120/240 VAC, 50 A, 10 kA Interrupt, Q-Line Frame, Non-Interchangeable Trip, 2 Pole, 1, 8 to 3 AWG Wire, Plug-In Mount, 65 to 75 deg C, 2-3/8 in L x 1 in W x 3-9/32 in H

Type      Type THQL
Voltage Rating      120/240 VAC
Amperage Rating      50 A
Interrupt Rating      10 kA
Frame      Q-Line
Trip Type      Non-Interchangeable
Number of Poles      2
Phase      1
Wire Size      8 to 3 AWG
Mounting Type      Plug-In
Temperature Rating      65 to 75 deg C
Dimensions      2-3/8 in L x 1 in W x 3-9/32 in H
  • pdfData/Spec Sheet-1 https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/General_Electric_THQL2150_Data_Sheet.pdf
  • pdfSpecification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1520555624516.pdf
  • pdfSpecification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://www.ideadigitalcontent.com/files/NEURSPE/20240.pdf
  • LI trip function
  • R5 GO schedule
  • For heating, air conditioning and refrigeration
  • Incorporates internal common trip bar
  • 8 to 3 AWG aluminum/copper
  • Box lug load termina
