Eaton's universal TR series timers are our most flexible and cost-effective timing relays available. products are available with up to seven user-selectable functions and seven user-selectable time ranges. Each unit is DIN rail mountable with a direct connection, eliminating the need for additional sockets. The universal TR series timers are available in SPDT and DPDT contact configurations, and have a compact IEC-style footprint and a universal input voltage range for AC and DC applications.

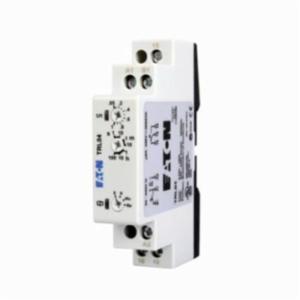

Cutler-Hammer Timing Relay, Universal, Series: TR, Operation Mode: 4-Function, 24 to 240 VAC/VDC, 8 A, 1-Pole, SPDT, 0.05 sec to 100 hr, IP40, DIN Rail Mount, 2.56 in L x 3.5 in W x 3.43 in H

• IDW ITEM DOCUMENTS https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1515127694199.pdf
• Catalog https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/Cutler_Hammer_TRFB240AC_Catalog.pdf
• IDW ITEM DOCUMENTS https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1516383000297.pdf
• Specification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/Cutler_Hammer_TRL04_Datasheet.pdf
• IDW ITEM DOCUMENTS https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1515125415939.pdf

• Multiple user-selectable timing functions and timing ranges in a single unit reduce product variations and stock keeping units
• Universal input voltages from 12 or 24 to 240 VAC/VDC eliminate the need to order and stock separate coil voltages
• Compact, DIN rail mountable case reduces panel size
• Advanced LED indication makes troubleshooting easy
• Staggered terminal locations allow access to lower-level terminals after wiring
• Self-extinguishing plastic enclosure material
• On/OFF delay, power triggered, single shot leading edge voltage controlled, flasher-pause first functions
