E47 compact prewired limit switches – Eaton's E47 compact prewired limit switches are designed to be a versatile, slim device for hard-to-fit applications where sealing integrity is required. The rugged die-cast aluminum alloy housing, cable connection and switch mechanism are encapsulated for protection against extreme temperature (-10° to 70°C), contaminants, moisture, shock and vibration.

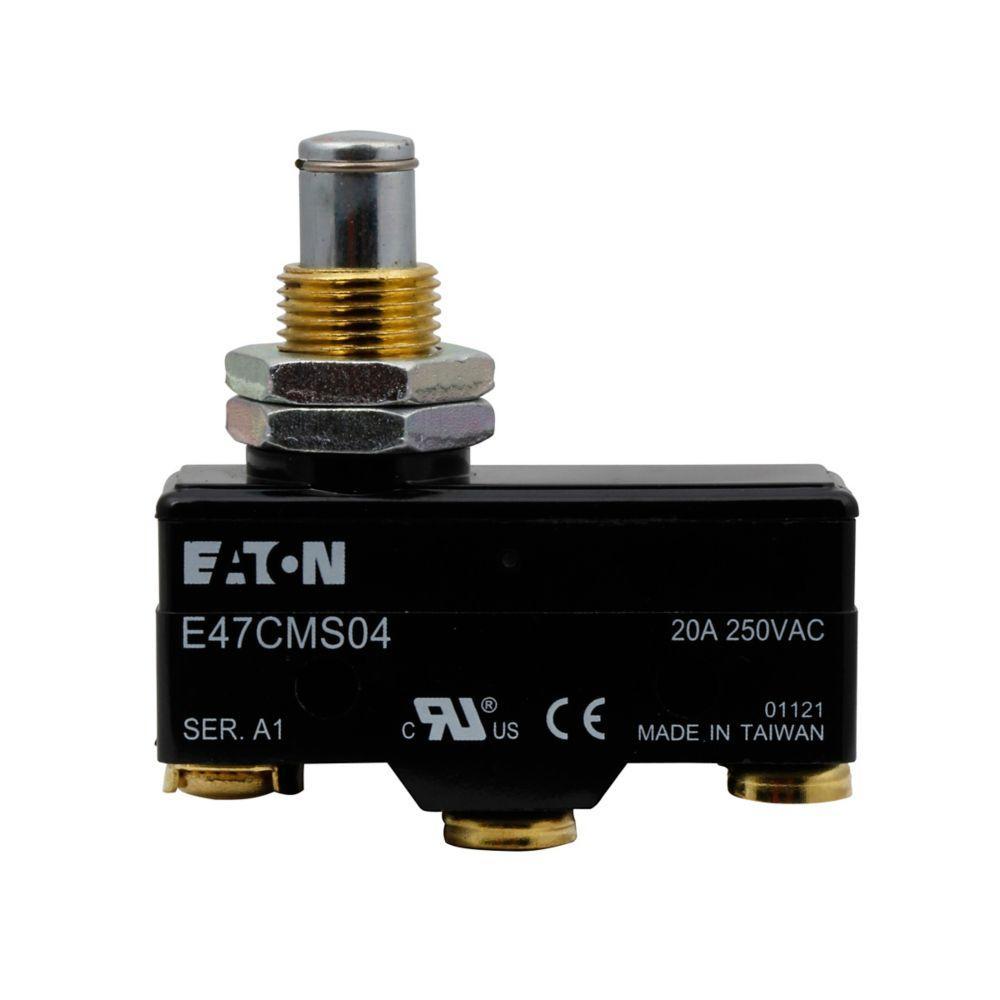

EATON Precision Limit Switch, Basic, Series: E47, 20 A, 50/60 Hz Frequency, 1 Form C SPDT Contact Configuration, 20 A at 250 VAC, 6 A at 30 VDC Contact, 1 Pole, 15 MOhm Closed Contact Resistance, Snap Action, Extended Straight Plunger Actuator, Screw Connection, NEMA 1 Enclosure, Threaded Mounting, 1.94 x 0.69 x 1.36 in Size, 3000000 Cycles Mechanical/500000 Cycles Electrical Operating Cycles, -13 to 176 deg F Operating, Phenolic

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/E47CMS22Y1_User_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/E47CMS22Y1_User_Manual.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/EATON_E47CMS04_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/EATON_E47CMS04_Specification_Sheet.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/EATON_E47BMT30_Technical_Bulletin.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/EATON_E47BMT30_Technical_Bulletin.pdf

• Compact housings are ideal for use where space is restricted
• Precision, snap action operators provide accurate repeatability of electrical and mechanical operating characteristics
• High current capacity (up to 20 A) allows power load switching and motor handling capability
• Enclosed booted versions shield actuators from debris
