Eaton's 10250T line of 30.5 mm pushbuttons features a heavy-duty zinc die cast construction. Reliability nibs improve contact reliability even under dry circuit and fine dust conditions. In addition, drainage holes prevent the buildup of liquid inside the operator, which can prevent operation in freezing environments.

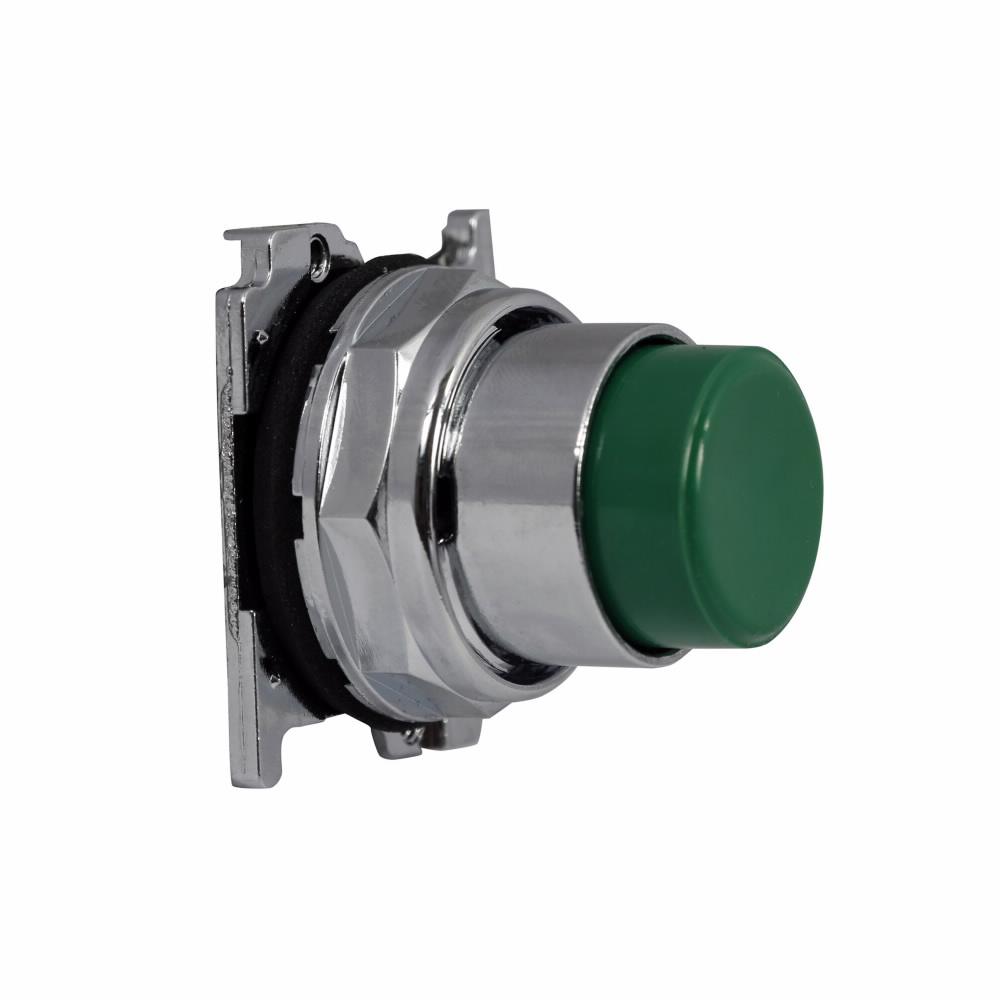

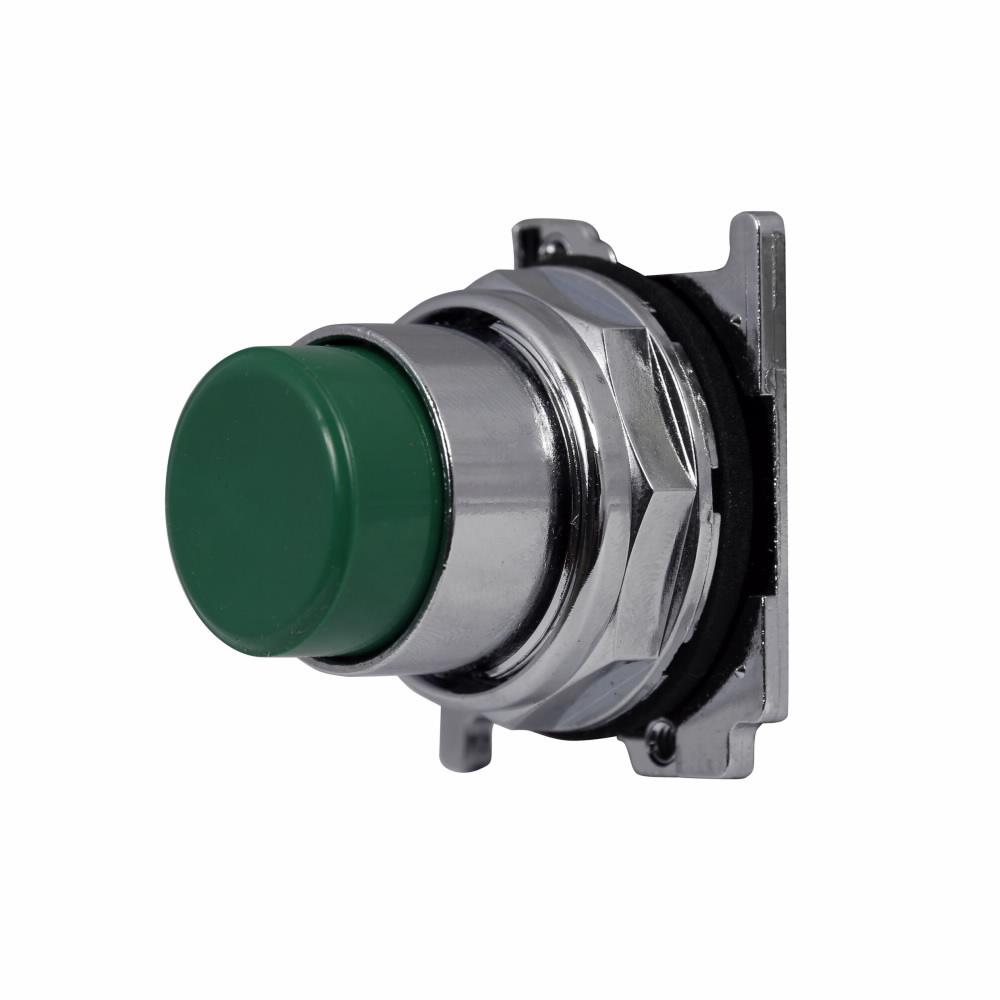

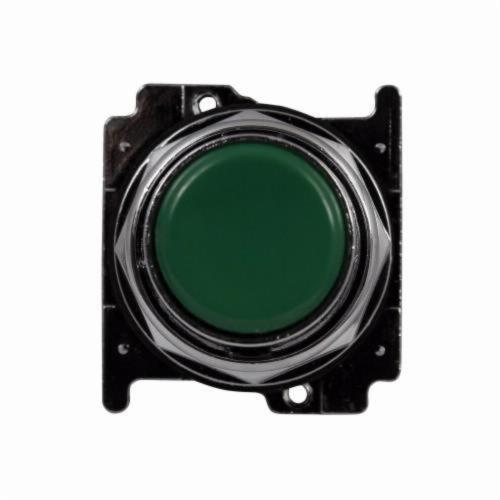

EATON Non-illuminated Pushbutton Operator, Heavy Duty Oil/Watertight, Series: 10250T, 30.5 mm Size, Momentary Contact Mode, 10 A at 600 VAC/VDC Contact, Extended Button Operator, NEMA 3/3R/4/4X/12/13/IP65 Enclosure, Bezel/Housing: Polished Chrome Bezel, 1 to 150 deg F, Die-Cast Zinc, Green

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_3a95b33e7e7f7144599c61d83104e1ed51ee5bb42448d19c05b5c0278a0498df.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_3a95b33e7e7f7144599c61d83104e1ed51ee5bb42448d19c05b5c0278a0498df.pdf
• VIDEO LINK http://videos.eaton.com/detail/video/6243433319001/how-to-size-and-select-a-power-supply?autoStart=true&q=power%20supplies

• Heavy duty die-cast zinc construction
• Enclosed silver contacts with reliability nibs
• Diaphragm seals with drainage holes
• Grounding nibs on the operator casing
• Reliability nibs improve contact reliability even under dry circuit and fine dust conditions
• Drainage holes prevent build-up of liquid inside the operator which can prevent operation in freezing environments
• Grounding nibs bite through paint and other coatings to provide secure ground
