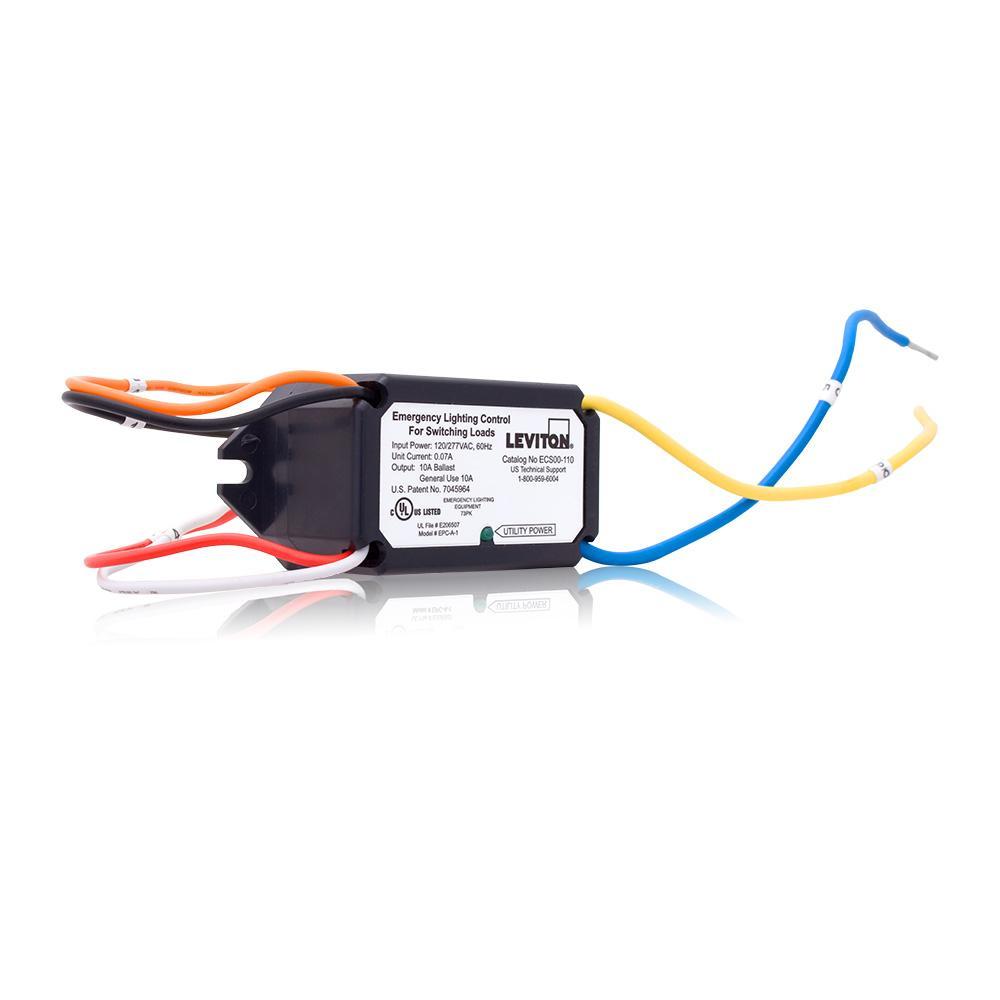

Leviton®, ECS00-110, Switching Control, 120 to 277 VAC, 10 A, 1-3/4 in H x 3-3/4 in W x 1-1/2 in D Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_ECS00_110_Installation.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_ECS00_110_Installation.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_b69c1f37d74651a07399211e469f3e263f8ab81370abfd0c4230fb6ffab3ba07.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_b69c1f37d74651a07399211e469f3e263f8ab81370abfd0c4230fb6ffab3ba07.pdf

• Green LED for utility power for easy verification of normal power
• Automatic diagnostic when the room switch is turned OFF
• Emergency luminaries stay ON for 2.5 sec
• Power indicator LED for utility power for easy verification
• Compatible with all switching controls including occupancy sensors, relay panels and switches
• Local room switch or lighting control turns both regular and emergency luminaries on at the same time eliminating the need for a dedicated emergency room switch
• Switching loads transfer and shunt relay
• +/- 15% tolerance
• Up to 50000 V high voltage surge protection
• NC contacts
• Mounts inside a 4-11/16 in (119.06mm) junction box with an extension and blank cover
• 32 to 140 deg F ambient temperature
• IP20 NEMA rating
