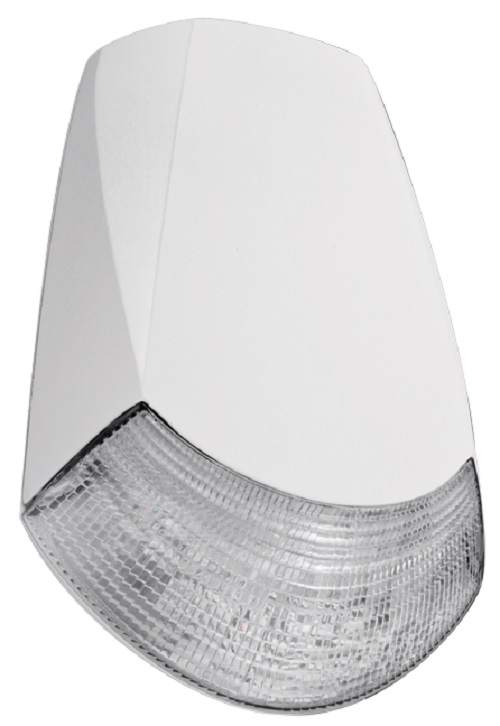

Lithonia Lighting® Affinity® Emergency Lighting Unit, Architectural Compact Low Profile, Series: AFFINITY, 120 to 277 VAC, 6 VDC, 0.23/0.25 A, Incandescent Lamp, Ni-Cd Battery Power Source, Universal Wall Mounting, 9-1/2 in H x 6-1/2 in W x 2-3/4 in D Dimensions, Die Cast Aluminum, White

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_5dff67e2f45e4b29e85d5cb275f98a0497c077c18245c14d4fa21914e8866b82.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_5dff67e2f45e4b29e85d5cb275f98a0497c077c18245c14d4fa21914e8866b82.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_5f935439b3a1f6dc831ed9a47306380a6e0c852b96bfb2d191e3263e149499bb.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_5f935439b3a1f6dc831ed9a47306380a6e0c852b96bfb2d191e3263e149499bb.pdf

• Provides a minimum of 90 min of illumination for the rated wattage upon loss of AC power
• Compact, low profile, architectural design with die cast aluminum housing
• The self-diagnostic emergency units comply with NFPA life safety Code® and automatically test the battery once a month for five min and once every six months for 30 min
• Standard optics provided with two 6 W wedge-base xenon lamps offer 55% more light output than standard incandescent lamps
• Patented reflector/refractor design features superior vac-metalized, die-casted reflectors and multi-faceted, highly transmissive refractors that significantly improve photometrics
• Low profile, integrated test switch/pilot light located below the lens
• Rigid conduit entry provision on top of the unit
• High temperature range nickel-cadmium battery listed from 0 to 122 deg F, self-diagnostics, time delay, listed for cold weather, damp and wet location
• Edge connector on printed circuit board ensures long term durability
• Universal J-box mounting pattern
• Easily visible green status indicator
• Automatic 48 hr recharge after a 90 min discharge
• Low voltage disconnect prevents excessively deep discharge that can permanently damage the battery, single circuit battery connection
• Current limiting charger maximizes battery life and minimizes energy consumption and provides low operating costs
• Short-circuit protection current-limiting charger circuitry protects printed circuit board from shorts, thermal compensation adjusts charger output to provide optimum charge voltage relative to ambient temperature range
• Thermal protection senses circuitry temperature range and adjusts charge current to prevent overheating and charger failure
• Thermal compensation adjusts charger output to provide optimum charge voltage relative to ambient temperature range
• Regulated charge voltage maintains constant-charge voltage over a wide range of line voltages, prevents over/undercharging that shortens battery life and reduces capacity
• Filtered charger input minimizes charge voltage ripple and extends battery life
• AC/LVD reset allows battery connection before AC power is applied and prevents battery damage from deep discharge
