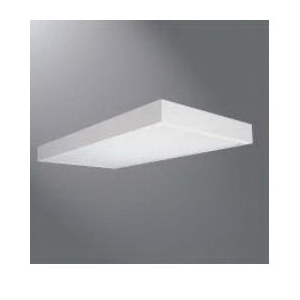

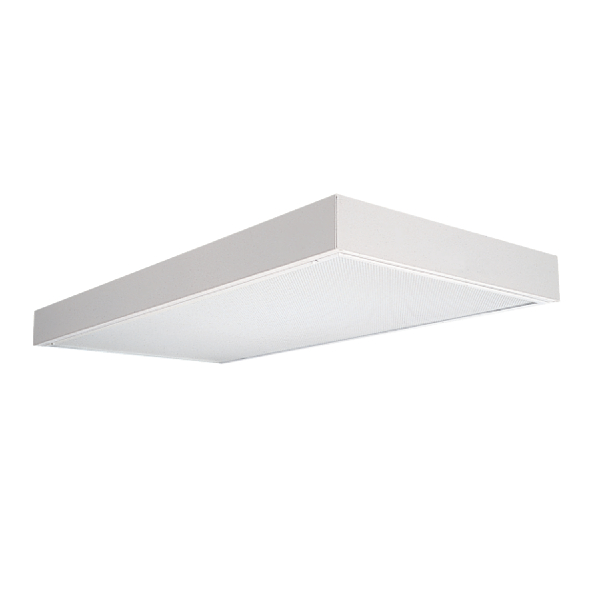

The M series combines a low-profile, surface modular design with the latest in energy-efficient technology. The dihedral recessed top design allows for cooler fixture operation. Other features include a die-formed housing, surface or stem mounting (single or continuous row), full seam welded corners and a broad selection of attractive door frames. The versatile modular M series can be the perfect solution when used in applications such as commercial office spaces, schools, hospitals and retail merchandising areas.

Metalux Commercial Surface Mount Fixture, Modular, Series: M Series, 120/277 VAC, 0.386 A, T8 Fluorescent Lamp, 128 W Lamp, 4 Lamps, Instant Start Electronic Ballast, Surface Mounting, Cold Rolled Steel Housing Material, Baked White Enamel Housing Finish, 48.5 in L x 24.188 in W x 4.25 in H Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_d1d0b6236333c36fd15bdba92bc99420c802754cf57b67d6964e0a6695186669.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_d1d0b6236333c36fd15bdba92bc99420c802754cf57b67d6964e0a6695186669.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_5406c0f66a3cfff9d68250c585ab0aea7cbdf72c085dfb11c706f7f17d368d74.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_5406c0f66a3cfff9d68250c585ab0aea7cbdf72c085dfb11c706f7f17d368d74.pdf

• Housing die formed code gauge prime cold rolled steel
• Smooth sides permit flush joint for continuous row mounting
• Full seam welded corners
• Dihedral recessed top design insures cooler ballast operation
• Die formed captive lamp holder bracket fully encloses lamp holder wiring for easy lamp holder replacement
• Ballast covers easily removed without tools
• Ballasts are CBM/ETL Class P and are positively secured by mounting bolts
• Total Harmonic Distortion < 10%
• No 12 pattern acrylic
• Equipped with energy saving ballasts
