Eaton offers a wide variety of solutions for horizontal and vertical cable runs between racks and enclosures. All cable pathway devices are UL classified and meet or exceed TIA/ EIA standards for cable pathways.

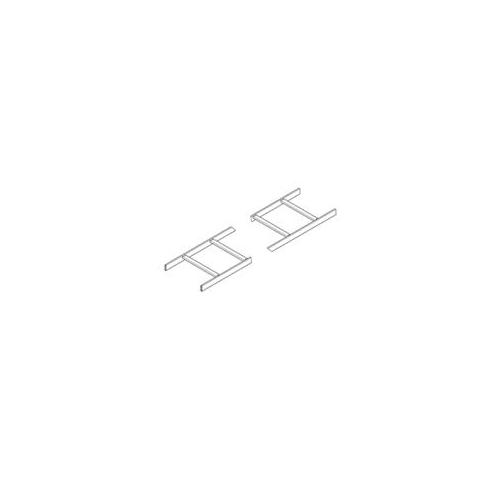

B-Line Runway Tubular Stringer, Series: SB16, 119-1/2 in Length, 24 in Width, Tubular Side Rail, 2 in Side Rail Height, 254/163/113/83/63 ft-lb Capacity, 9 in Rung Spacing, Steel, Flat Black, Powder Coated

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/B-Line_SB2101ABZ_User_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/B-Line_SB2101ABZ_User_Manual.pdf

• 1/2 x 1 in 11 ga steel channel welded rungs spaced 9 in on center
• All finishes are UL classified as suitable as an equipment grounding conductor (File No. E60548)
• 13/32 in holes provided in solid bar stringer for use with SB2135 heavy duty splice
• Load will be 292 lb/ft for 4 ft span, 292 lb/ft for 5 ft span, 250 lb/ft for 6 ft span, 184 lb/ft for 7 ft span and 141 lb/ft for 8 ft span
• 1/2 in x 1 in, 11 ga THK rung size
