The eXtreme® Cat 5e component rated UTP connector is designed to be used with all Leviton® QuickPort® compatible products. The connector includes patented retention force technology which promotes consistent performance over the life of the system. It includes unique pair separation towers allowing for quicker and easier terminations. The connector is in a 180 deg configuration with the punch field in the back, allowing for rear termination.

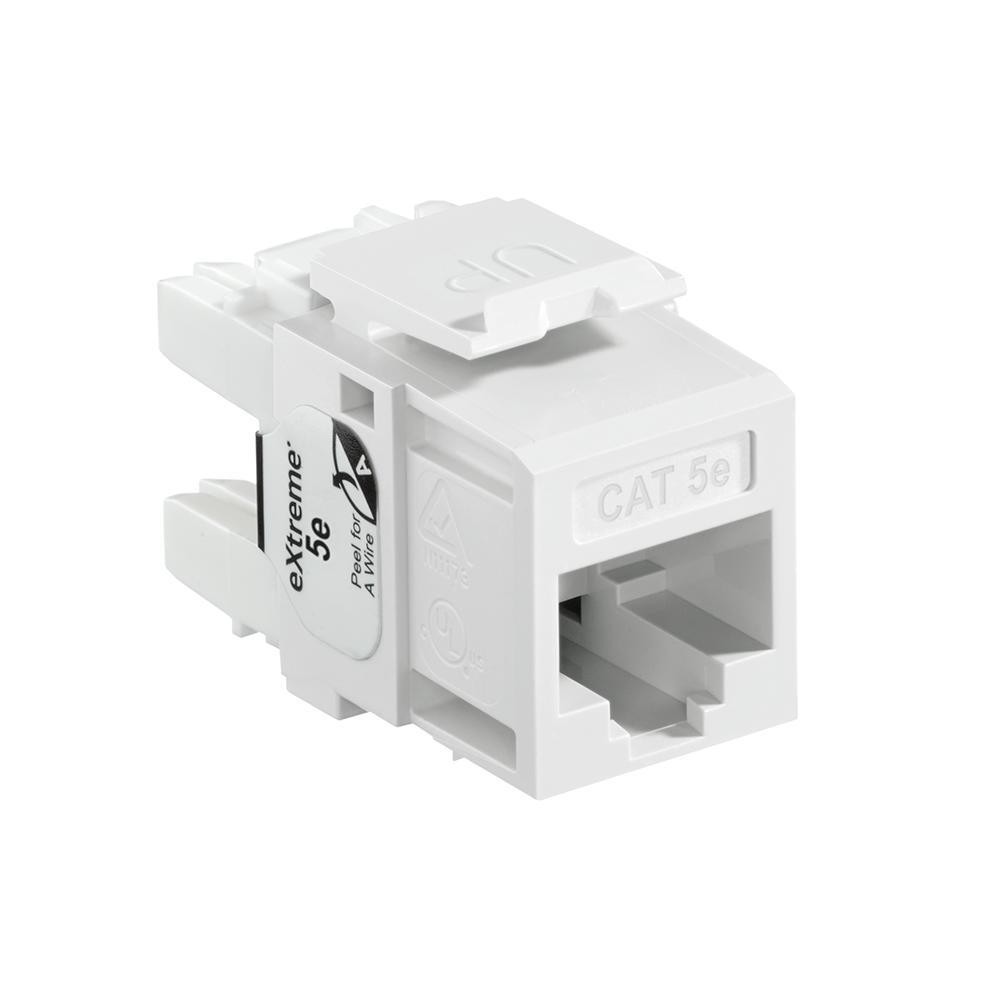

Leviton® GigaMax® QuickPort® UTP Connector, 8-Conductor 8-Position Component Rated, Cat 5e Module, Panel Mounting, 1 Ports, Plastic, White, 0.89 in H x 0.64 in W x 1.21 in D Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/eXtreme_GigaMax_QuickPort_5G110_BB5_Installation_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/eXtreme_GigaMax_QuickPort_5G110_BB5_Installation_Sheet.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_9135f4f0b137eac7d12ebe4fc1b541f6a2471273c492937f8d523c5da84afb17.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_9135f4f0b137eac7d12ebe4fc1b541f6a2471273c492937f8d523c5da84afb17.pdf
• VIDEO LINK https://www.youtube.com/embed/WkXmIbKL0X8?rel=0

• Fire retardant
• Patented retention force technology (RFT) protects tines from damage and increases system longevity
• Unique pair separation tower (PST) allowing for quick and easier termination
• Dual layer T568B/T568A wiring label simplifies punchdown
• Terminates 26 to 22 AWG solid conductor
• Gastight IDC connectors prevent corrosion
• Pair separation tower design facilitates separation of conductors and minimizes untwisting
• 180 deg configuration allows for rear termination
• Capable of multiple re-termination
• High quality copper based alloy plated with 50 micro-in of gold over 100 micro-in of nickel
