Power Sentry® batteries fit in the tightest of applications, including low profile lensed troffers, down lighting and industrial lighting fixtures. They also feature an innovative Quick-Disconnect wiring harness that makes field maintenance and upgrades quick and easy, Factory or field install inside or outside (field only) fluorescent fixture to operate lamp(s) at an initial output of 10% to 95% of rated lamp lumens, providing optimum, glare free illumination for 90 min upon interruption of normal power.

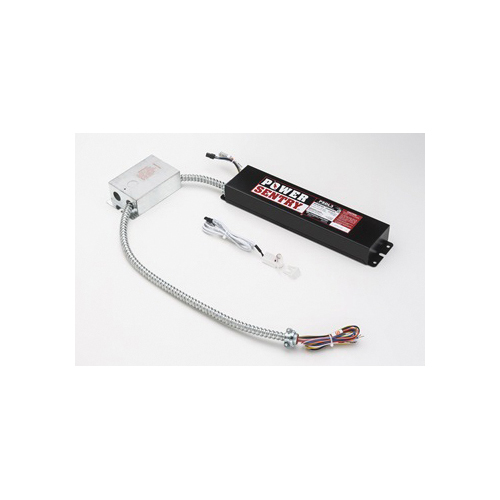

Lithonia Lighting®, PSDL3 M6, Battery Pack, Series: PSDL3, 120/277 VAC, Steel, Black, 14-1/2 in L x 3-3/16 in W x 1-11/16 in H Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_a1f5d9963161a09918c16c49bfc30e848426835b73da7f6da38c6ae9f9e62d15.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_a1f5d9963161a09918c16c49bfc30e848426835b73da7f6da38c6ae9f9e62d15.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_5f935439b3a1f6dc831ed9a47306380a6e0c852b96bfb2d191e3263e149499bb.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_5f935439b3a1f6dc831ed9a47306380a6e0c852b96bfb2d191e3263e149499bb.pdf

• Sealed, maintenance free, high temperature range nickel cadmium battery ensures long life over wide temperature ranges
• Pilot light and test switch provide visual and manual means of monitoring system operation
• Constant current series resistor type charge
• High efficiency push-pull inverter is the most effective method of converting DC
• Power to AC power, it provides maximum light output, battery life and reliability
• For indoor environment
• Black color
• Black, 20 ga steel, permanently sealed housing, dual-voltage input capability
• Automatic battery recharge after 90 minute discharge
• Polarized quick connect light/switch assembly simplifies installation
• Integrated test switch/pilot light that requires only one hole drilling
• Polarized battery connector simplifies maintenance and prevents charger damage due to improper connection
• Factory or field-install inside or outside (field only) fluorescent fixture to operate lamps at an initial output of 10% to 95% of rated lamp lumens, providing optimum, glare-free illumination for 90 minutes upon interruption of normal power
