Demand more flexibility. Eaton's PowerXL DG1 general purpose, variable frequency drives are engineered for today’s demanding commercial and industrial applications. With an industry leading energy efficiency algorithm, high short-circuit current rating and robust design, the DG1 offers customers increased efficiency, safety and reliability.

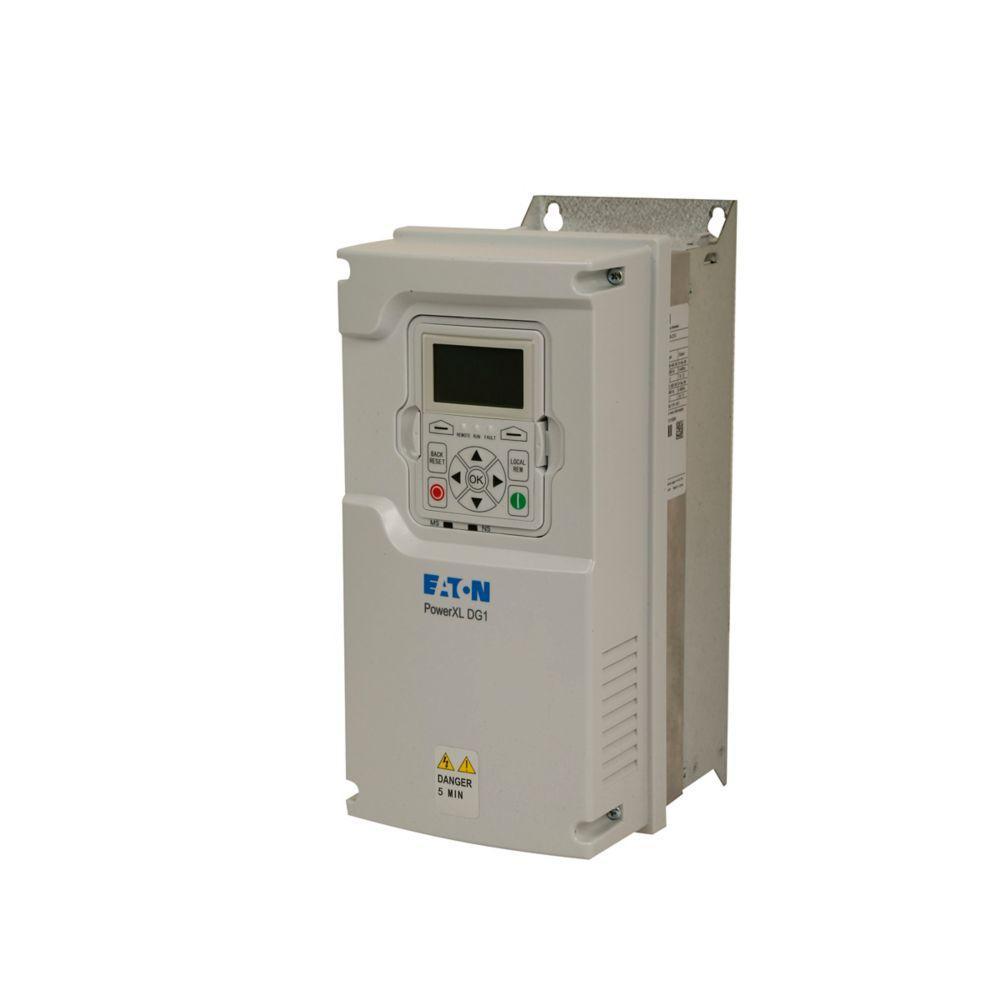

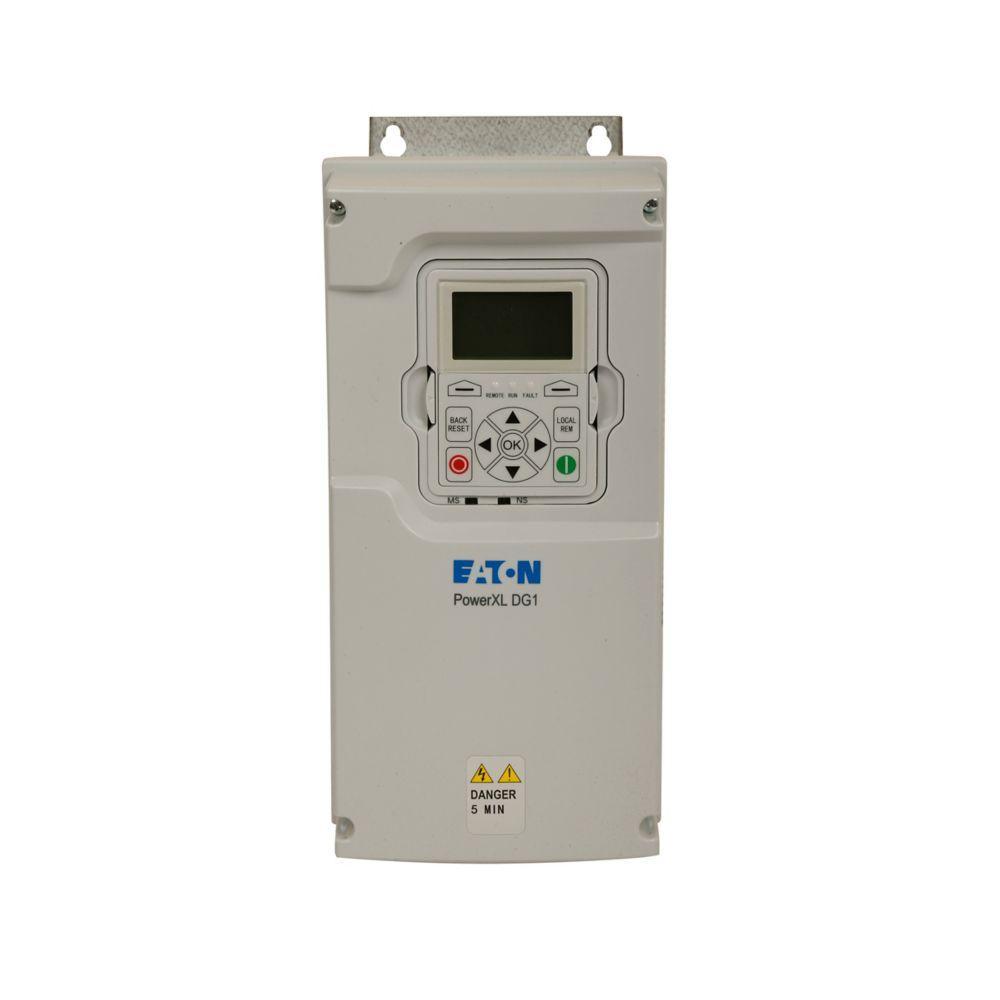

EATON PowerXL™ Variable Frequency Drive, 3-Phase Adjustable General Purpose, Series: DG1, 380 to 500 VAC, 9 A, 5 hp, 6.61 in Width, 9.63 in Depth, 16-1/2 in Height, NEMA 1/IP21 Enclosure, LCD Display

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/HVX060A1_4A1N1B5C4_Catalog.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/HVX060A1_4A1N1B5C4_Catalog.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/DG1_349D0FB_C54C_Installation_Manual_04.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/DG1_349D0FB_C54C_Installation_Manual_04.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/DG1_347D6FB_C21C_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/DG1_347D6FB_C21C_Specification_Sheet.pdf

• Brake chopper standard on frames 0, 1, 2, 3
• Dual overload ratings 110% variable torque (IL) and 150% constant torque (IH)
• Open type/IP00 or IP20 or type 1/IP21 or type 12/ IP54 enclosures available
• Integrated common mode reduction 5% DC link choke with input surge protection
• EMI/RFI filters standard on all drives meets EMC Cat C2
• Real time clock supports calendaring and PLC functionality
• Graphic LCD display and keypad supports simple menu navigation as well as on screen diagnostics and troubleshooting
• Local/remote operation from keypad and 2-configurable soft keys
• Conformal coated control and power boards standard
• Control logic can be powered from an external auxiliary control panel, internal drive functions and fieldbus if necessary
• Standard I/O 8DI, 1DO, 2AI, 2AO and 2FC, 1FA relays
• Standard communications Ethernet/IP, Modbus® TCP and RS-485 Modbus® RTU, BACnet MS/TP
• Seamless integration into Ethernet/IP networks via EIP-Assist I/O tag generation tool
• 2-expansion slots intended to support additional I/O or communication protocols as necessary
• Quick-disconnect terminals for I/O connections supports fast easy installation
• Safe torque Off (STO) built-in with functional safety SIL1 certification
• Active energy control minimizes energy losses in your motor, resulting in industry leading energy efficiency for your application
• Quick-start wizard upon initial power-up supports fast, easy installation
• Standard applications standard, multi-pump and fan control, Multi-PID and multi-purpose
• Copy/paste functionality on drive keypad allows for fast setup of multiple drives
