Eaton's B-Line series JIC panel enclosures provide reliable environmental protection and are used to house electrical controls and instruments, but are also commonly used as industrial wiring, junction, pull, and termination boxes.

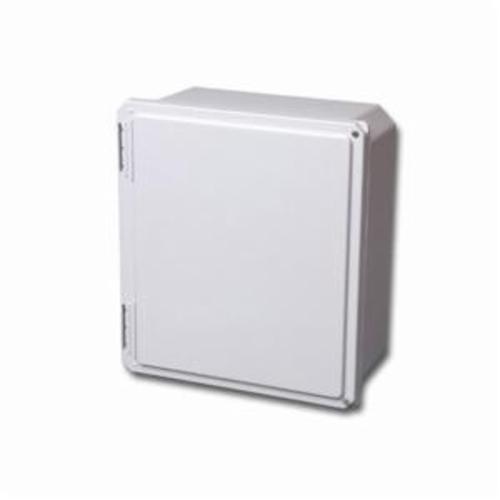

B-Line, 16148-SDF, Screw Cover, Series: Premier™, 15.96 in Width, 8.34 in Depth, 17.58 in Height, NEMA 4X NEMA Rating, Hinged Cover, Lock: Screw, Wall Mounting, -40 to 250 deg F, Fiberglass, Gray

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_f310ce96ab5262a5de95568f9ee7ad0c0c6073c4aba04295708b5f99798c008f.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_f310ce96ab5262a5de95568f9ee7ad0c0c6073c4aba04295708b5f99798c008f.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/B_Line_16148_SDF_Data_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/B_Line_16148_SDF_Data_Sheet.pdf

• Enclosures are an impact resistant, non-conductive, lightweight hot compression molded fiberglass-reinforced polyester
• Ideally suited for harsh environments
• NEMA standard for type 1, type 3, type 3s, type 4X, type 12, type 13
• Poured polyurethane seamless gasket provides watertight, dust-tight environmental seal
• Captive screws provide smooth surfaces
• 300 series stainless steel used on all external hardware
• Rounded edges reduce build-up of dust and debris
• Full 180 deg door opening
• Stainless screws
• Integral mounting bosses utilize threaded brass inserts accepting no 10-32 screws for mounting optional panel
• Houses electrical and electronic controls and instruments
• Protects against corrosion, windblown dust and rain, splashing water, and hose directed water
