Eaton’s electronic motor starter (EMS) is equipped with a?solid-state?contactor and built-in overload protection in a compact, easy-to-install package. The EMS is capable of providing forward and reversing functions without the need for an additional contactor. It is also equipped with an?optional emergency-stop feature built into the firmware. This compact solution provides up to 78% space savings over traditional electromechanical starters.

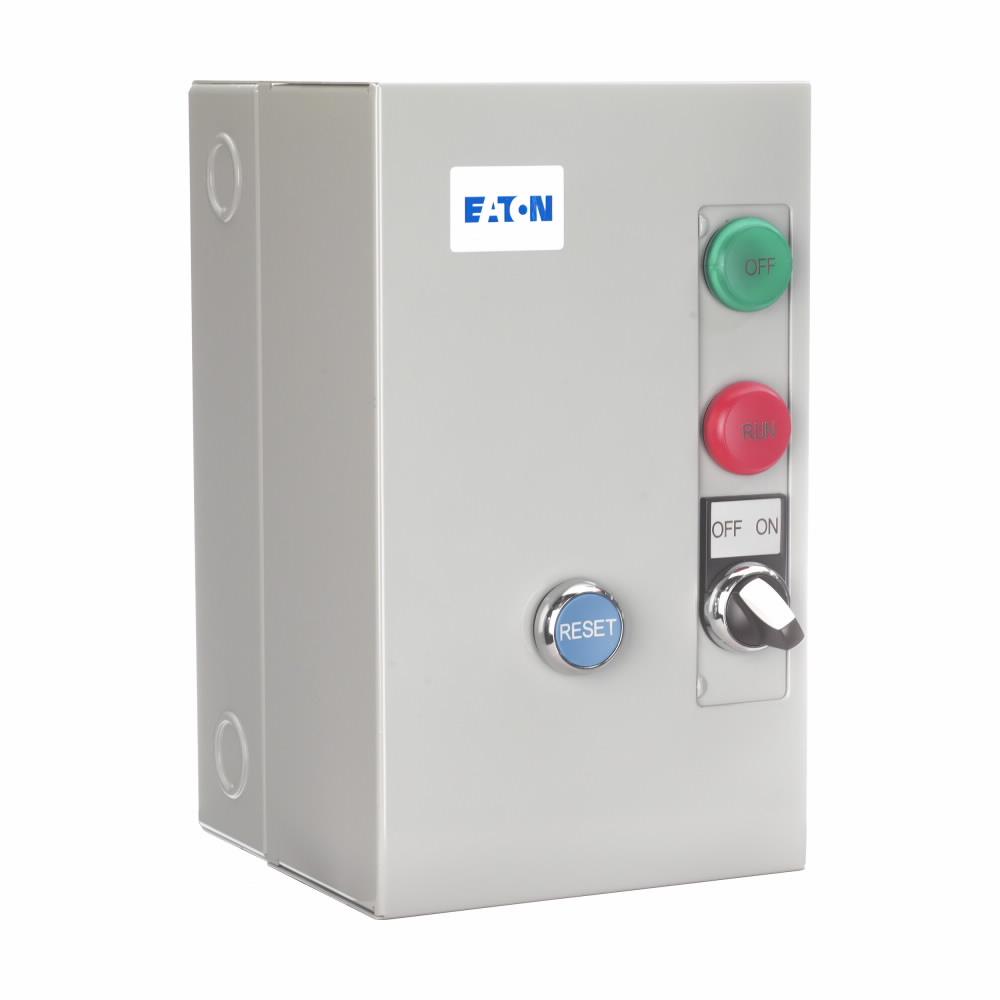

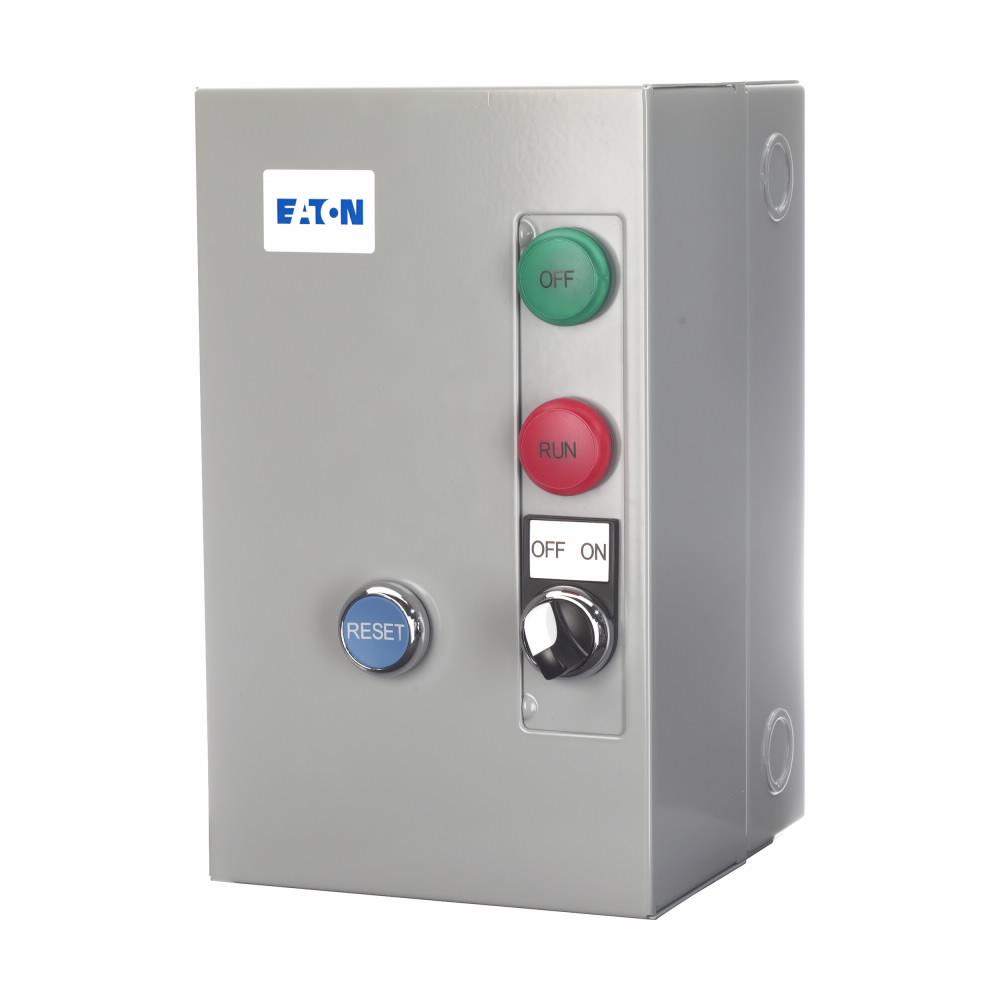

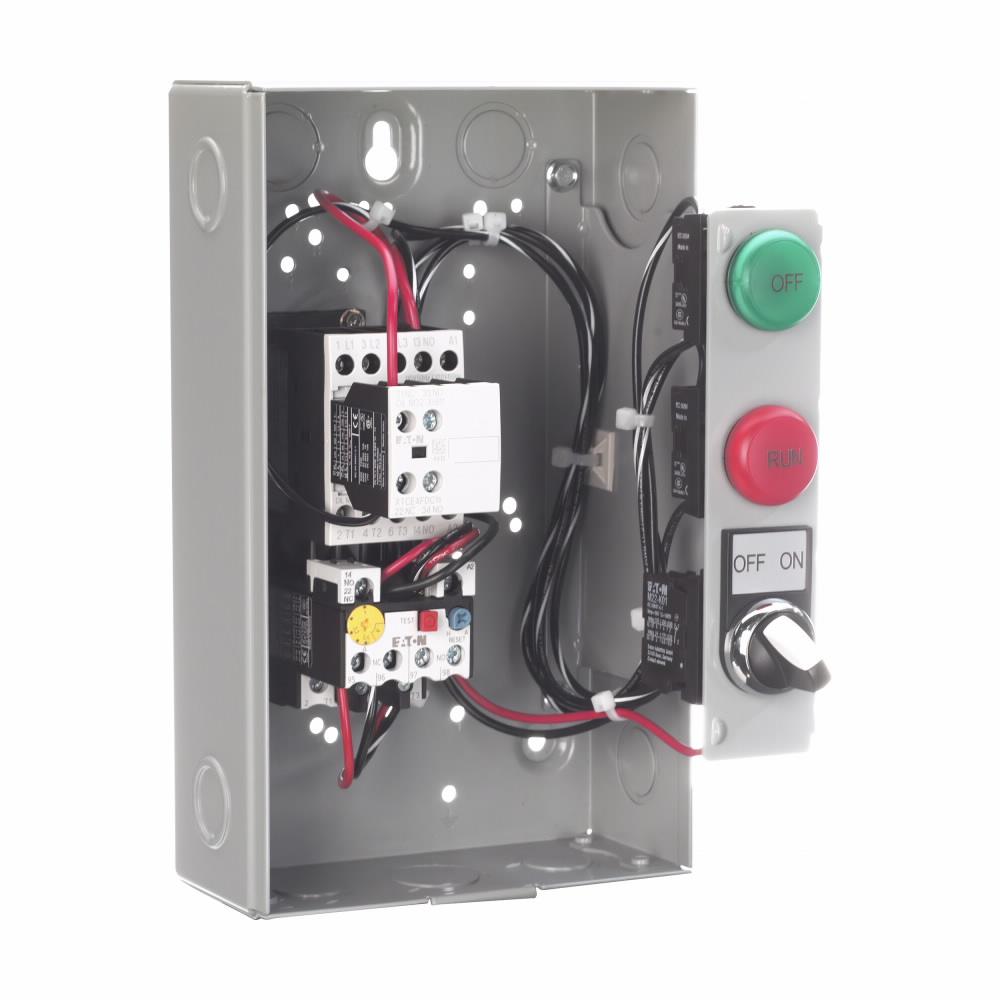

EATON IEC Non-Combination Starter, Magnetic Metallic Non-Reversing, Series: XT Series, 575 VAC, 9 A, 60 Hz Frequency, 2 hp Motor, 208 VAC Coil, Setting: 4 to 20 A, 3 ph, XTOE Electronic Overload Relay, 1NO 1NC Auxiliary, NEMA 1/IP23 Enclosure, Starting Modes: Start-Stop, Painted Steel, 13 to 122 deg F Operating, 14 in L x 9 in W x 8.5 in H Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/ECX11G1CAA_M_Catalog.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/ECX11G1CAA_M_Catalog.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/ECX09B5AAA_E_User_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/ECX09B5AAA_E_User_Manual.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/E2MEM3800M2WU66_Warranty.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/E2MEM3800M2WU66_Warranty.pdf

• Low power consumption DC coils
• Plug-in accessories for reduced installation time
• 1 hp at 208 VAC 1 ph, 2 hp at 208 VAC 3 ph
