Eaton has enhanced its premium Type CH residential circuit breakers, making the best even better. These features further establish the CH series of products as “best-in-class”. Eaton offers CH 3/4 in circuit breakers with a thermal-magnetic trip curve that avoids nuisance tripping on mild overloads while reacting almost instantaneously to severe short-circuit conditions.

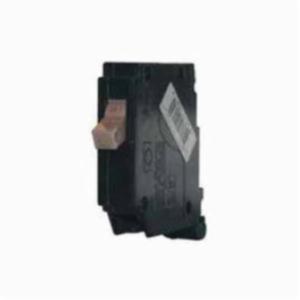

Cutler-Hammer Molded Case Circuit Breaker, Type CH Standard, 120/240 VAC, 10 A, 10 kA Interrupt, Long Time/Instantaneous Trip, 1 Pole, 1 Phase, 2-Position Handle Actuator, 14 to 8/14 to 10 AWG Wire, NEMA 1/3R, Plug-On Mount, 40 deg C, 3 in H x 3/4 in W x 3 in D, Bakelite, Black

• Catalog https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/Cutler_Hammer_BD2015_Catalog.pdf
• Video Link https://www.youtube.com/watch?v=604tzYeG0r4

• Space-saving 3/4 in design accommodates more breakers per panel
• Tri-Drive screw accepts flat, Robertson or Phillips drivers, making it easier for electricians to install
• Single and two-pole breakers up to 50 A
• Units feature a quick-make, quick-break switch mechanism combined with inverse time element tripping operation and trip-free handle design
• Type CH circuit breakers trip to the OFF position, eliminating nuisance callbacks
• CH interiors feature 100% copper bus
• Cu/Al wire
• Single pole requires one 3/4 in (19.1 mm) space
