Q-Line® circuit breakers are 1 in wide per pole, compact, thermal magnetic devices designed for residential and commercial applications. the QB breakers are bolt-on versions of the Q-Line® used for bolting to the bus connections of loadcenters and lighting panels. all Q-Line® circuit breakers feature quick-make quick-break mechanisms, common trip bars and easy to spot trip indication to ensure safety and reliability. Q-Line® breakers are available in 1, 2 and 3-pole versions, can be ordered with auxiliary contact and shunt trip accessories and can be ordered for use in HID applications.

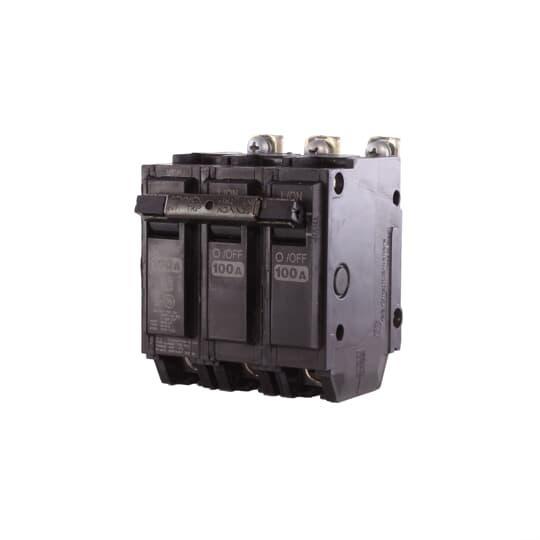

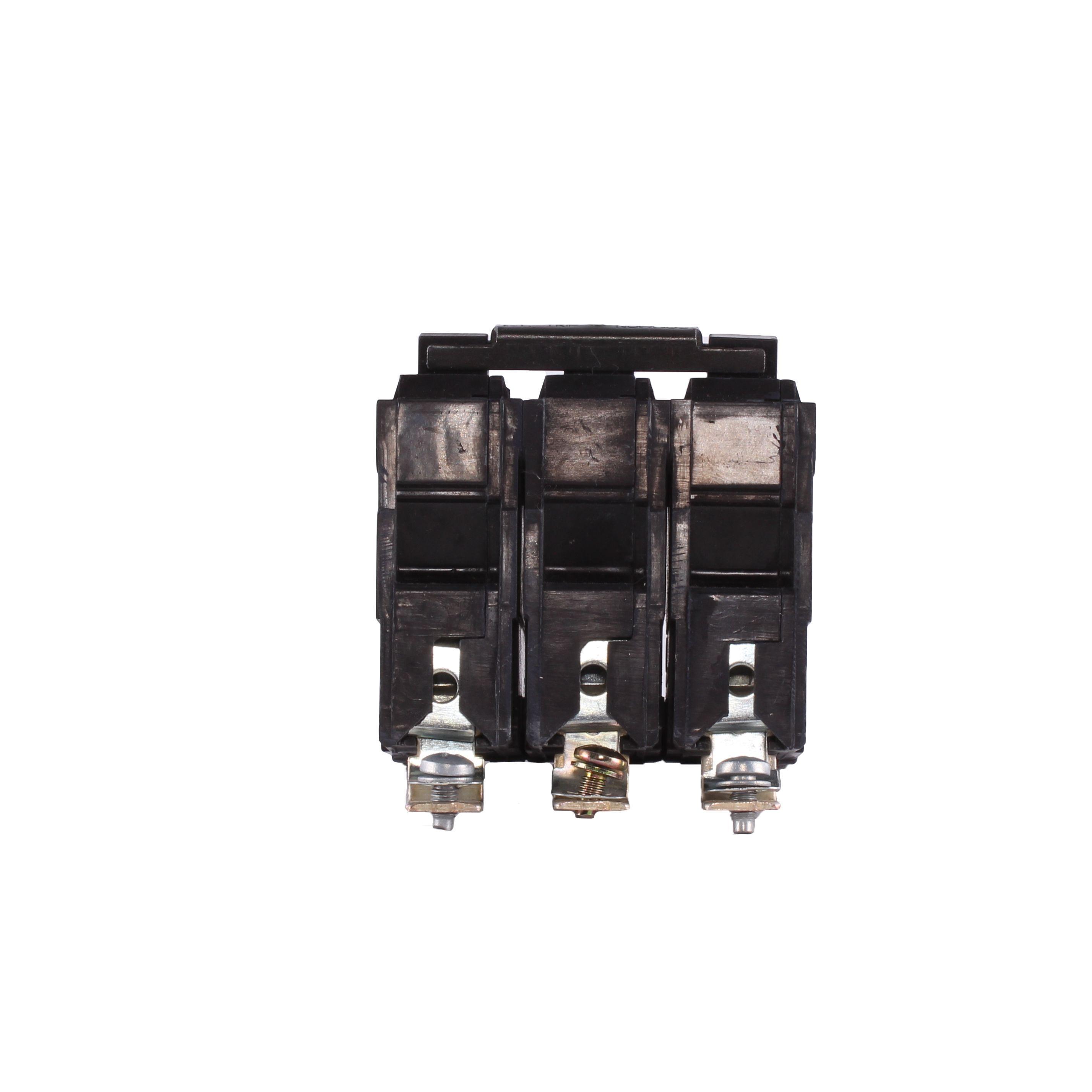

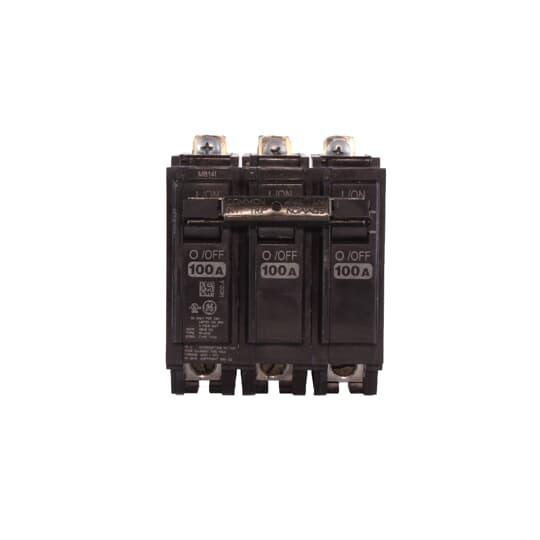

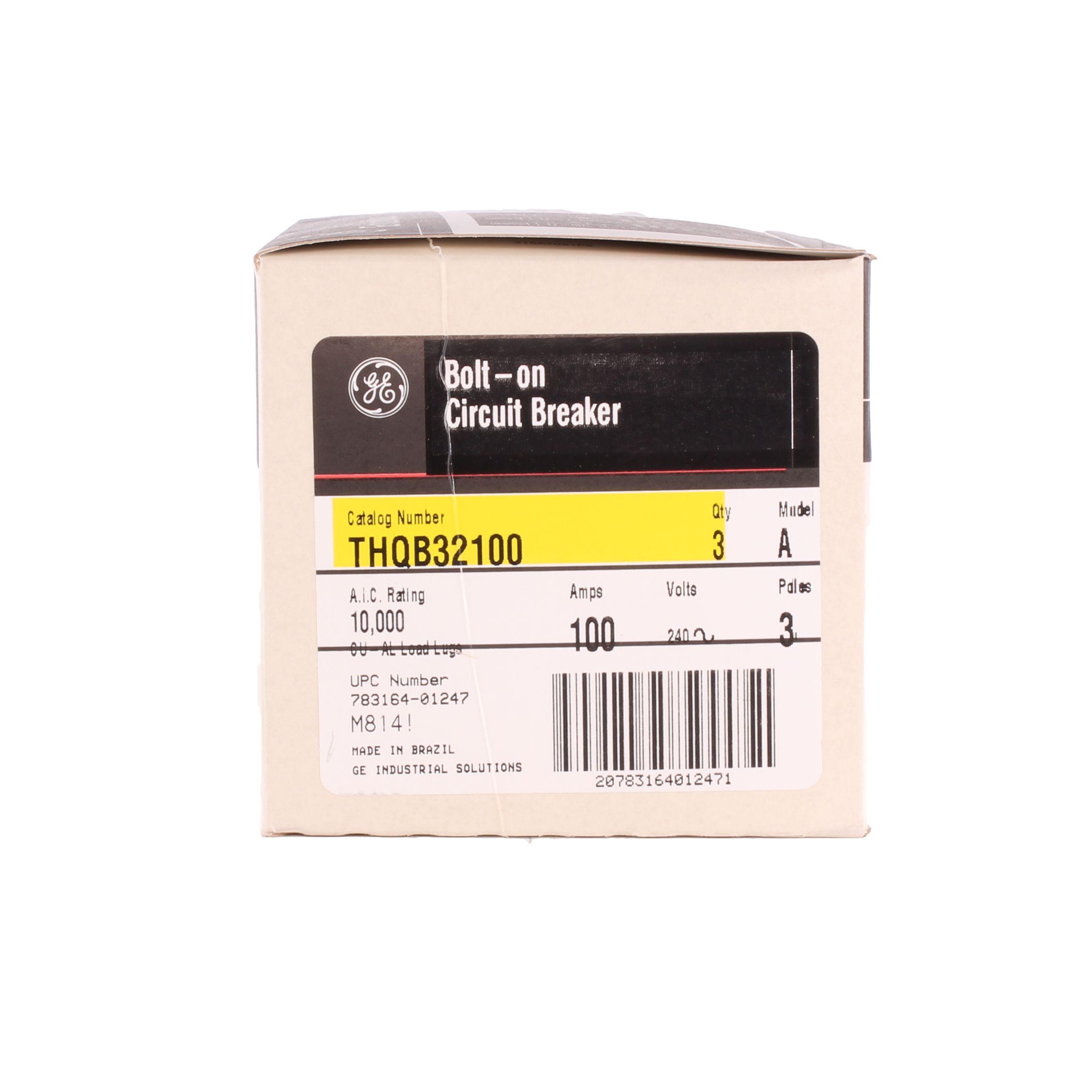

GE Q-Line® Miniature Circuit Breaker, 120/240 VAC, 100 A, 10 kA Interrupt, THQB Frame, Thermal Magnetic Trip, 3 Pole, 1 ph, 6 to 1/0 AWG Wire, Bolted-On Mounting, 60 to 75 deg C, 2-3/8 in L x 3 in W x 3-9/32 in H Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/GE_THQB32100_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/GE_THQB32100_Specification_Sheet.pdf

• Standard continuous current rated
• Fixed long time and fixed instantaneous trip function
• 4 to 1/0 AWG aluminum and 6 to 1/0 AWG copper
