Eaton's residential CH circuit breakers provide premium overload protection. The Type CH circuit breakers trip to the OFF position, eliminating nuisance callbacks. The CHF family also includes a trip flag to differentiate between a trip and the breaker being turned off. The thermal-magnetic trip curve avoids nuisance tripping on mild overloads while reacting almost instantaneously to severe short-circuit conditions. Multiple breakers have an internal common trip connection to operate all poles simultaneously. Handles are marked with ON-OFF indication and ampere rating of the breaker.

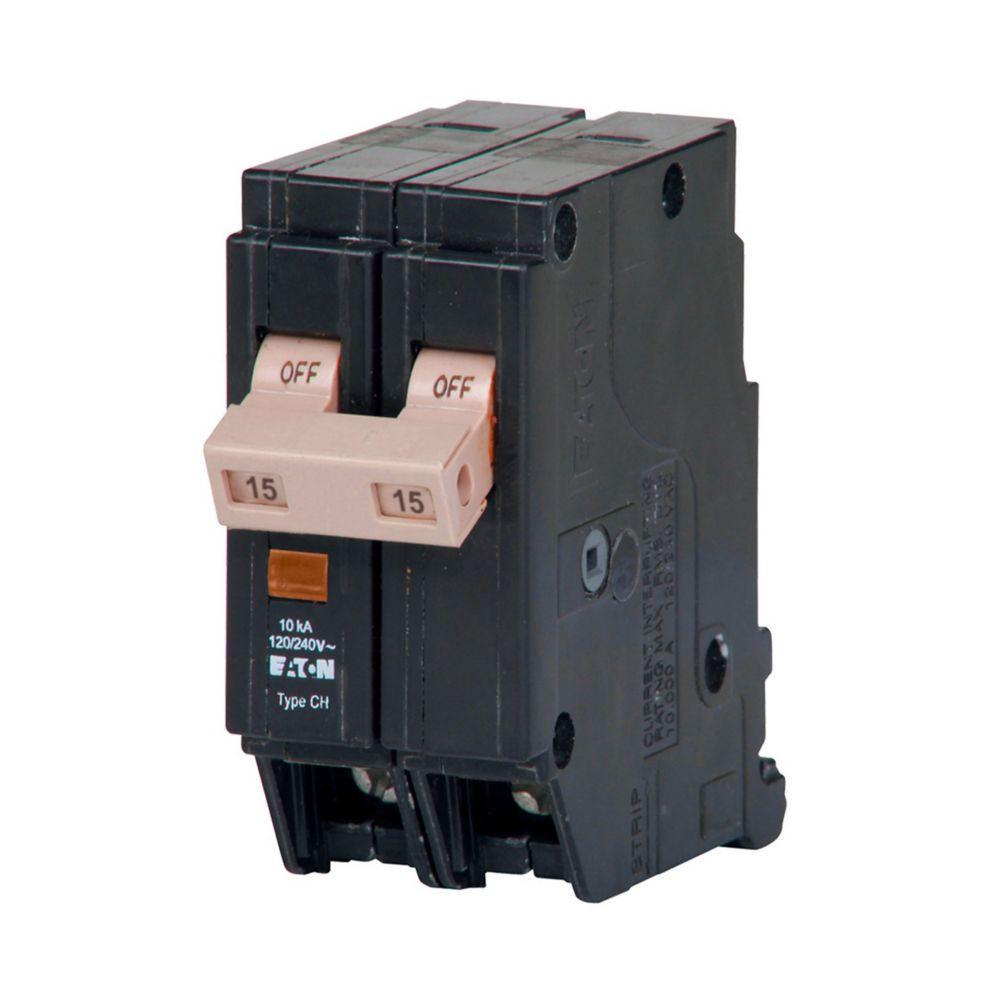

EATON Circuit Breaker, Type CHF Standard, 120/240 VAC, 15 A, 10 kA Interrupt, 2 Pole, 1 ph, Toggle Handle Actuator, Box Lug, (1) 14 to 8 AWG, (2) 14 to 10 AWG Copper/Aluminum Wire, Plug-On Mount, 60 to 75 deg C, 3 in L x 1-1/2 in W x 3-1/2 in H

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/CHF230_User_Manual_01.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/CHF230_User_Manual_01.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/EATON_CHF215_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/EATON_CHF215_Specification_Sheet.pdf

• One 14 to 8 AWG, (2) 14 to 10 AWG copper aluminum at 60 to 75 deg C wire
• Easy to install
• Easy to reset
• Best in class performance
• Circuit breaker is clearly marked identifying amperage, ratings and the brand
• Trip flag visibly indicates breaker status
• 3/4 in per pole
