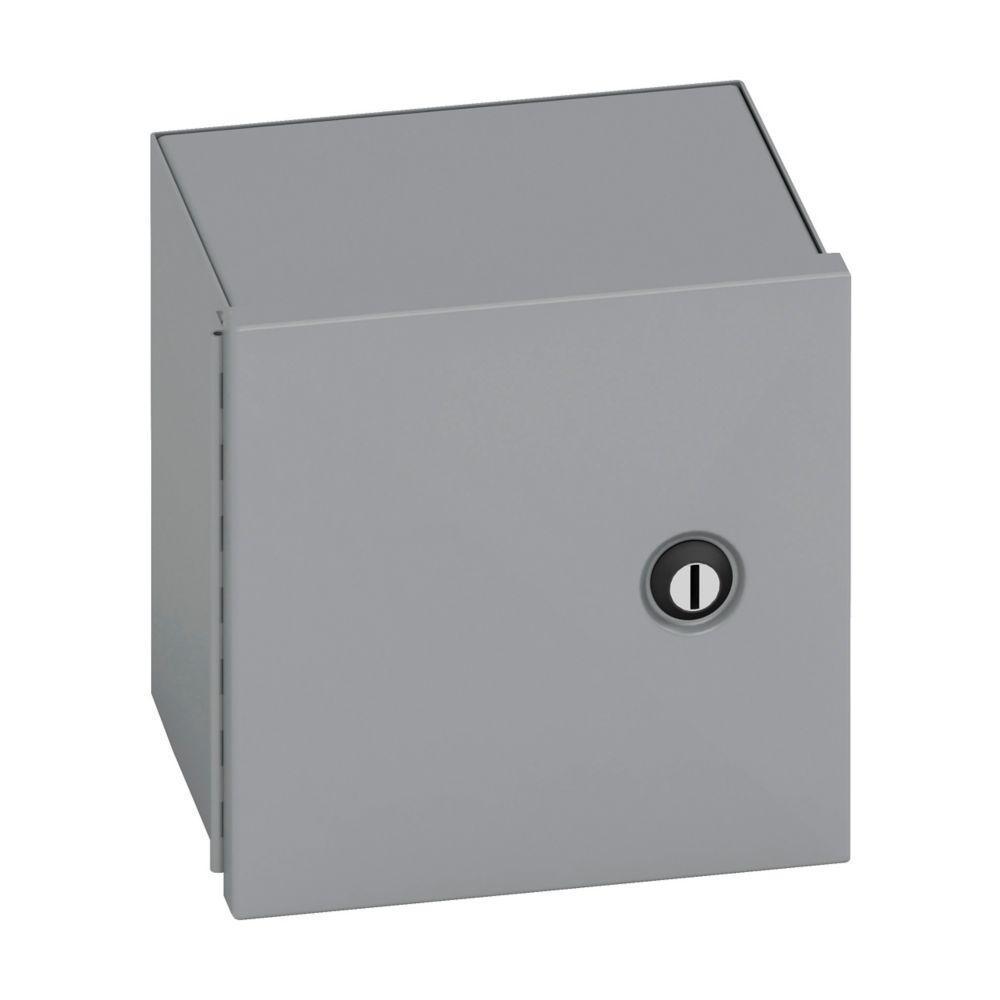

B-Line 866-1 D70 Subclass Small Panel Enclosure, 6 in W x 6 in D x 8 in H, NEMA 1/IP30 NEMA Rating, Carbon Steel

  • MPN: 866-1

  • IESPN: 59747

  • UPC: 782051154108

  • Min Order Qty: 1

  • Quantity Interval: 1

  • Sold as: EACH

    • Availability: loading

    • Branch Availability
B-Line 866-1

B-Line Panel Enclosure, D70 Subclass Small, 6 in Width, 6 in Depth, 8 in Height, NEMA 1/IP30 NEMA Rating, Continuous Hinged Cover, 4-1/4 in W x 6-1/4 in H Panel, Lock: Flush Coin Latch, Wall Mounting, Carbon Steel, Polyester Powder Coated, Gray

Type      D70 Subclass Small
Width      6 in
Depth      6 in
Height      8 in
NEMA Rating      NEMA 1/IP30
Cover Type      Continuous Hinged
Panel Size      4-1/4 in W x 6-1/4 in H
Lock      Flush Coin Latch
Mounting Type      Wall
Material      Carbon Steel
Finish      Polyester Powder Coated
Color      Gray
  • Enclosure and cover are fabricated from 16 ga steel
  • Enclosure body has mounting holes on the back which are accessible with or without the optional panel installed
  • Cover is secured to the body with a continuous hinge on one side and flush latch on the opposite side
  • Flush latch is designed to operate with either coin or screwdriver
  • No 10 to 32 provisions for mounting optional panel
