PowerMark® Gold™ loadcenters lower your costs by making installation faster and easier, increasing application flexibility and reducing inventory requirements. At the same time, they deliver obvious and significant advances in design, function and quality.

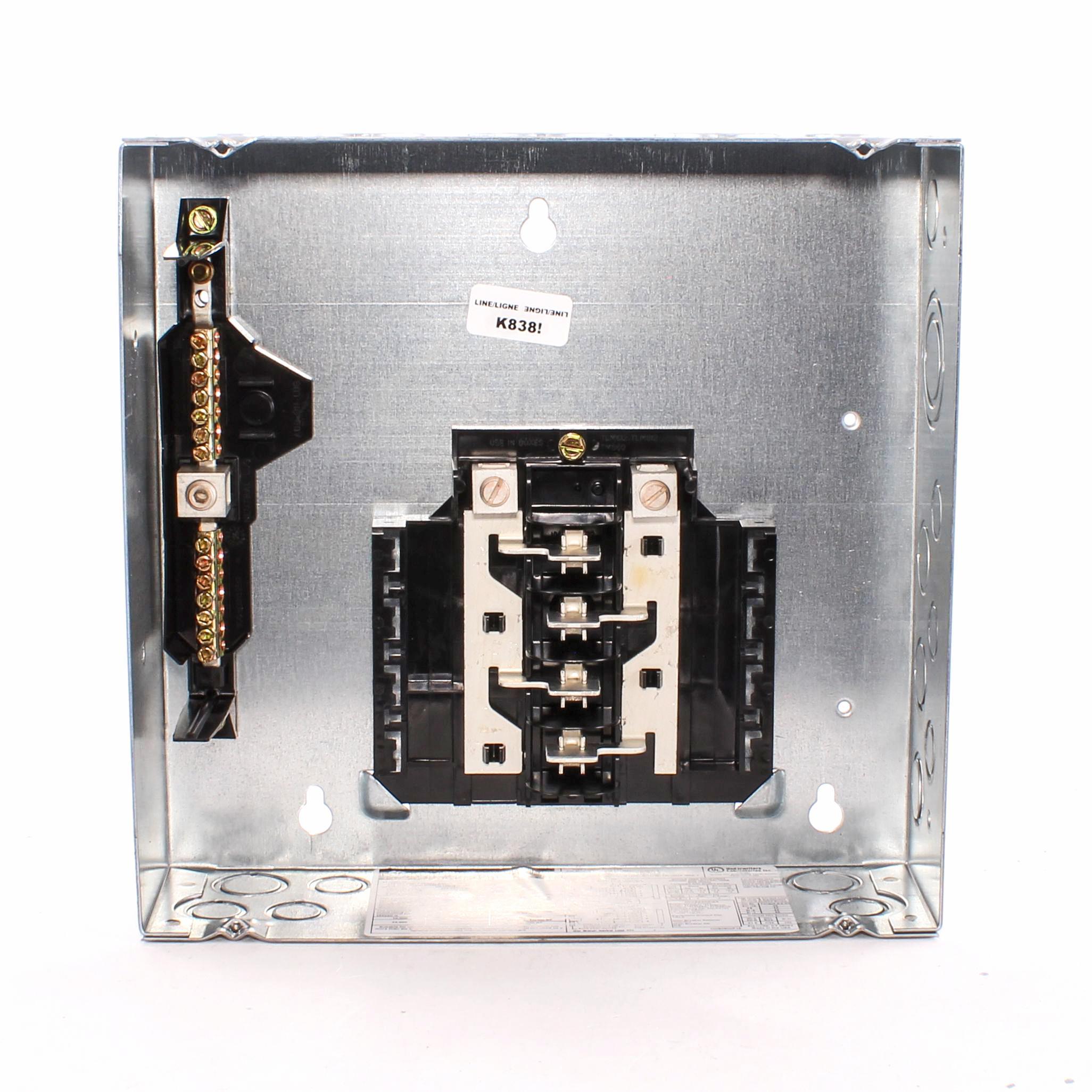

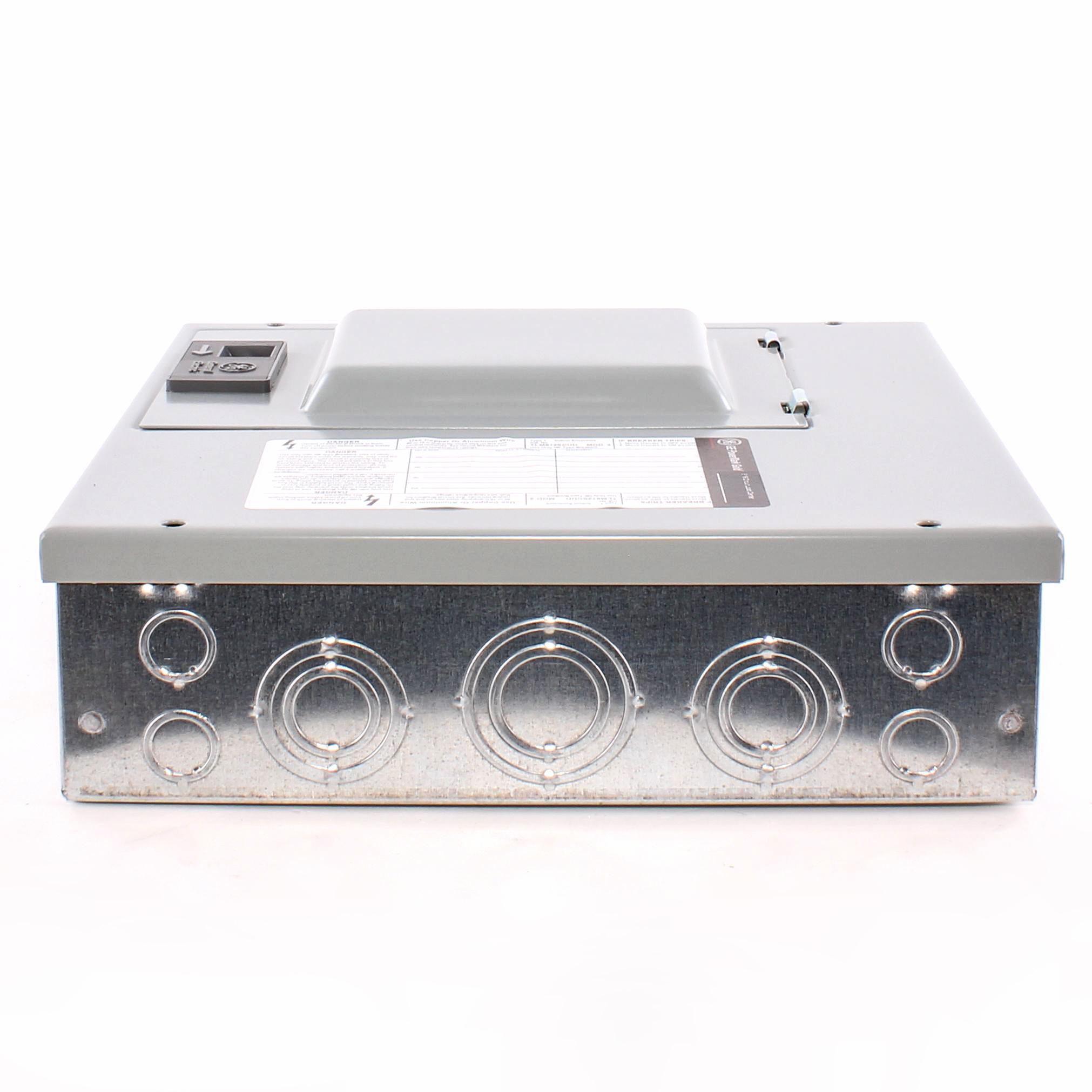

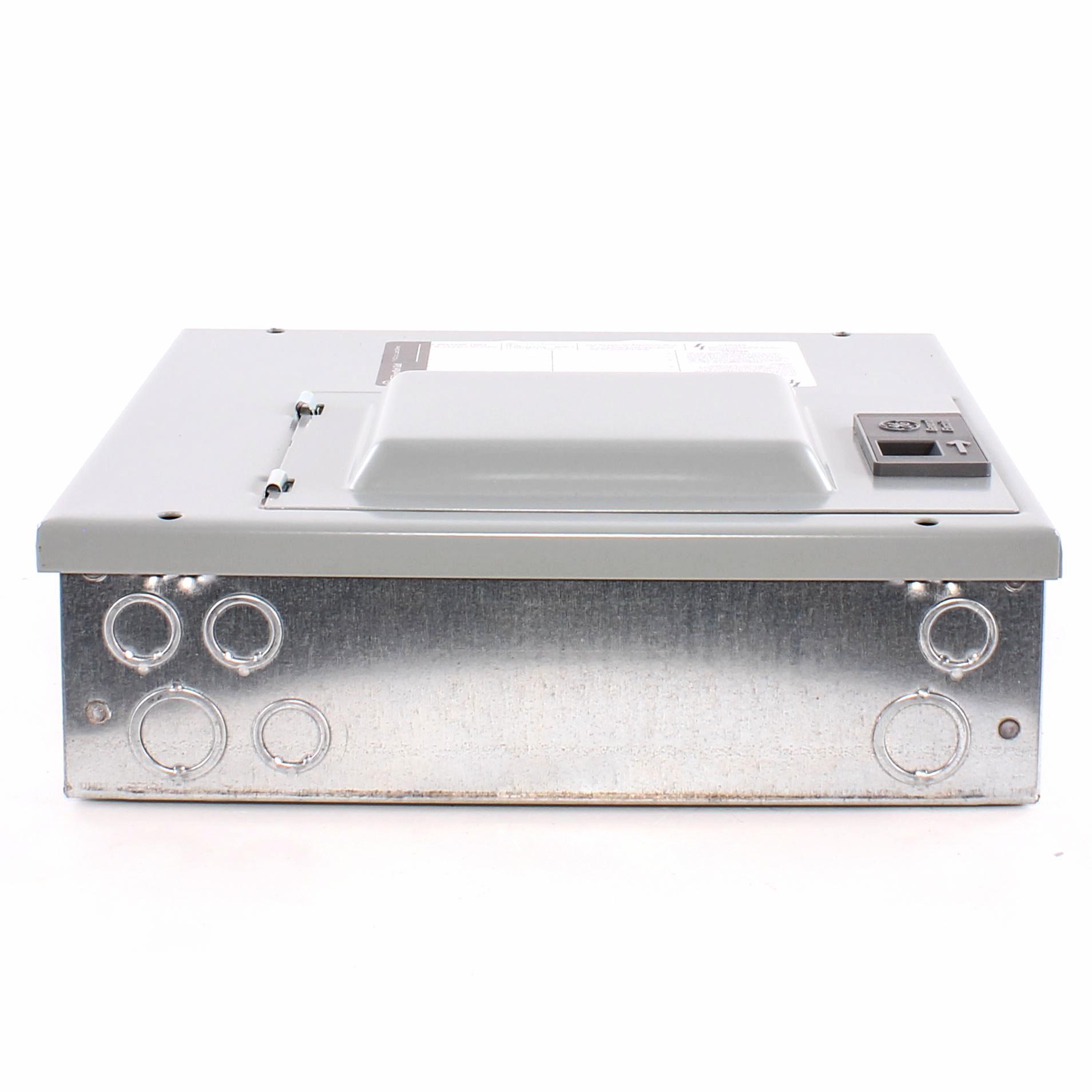

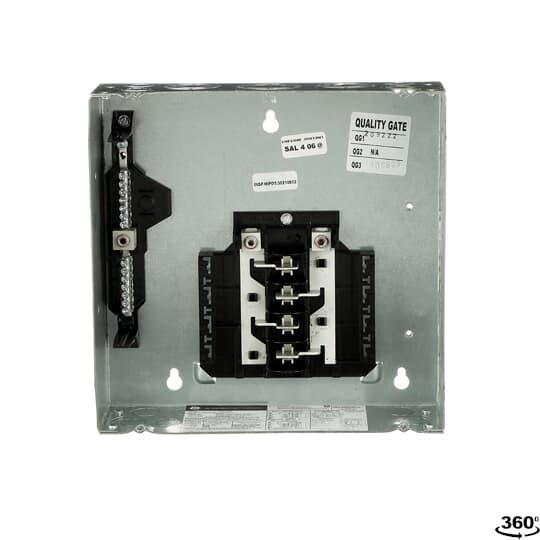

GE PowerMark Gold™ Industrial Solutions Convertible Main Lug Loadcenter, 1-Phase Standard, Series: TLM, 120/240 VAC, 125 A, 1 Pole, 22 kA Interrupt, 8 Circuits, THQL/THQP Breaker, 3-Wire Wiring Configuration, 8 Spaces, 6 to 1 AWG Wire, Surface Mounting, NEMA 1 Enclosure, NEMA 3A Enclosure Box, 11-3/8 in H x 11-9/16 in W x 3-3/8 in D Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/GE_TLM812SCUD_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/GE_TLM812SCUD_Specification_Sheet.pdf

• Suitable for use as service entrance equipment when installed in accordance with the national electrical Code®
• 6 to 42 circuit devices UL listed for bottom mounted lug by installing complete unit box, interior and front upside down
• 60 to 70 deg C conductor rating
• Main lug models field convertible to main breaker
• Split neutrals extend the full length of the interior for ease of wiring
• Entire main lug line converts easily to main breaker
• Front packed in inner carton for added protection
• Straight through main wiring
• Compact box maintains optimum wire bending space
• Copper busbar for excellent conductivity
• Top and bottom feed
• 42, 4, 24, 16 - 1/2 in space
• Ground kit for top and bottom entry TGL2 (order separately)
• Optional door for 6 to 8 circuit panel
