PowerMark Gold™ loadcenters lower your costs by making installation faster and easier, increasing application flexibility and reducing inventory requirements. At the same time, they deliver obvious and significant advances in design, function and quality.

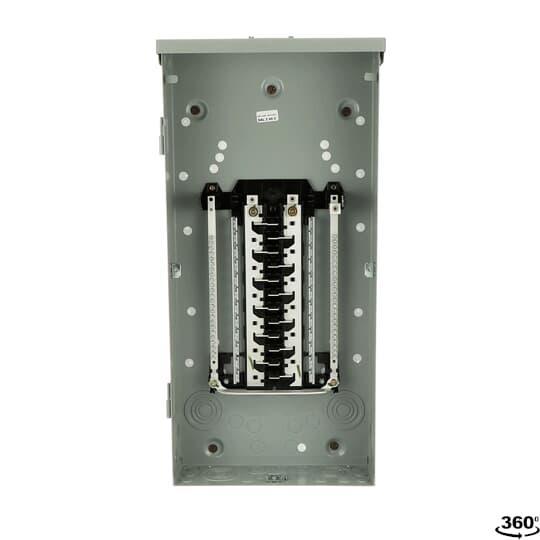

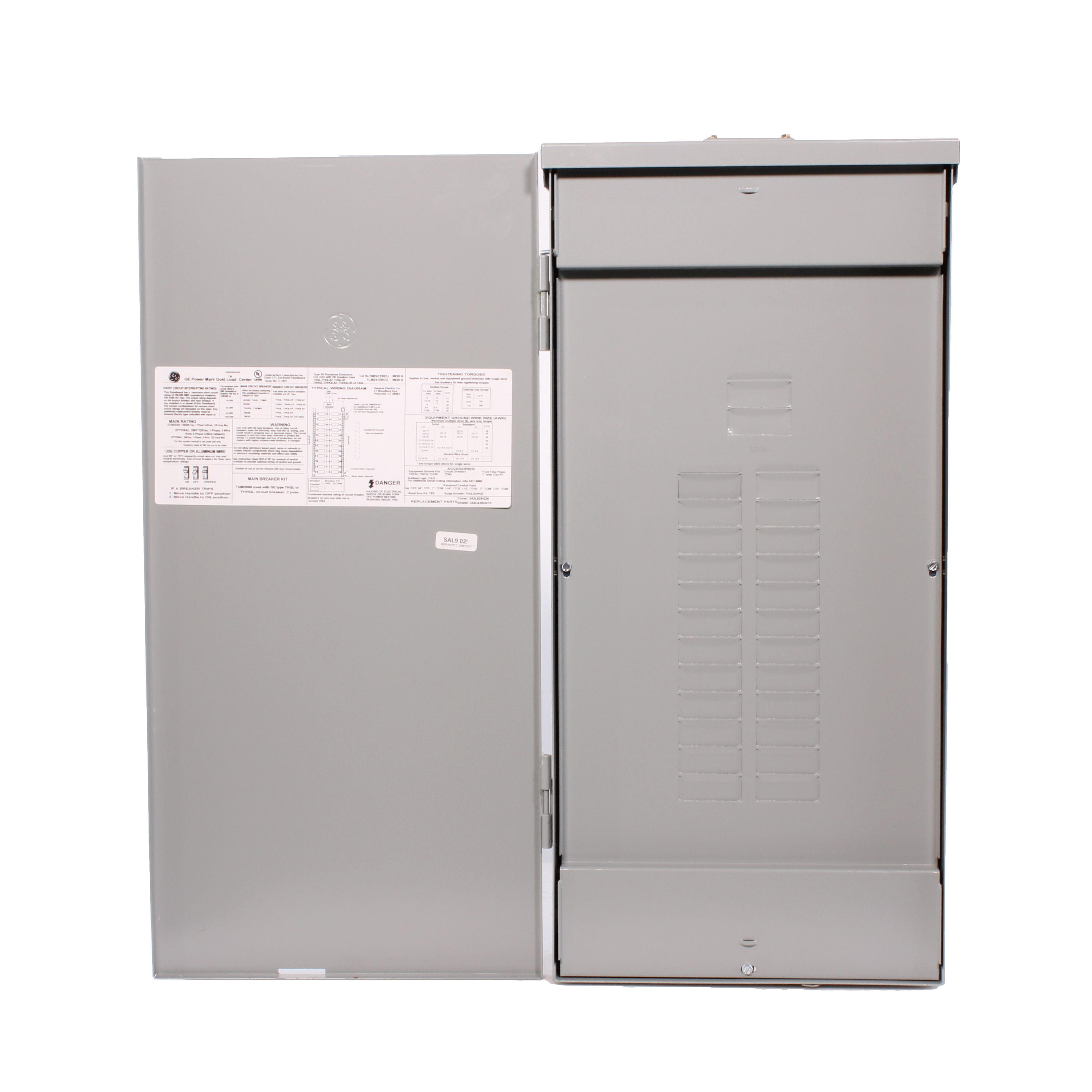

GE PowerMark Gold™ Main Lug Loadcenter, 1-Phase Convertible Standard, 120/240 VAC, 125 A, 1 Pole, 65 kA Interrupt, 24 Circuits, THQL/THHQL/TXQL/TQMH Breaker, 3-Wire Wiring Configuration, 24 Spaces, 6 to 2/0 AWG Wire, Plug-In Mounting, NEMA 3R Enclosure, NEMA R4A Enclosure Box, 30-3/16 in H x 14-11/16 in W x 5-1/4 in D Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/GE_TLM2412RCU_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/GE_TLM2412RCU_Specification_Sheet.pdf

• Suitable for use as service entrance equipment when installed in accordance with the NEC standard
• 6 to 42 circuit devices UL listed for bottom mounted lug by installing complete unit box, interior and front upside down
• 60 to 70 deg C conductor rating
• Main lug models field convertible to main breaker
• Split neutrals extend the full length of the interior for ease of wiring
• Entire main lug line converts easily to main breaker
• Front packed in inner carton for added protection
• Straight through main wiring
• Compact box maintains optimum wire bending space
• Copper busbar for excellent conductivity
• Top, bottom feed
• 42, 24, 12, 16, 20, 40 - 1/2 in space
• Ground kit for top entry TGK24 (order separately)
• Ground kit for bottom entry TGK32 (order separately)
• Panelboards No. 67
• 22kAIC rms symmetrical
• Except where noted 6 to 42-circuit devices UL listed for bottom mounted lugs by installing complete unit (box, interior and front) upside down
