GE TLM2020CCU

GE PowerMark Gold™ TLM2020CCU Type TLM 1-Phase Standard Convertible Main Lug Load Center With Door, 120/240 VAC, 200 A, 65 kA Interrupt

  • MPN: TLM2020CCU

  • IESPN: 15974

  • UPC: 783164112375

  • Min Order Qty: 1

  • Quantity Interval: 1

    • Availability: loading

    • Branch Availability
GE TLM2020CCU

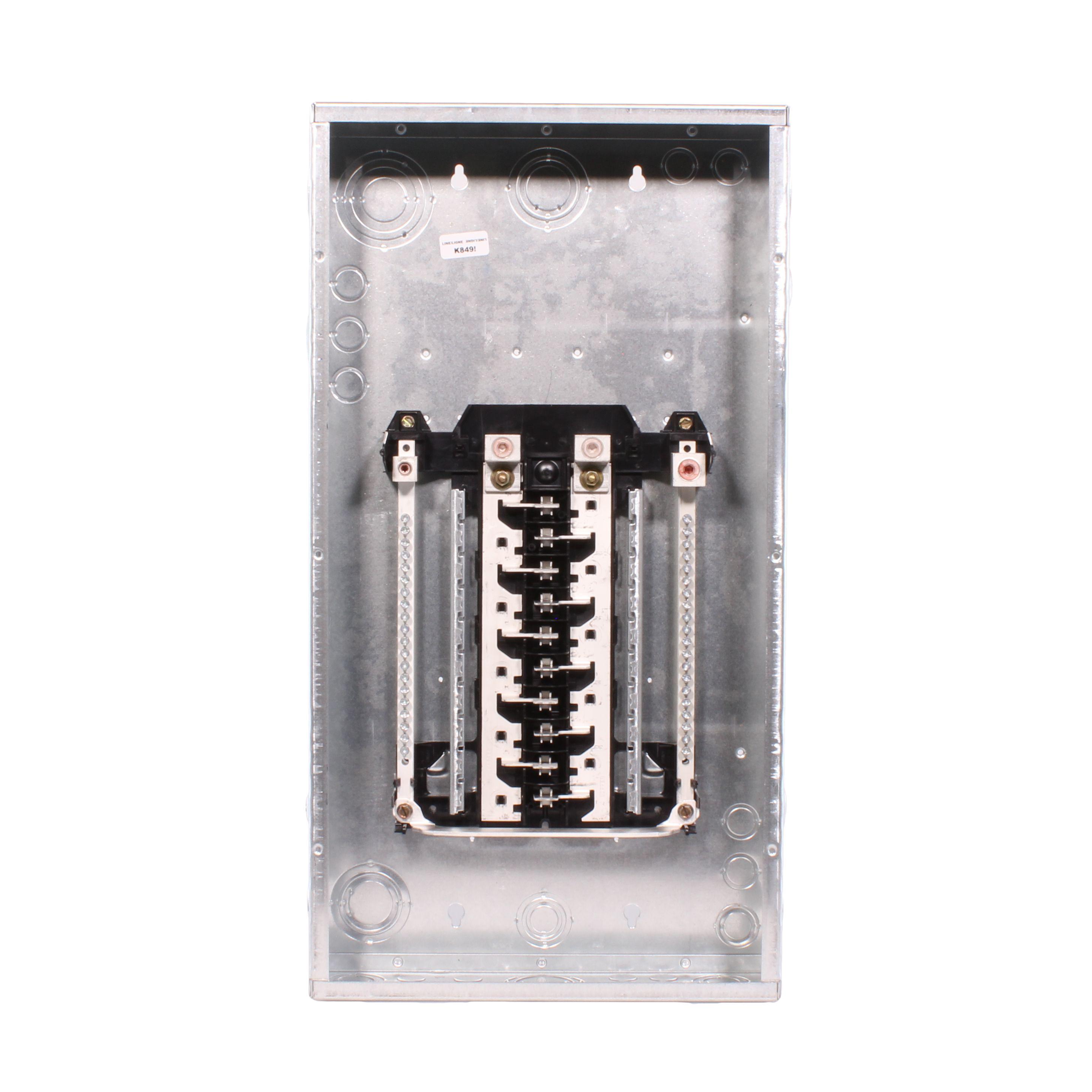

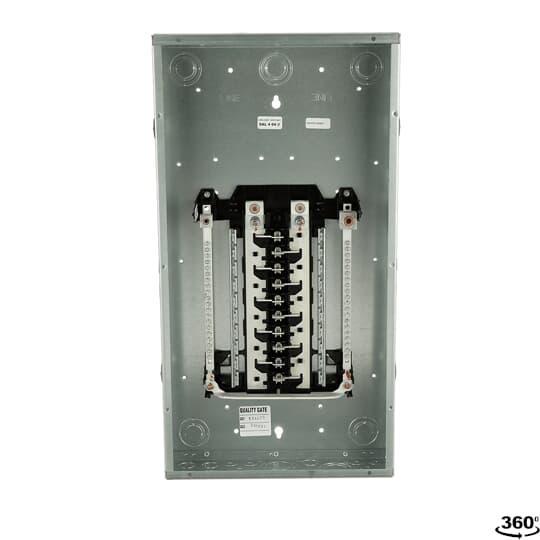

GE PowerMark Gold™ Convertible Main Lug Load Center, Type TLM 1-Phase Standard, 120/240 VAC, 200 A, 65 kA Interrupt, 20 Circuits, THQL/THQP Breaker, Plug-In Breaker Mounting, 3-Wire Wiring Configuration, 200 A Bus Rating, 20 Spaces, 6 AWG to 250 kcmil Al/Cu Wire, Flush Mount, NEMA 1, NEMA 8 Enclosure Box, 28-7/16 in H x 14 in W x 3-3/4 in D

Type      Type TLM 1-Phase Standard
Voltage Rating      120/240 VAC
Amperage Rating      200 A
Interrupt Rating      65 kA
Number of Circuits      20
Breaker Type      THQL/THQP
Breaker Mounting      Plug-In
Wiring Configuration      3-Wire
Bus Rating      200 A
Number of Spaces      20
Wire Size      6 AWG to 250 kcmil Al/Cu
Mounting Type      Flush
Enclosure Type      NEMA 1
Enclosure Box Size      NEMA 8
Dimensions      28-7/16 in H x 14 in W x 3-3/4 in D
  • pdfSpecification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1520587152187.pdf
  • 60/75 deg C conductor rating
  • Suitable for use as service entrance equipment when installed in accordance with the National electrical code
  • 22 kAIC rms symmetrical
  • 6 - 42 circuit devices UL listed for bottom mounted lugs by installing complete unit (box, interior and front) upside down
  • Indoor enclosure
  • 42, 4, 24, 16, 20, 32, 40 - 1/2 in space
  • Top, bottom feed
  • Copper bus bar for excellent conductivity
  • Convertible device
  • Combination mounting
  • Ground kit for top and bottom entry TGK32 (order separately)
