GE TED134045WL

Share Print

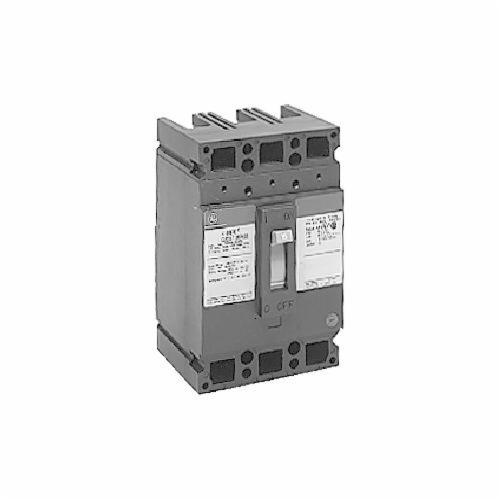

GE TED134045WL Type TED Molded Case Circuit Breaker, 480 VAC/250 VDC, 45 A, 10 to 18 kA, 3 Poles, Long Time/Instantaneous Trip

  • MPN: TED134045WL

  • IESPN: 56991

  • UPC: 783164063073

  • Min Order Qty: 1

  • Quantity Interval: 1

    • Availability: loading

    • Branch Availability
GE TED134045WL

GE Molded Case Circuit Breaker, Type TED, 480 VAC/250 VDC, 45 A, 10 to 18 kA Interrupt, Long Time/Instantaneous Trip, 3 Poles, 3-Phase, Line/Load Lug, 14 to 3 AWG Wire, Bolt-On Mount, 40 deg C, 6-5/16 in H x 4-1/8 in W x 3-3/8 in D

Type      Type TED
Voltage Rating      480 VAC/250 VDC
Amperage Rating      45 A
Interrupt Rating      10 to 18 kA
Trip Type      Long Time/Instantaneous
Number of Poles      3
Phase      3-Phase
Connection Type      Line/Load Lug
Wire Size      14 to 3 AWG
Mounting Type      Bolt-On
Temperature Rating      40 deg C
Dimensions      6-5/16 in H x 4-1/8 in W x 3-3/8 in D
  • pdfSpecification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1520572151134.pdf
  • The WL catalog number suffix indicates that the devices come with Cu/Al line and load lugs
  • Non-interchangeable trip
  • Core E/mid tier
  • 150 A frame
