Eaton's H-Max Series VFD has software and hardware designed specifically for the HVAC, pump industry. The ultra-efficient DC capacitor and power structure allows the drive to consume less energy, lowering greenhouse gases.The I/O configuration is designed with wiring ergonomics in mind by including removable terminal blocks. The main, easily removable, control board used for all drive frames with six digital IN, two analog IN, one analog OUT, three relay OUT accepts two additional I/O or communication board. In addition, the control board has built-in RS-485 and Ethernet communication. These drives continue the tradition of robust performance, and raise the bar on features and functionality, ensuring the best solution at the right price.In addition to the Active Energy Control Algorithm to maximize motor efficiency, the drive boasts an ultra-efficient DC capacitor and power structure to allow less energy consumption, lowering greenhouse gases.

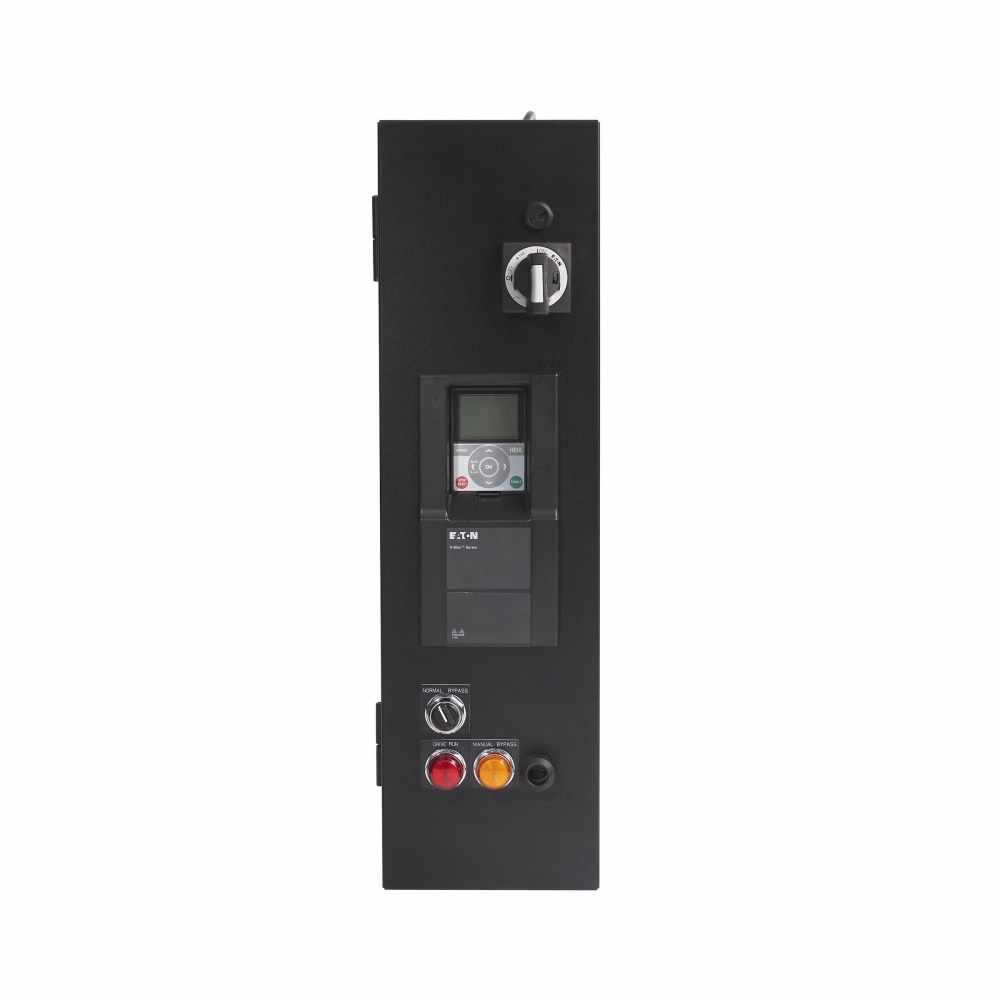

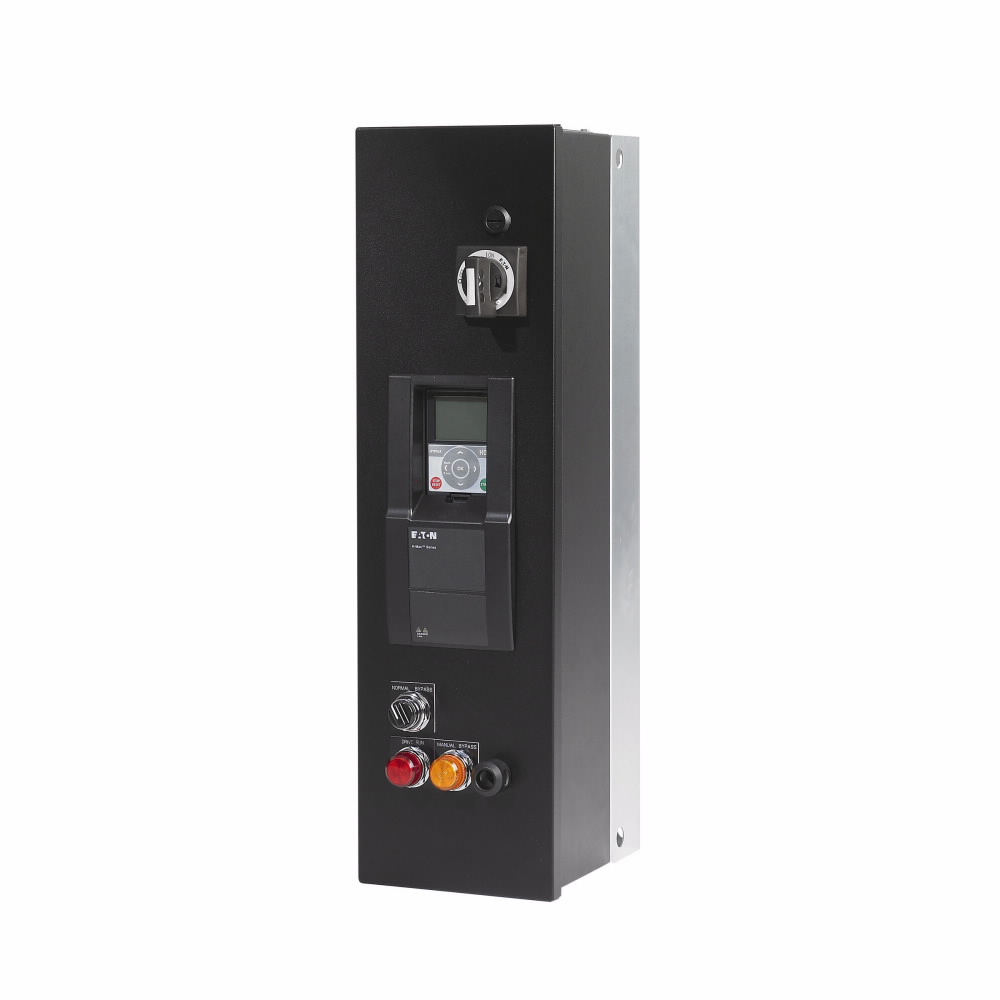

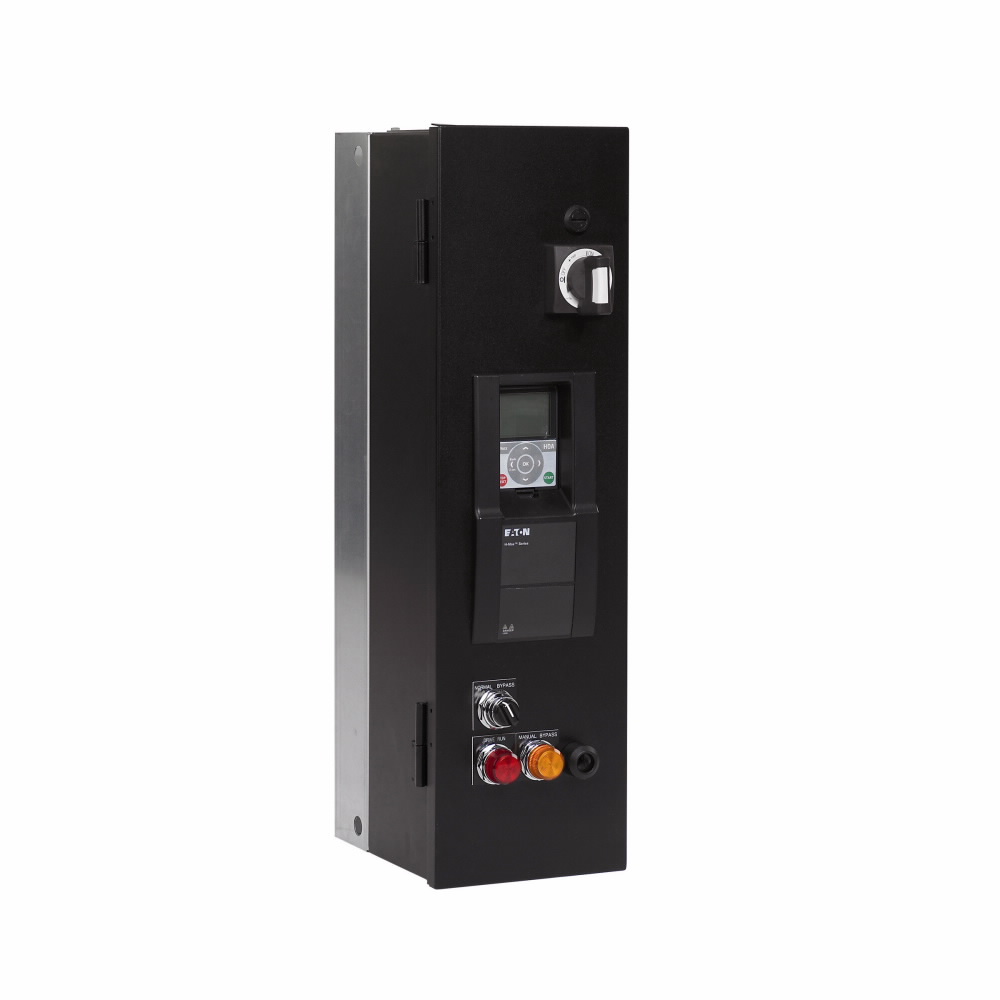

EATON Variable Frequency Drive, 3-Phase Type 1, Series: H-Max™, 380/480 VAC, 3.4 A, 1-1/2 hp, 5.04 in Width, 7.77 in Depth, 12.89 in Height, NEMA 1/IP21/Open Enclosure, LED Display

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/HVX060A1_4A1N1B5C4_Catalog.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/HVX060A1_4A1N1B5C4_Catalog.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/HMX32AG3D721_N_Installation_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/HMX32AG3D721_N_Installation_Manual.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/HVX060A1_4A1N1B5C4_User_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/HVX060A1_4A1N1B5C4_User_Manual.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/HMX34AG3D421_N_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/HMX34AG3D421_N_Specification_Sheet.pdf

• Graphical panel all boards are varnished, corrosion-resistant, battery included in all drives for real time clock, keypad kit includes HOA bypass, keypad kit includes HOA, back reset for Europe application, EMI/RFI filters included DC link choke included
• A software series
• EMC C2 input option
• No brake chopper
• 4 frame
• Warranty eaton selling policy 25000, 1 year from the date of installation of the product or 18 months from the date of shipment of the product, whichever occurs first
